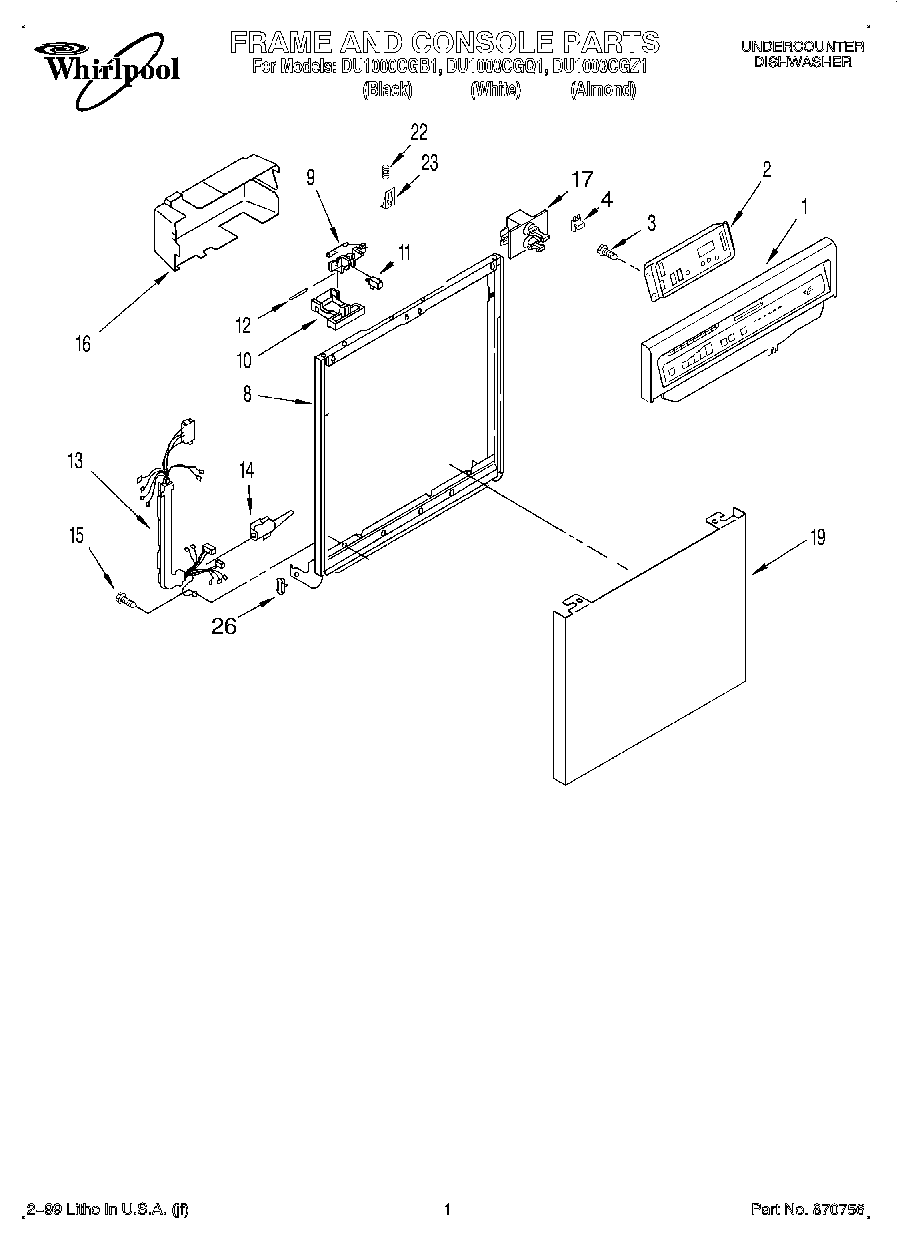

DU1000CGZ1 01 – FRAME AND CONSOLEadmin2025-04-26T12:10:50+00:00DU1000CGZ1 01 – FRAME AND CONSOLE
Products
| Position | Product |
|---|
| 1 | Console, Complete (Includes Active Overlay & Insert) (White) |
| 1 | Console, Complete (Includes Active Overlay & Insert) (Almond) |
| 1 | Console, Complete (Includes Active Overlay & Insert) (Black) |
| 2 | Control, Electronic |
| 3 | WP304231 Whirlpool Dishwasher Screw |
| 4 | 675813 Whirlpool Thermal Fuse Kit |
| 8 | WP9743028 Whirlpool Dishwasher Frame |
| 9 | Latch Asm. |
| 10 | Lever, Latch |
| 10 | Lever, Latch (Almond) |
| 10 | Lever, Latch White |
| 11 | Shield, Switch |
| 12 | Pin, Switch (2) |
| 13 | Harness and Protector |
| 14 | 3376405 Whirlpool Dishwasher Elbow |
| 15 | WP488234 Whirlpool Air Conditioner Screw |
| 16 | Cover, Timer |
| 17 | Motor, Dual |
| 19 | Panel Front (Almond Model) |
| 19 | Panel Front (White Model) |
| 19 | Panel Front (Black Model) |
| 23 | 675782 Whirlpool Dishwasher Catch |
| 26 | WP3373234 Whirlpool Dishwasher Bearing |
