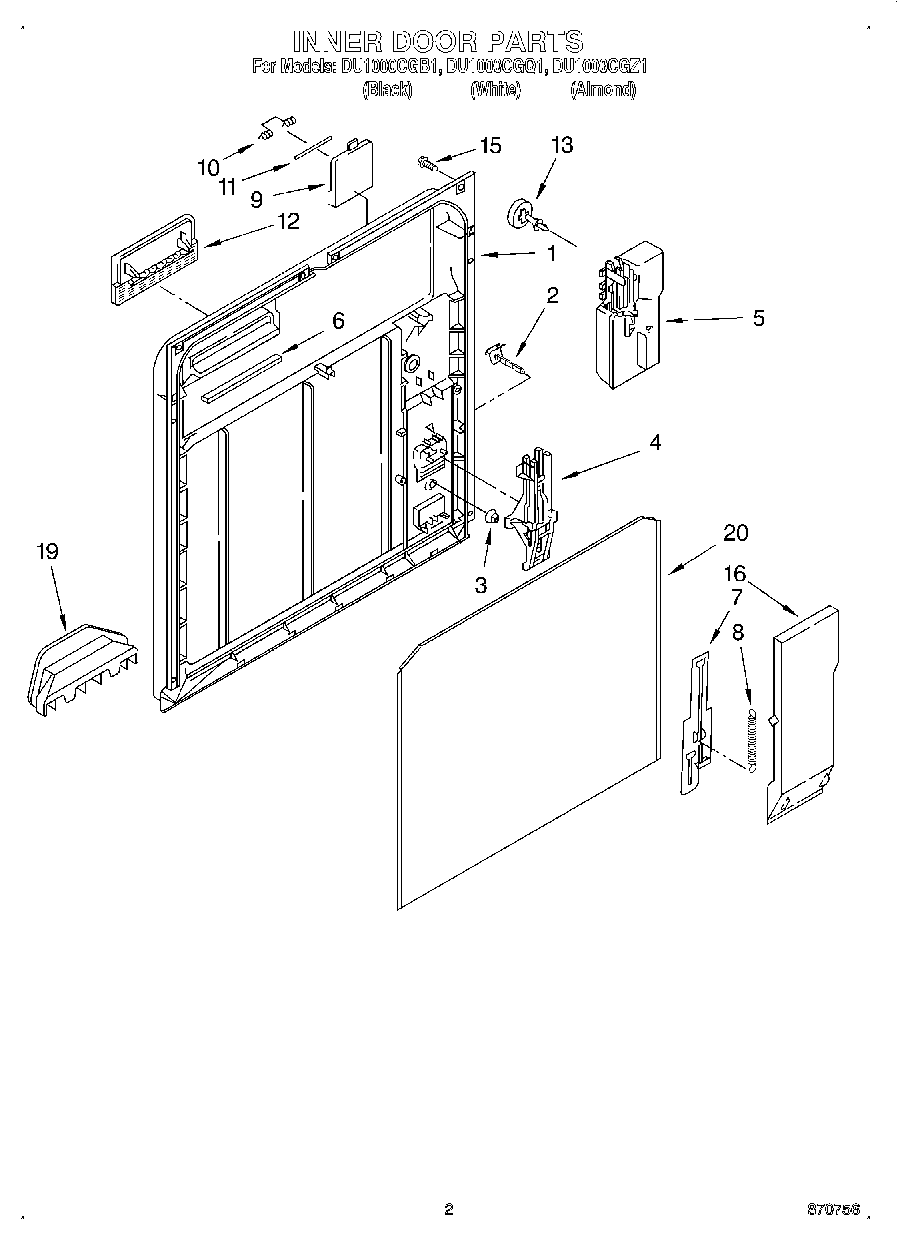

DU1000CGZ1 02 – INNER DOOR

Products

Position	Product
1	Door, Inner
3	LATCH KIT
4	WP3369505 Whirlpool Dishwasher Actuator
5	WP8052028 Whirlpool Dishwasher Dispenser
6	WP3379673 Whirlpool Dishwasher Seal
7	DRAW BAR (LOWER DISPENSER)
8	WP3368999 Whirlpool Dishwasher Spring
9	WP3378138 Whirlpool Cover Assembly
10	WP8066018 Whirlpool Spring Assembly
11	WP3372028 Whirlpool Hinge Pin
12	WP3371710 Whirlpool Dishwasher Screen
13	WP3378134 Whirlpool Dishwasher Cap
15	WPW10348413 Whirlpool Dishwasher Screw
16	Cover, Drip
19	WP3379674 Whirlpool Dishwasher Vent Assembly
20	Absorber, Sound
