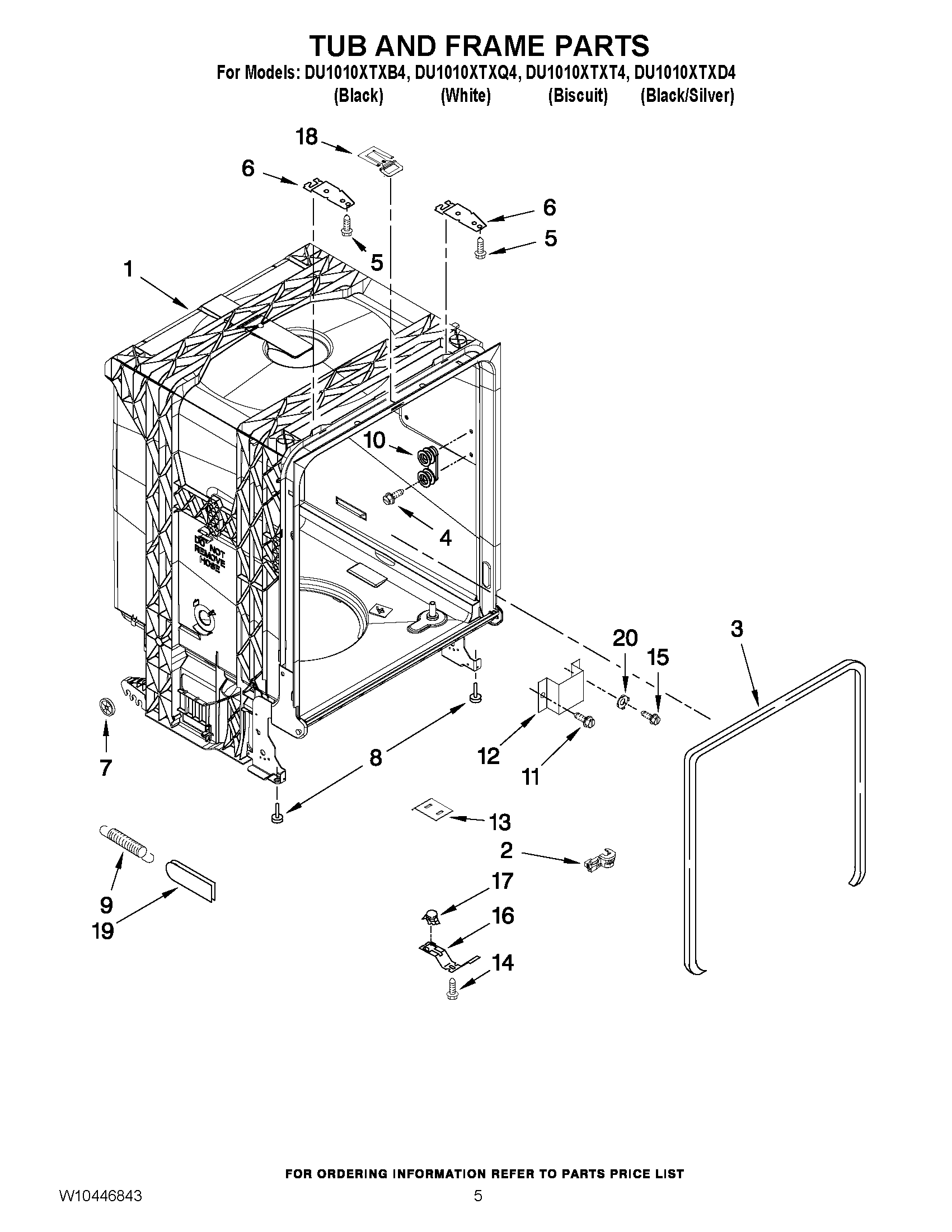

DU1010XTXB4 05 – TUB AND FRAME PARTS

Products

Position	Product
1	W10413848 Whirlpool Dishwasher Tub
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4	WPW10545278 Whirlpool Drain Hose
5	WP308685 Whirlpool Microwave Screw
6	WP8269145 Whirlpool Dishwasher Mounting Bracket
7	WP8269831 Whirlpool Dishwasher Wheel
8	8193716 Whirlpool Leveling Leg
9	WPW10337934 Whirlpool Spring Assembly
10	WP8270016 Whirlpool Dishwasher Tub Wheel
11	WP3400892 Whirlpool Dishwasher Screw
12	WP8268991 Whirlpool Dishwasher Cover Assembly
13	W10321574 Whirlpool Dishwasher Shield
14	WP304231 Whirlpool Dishwasher Screw
15	WP3400014 Whirlpool Dishwasher Screw
16	W10539489 Whirlpool Dishwasher Bracket-Stat
17	WP661566 Whirlpool High Limit Thermostat
18	WP8580309 Whirlpool Dishwasher Strike
19	WP8268990 Whirlpool Dishwasher Door Spring Bushing
20	WP3378128 Whirlpool Dishwasher Washer
