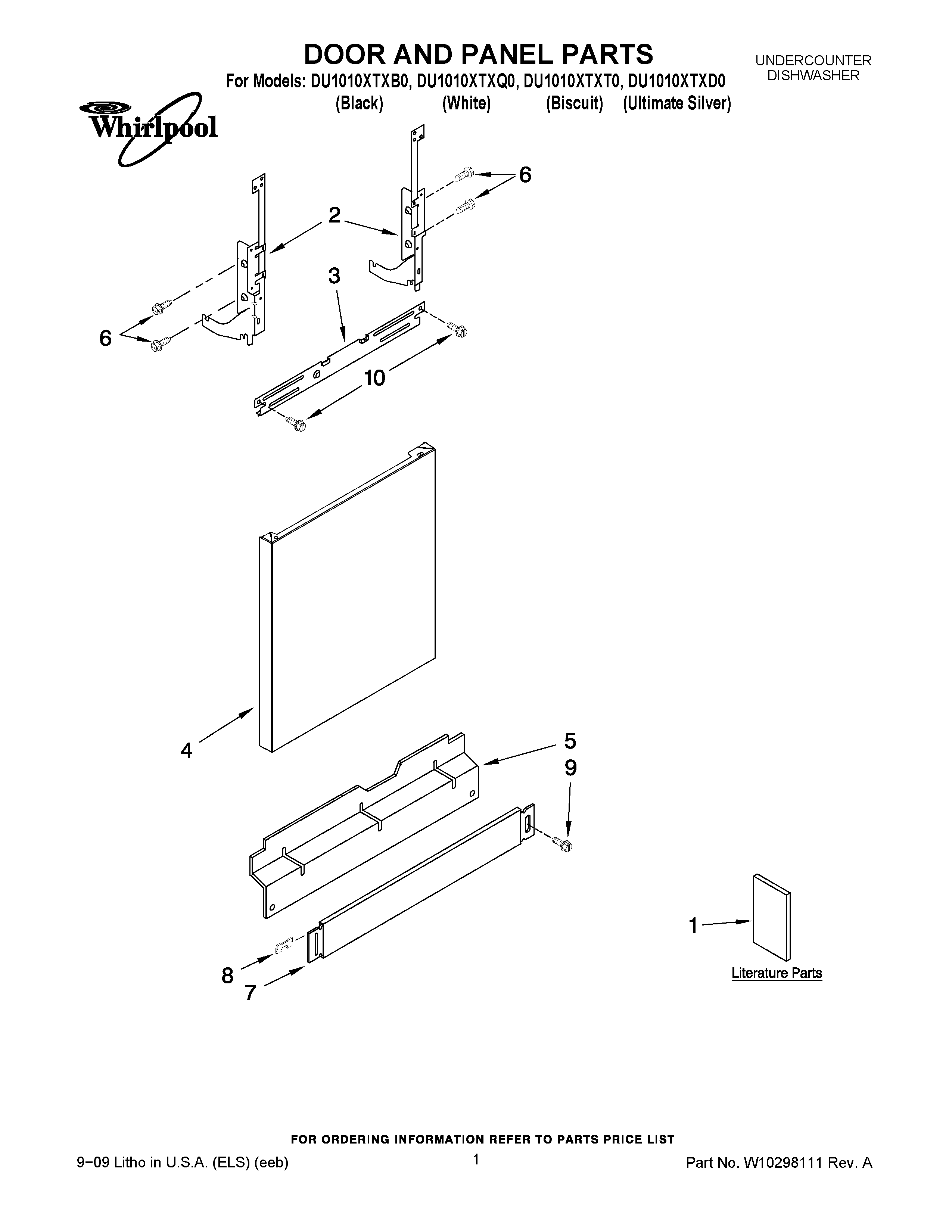

DU1010XTXD0 01 – DOOR AND PANEL PARTS

DU1010XTXD0 01 – DOOR AND PANEL PARTS

Written by

in

DU1010XTXD0 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
1TECH SHEET ENGLISH/FRENCH
1Instructions, Installation
1GUIDE, USE & CARE (SPANISH)
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4PANEL FRONT (WHITE)
4PANEL FRONT (BLACK)
4PANEL FRONT (ULTIMATE SILVER)
4PANEL FRONT (BISCUIT)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6WPW10109200 Whirlpool Screw
7Toe Panel (Biscuit)
7WP8573287 Whirlpool Dishwasher Toe Panel
8WP8269016 Whirlpool Clip Assembly
9WPW10503550 Whirlpool Dishwasher Retainer
9WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP302868 Whirlpool Screw
10SCREW
