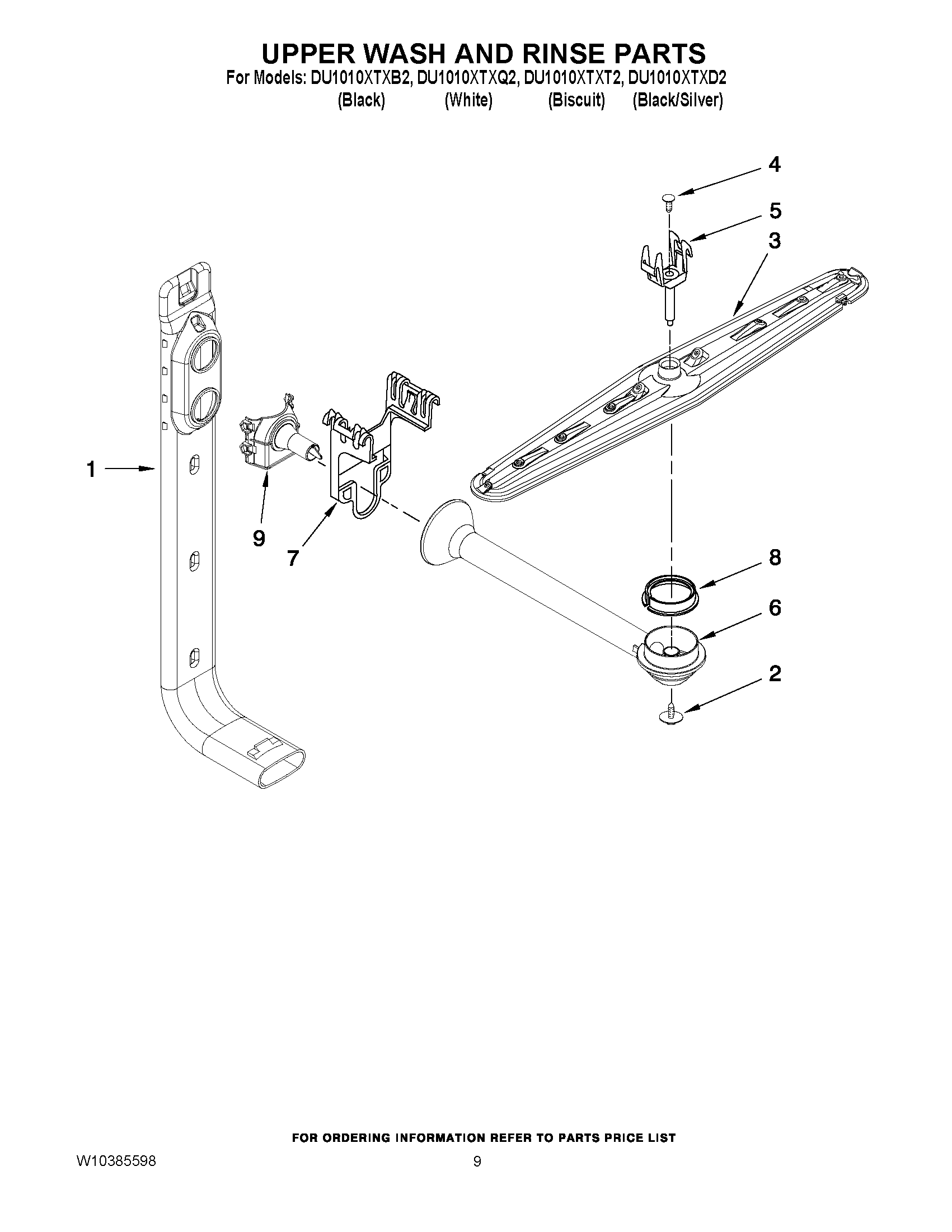

DU1010XTXD2 07 – UPPER WASH AND RINSE PARTS

DU1010XTXD2 07 – UPPER WASH AND RINSE PARTS

Written by

in

DU1010XTXD2 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1W10254531 Whirlpool Dishwasher Feed Tube
2WPW10349488 Whirlpool Screw
3WP8535083 Whirlpool Dishwasher Spray Arm
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP3385159 Whirlpool Dishwasher Mount
6WPW10258149 Whirlpool Dishwasher Manifold
7WP3385160 Whirlpool Dishwasher Holder
8WP8268433 Whirlpool Seal Assembly
9Nozzle
