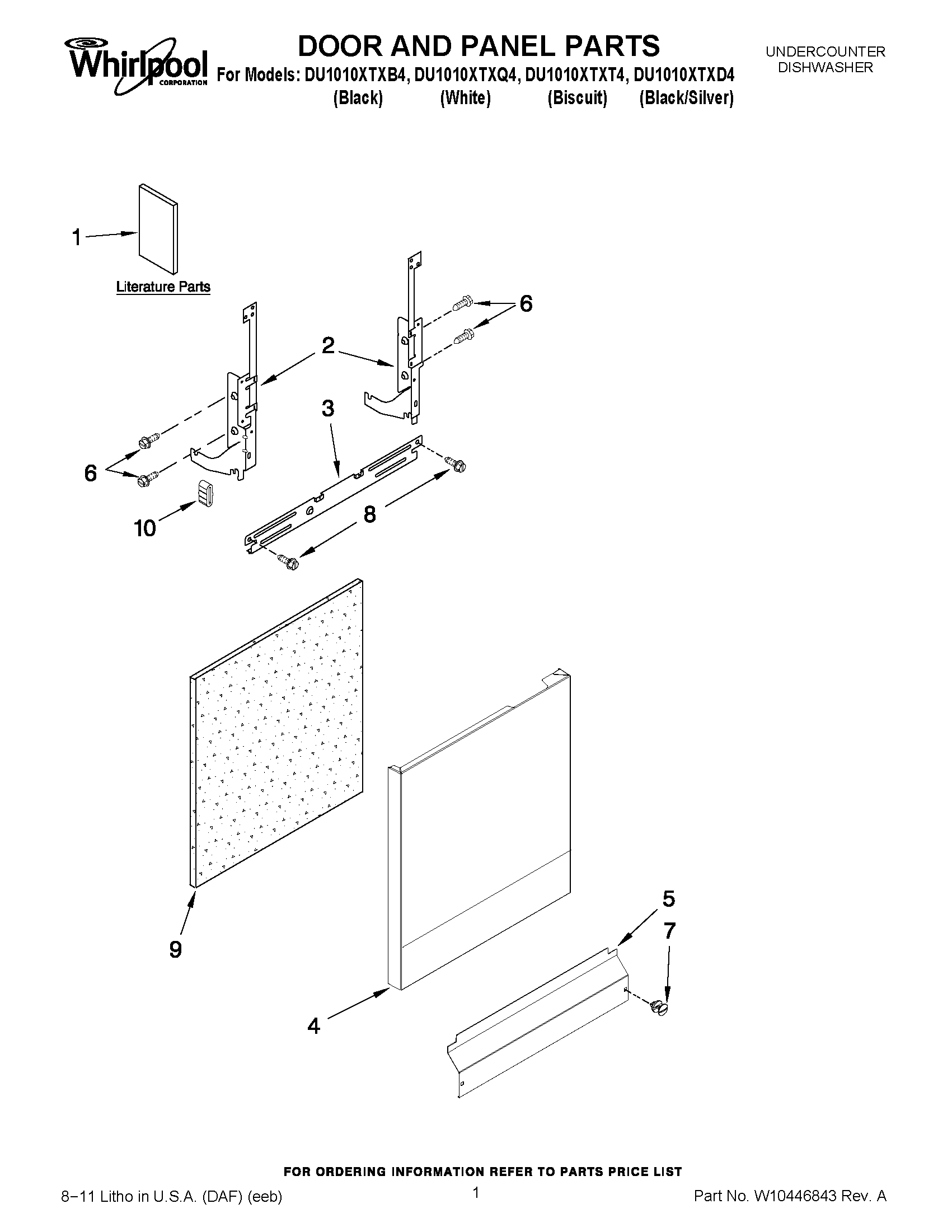

DU1010XTXD4 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	INSTRUCTIONS, INSTALLATION
1	ENERGY GUIDE
1	TECH SHEET, (FRENCH)
1	TECH SHEET (ENGLISH)
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10274890 Whirlpool Dishwasher Panel
4	PANEL FRONT (WHITE)
4	W10274892 Whirlpool Dishwasher Panel
4	PANEL FRONT (UNIVERSAL SILVER)
5	ACCESS PANEL (BISCUIT)
5	WPW10441007 Whirlpool Dishwasher Panel
5	PANEL
6	WPW10109200 Whirlpool Screw
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
7	WPW10503550 Whirlpool Dishwasher Retainer
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
8	SCREW
9	WPW10073520 Whirlpool Dishwasher Insulation Pad
10	WP8268961 Whirlpool Friction Pad
