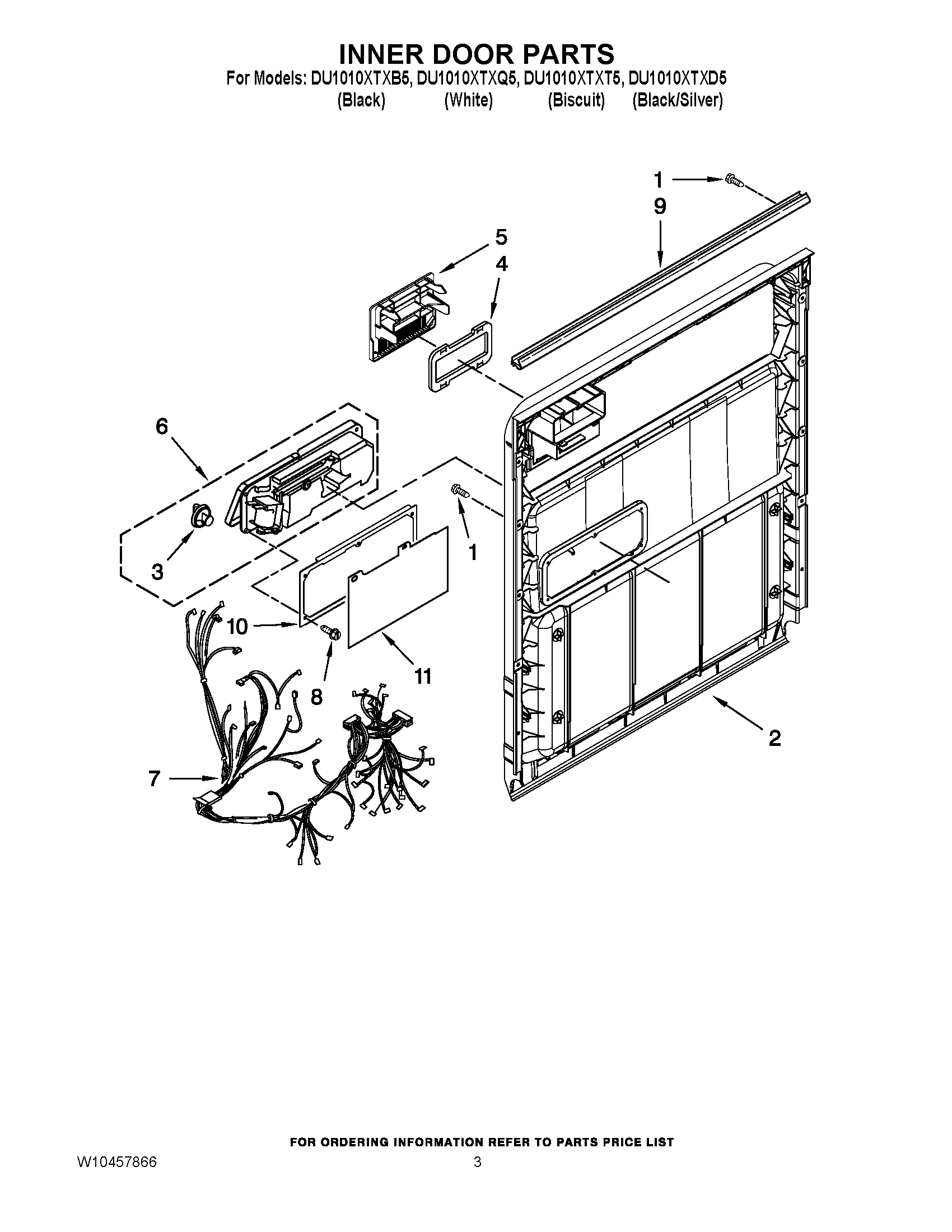

DU1010XTXD5 03 – INNER DOOR PARTS

Products

Position	Product
1	WPW10348413 Whirlpool Dishwasher Screw
2	WPW10254547 Whirlpool Dishwasher Inner Door
3	WP8533380 Whirlpool Dishwasher Cap
4	WPW10254545 Whirlpool Dishwasher Gasket
5	WPW10254548 Whirlpool Dishwasher Deflector
6	WPW10224430 Whirlpool Dishwasher Detergent Dispenser
7	WPW10416609 Whirlpool Dishwasher Wire Harness
8	WPW10177098 Whirlpool Dishwasher Screw
9	WP8269296 Whirlpool Dishwasher Seal
10	WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11	W10385977 Whirlpool Dishwasher Cover Assembly
