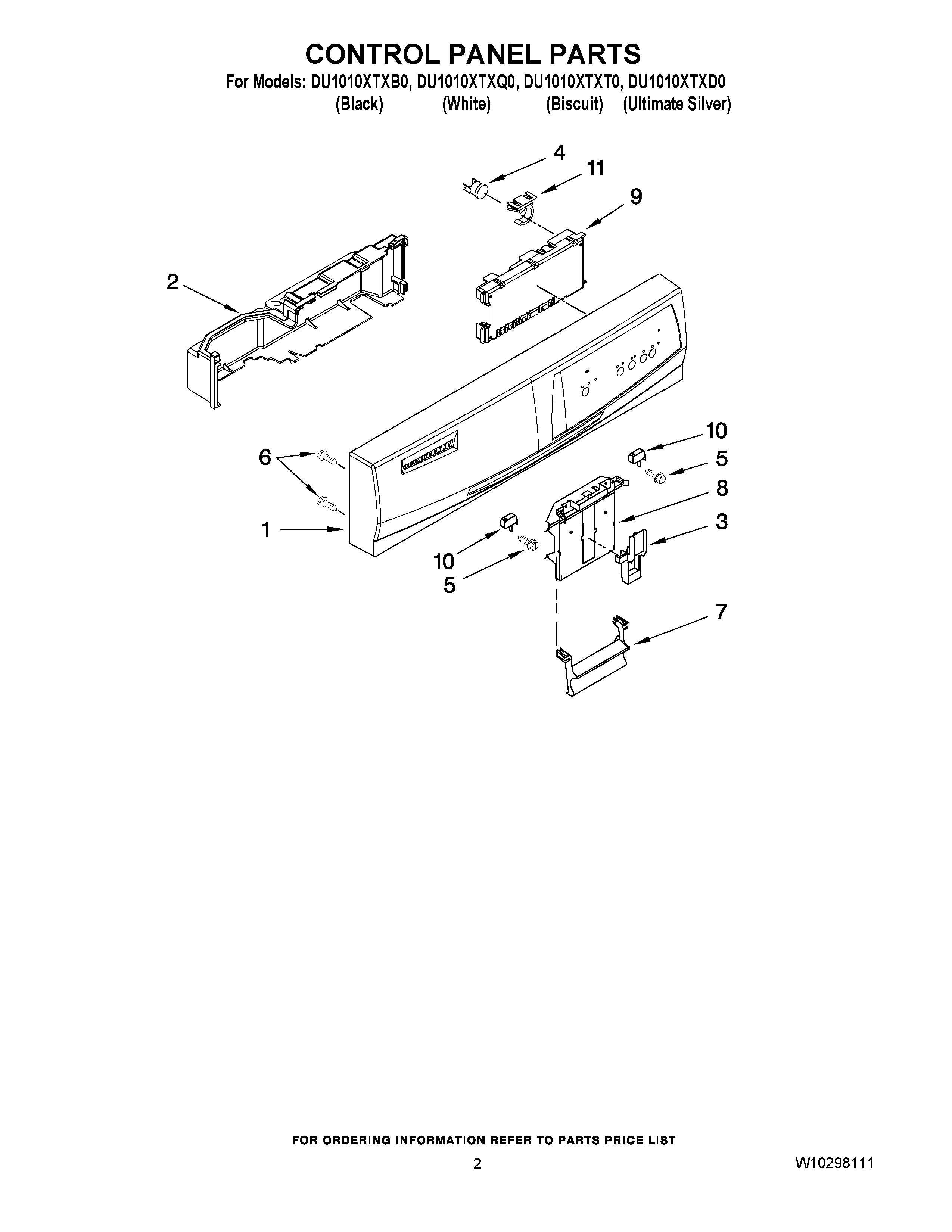

DU1010XTXQ0 02 – CONTROL PANEL PARTS

DU1010XTXQ0 02 – CONTROL PANEL PARTS

Written by

in

DU1010XTXQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
2Cover Control Shield Assembly
3WP8524472 Whirlpool Dishwasher Door Latch Actuator
4W10258275 Whirlpool Dishwasher Bimetal Fuse
5WP3400412 Whirlpool Dishwasher Screw
6WPW10348413 Whirlpool Dishwasher Screw
7WP8534984 Whirlpool Dishwasher Handle
7WP8534985 Whirlpool Dishwasher Handle
78534986 Whirlpool Dishwasher Handle
88193882 Whirlpool Dishwasher Primary Latch Bolt
9W11202742 Whirlpool Dishwasher Electronic Control Board
10WP8269209 Whirlpool Door Switch
11Clip, BI-Metal
