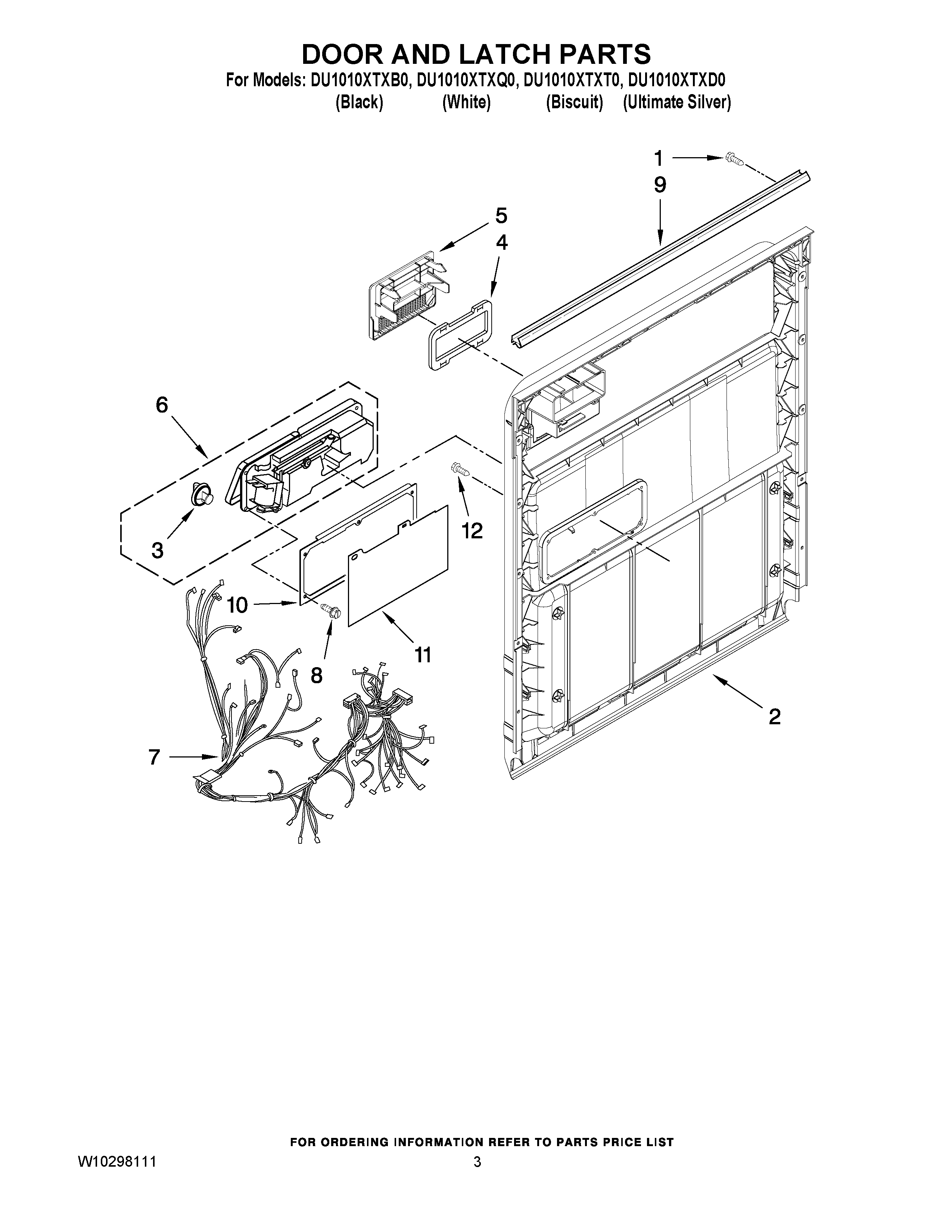

DU1010XTXT0 03 – DOOR AND LATCH PARTS

DU1010XTXT0 03 – DOOR AND LATCH PARTS

Written by

in

DU1010XTXT0 03 – DOOR AND LATCH PARTS

Products

PositionProduct
2WPW10254547 Whirlpool Dishwasher Inner Door
3WP8533380 Whirlpool Dishwasher Cap
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224430 Whirlpool Dishwasher Detergent Dispenser
7WIRING HARNESS MAIN
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WP8531865 Whirlpool Dishwasher Door Shield
12WPW10348413 Whirlpool Dishwasher Screw
