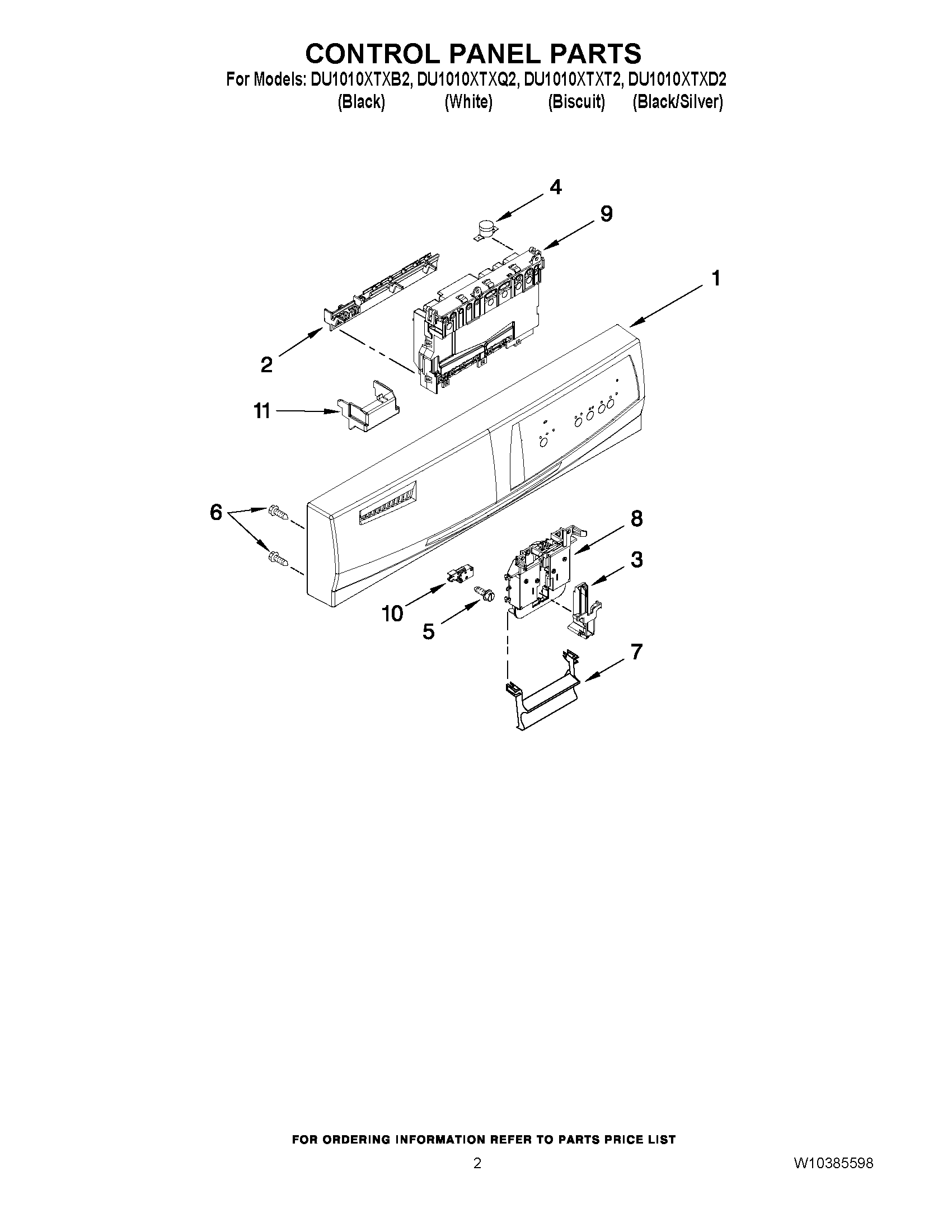

DU1010XTXT2 02 – CONTROL PANEL PARTS

DU1010XTXT2 02 – CONTROL PANEL PARTS

Written by

in

DU1010XTXT2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1WPW10290156 Whirlpool Dishwasher Control Panel
2WPW10372484 Whirlpool Dishwasher Brace
3WP8524472 Whirlpool Dishwasher Door Latch Actuator
4W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
5WP3400412 Whirlpool Dishwasher Screw
6WPW10348413 Whirlpool Dishwasher Screw
7WP8534985 Whirlpool Dishwasher Handle
7WP8534984 Whirlpool Dishwasher Handle
78534986 Whirlpool Dishwasher Handle
8BOLT-LATCH
9CONTROL, ELECTRONIC
10WPW10274880 Whirlpool Switch
11W10325295 Whirlpool Connector
