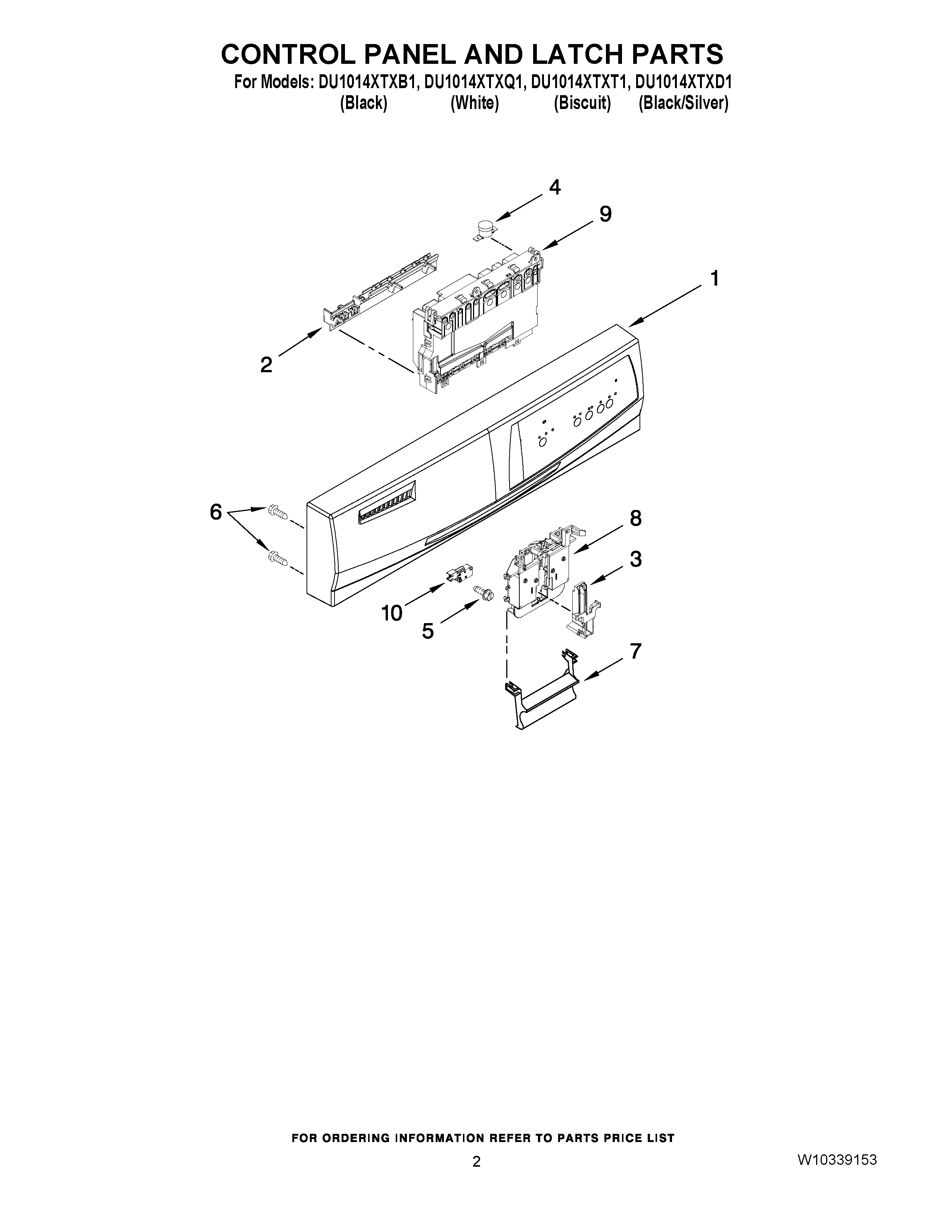

DU1014XTXB1 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1	WPW10290156 Whirlpool Dishwasher Control Panel
2	WPW10372484 Whirlpool Dishwasher Brace
3	WP8524472 Whirlpool Dishwasher Door Latch Actuator
4	W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
5	WP3400412 Whirlpool Dishwasher Screw
6	WPW10348413 Whirlpool Dishwasher Screw
7	WP8534984 Whirlpool Dishwasher Handle
7	WP8534985 Whirlpool Dishwasher Handle
7	8534986 Whirlpool Dishwasher Handle
8	BOLT-LATCH
9	CONTROL, ELECTRONIC
10	WPW10274880 Whirlpool Switch
