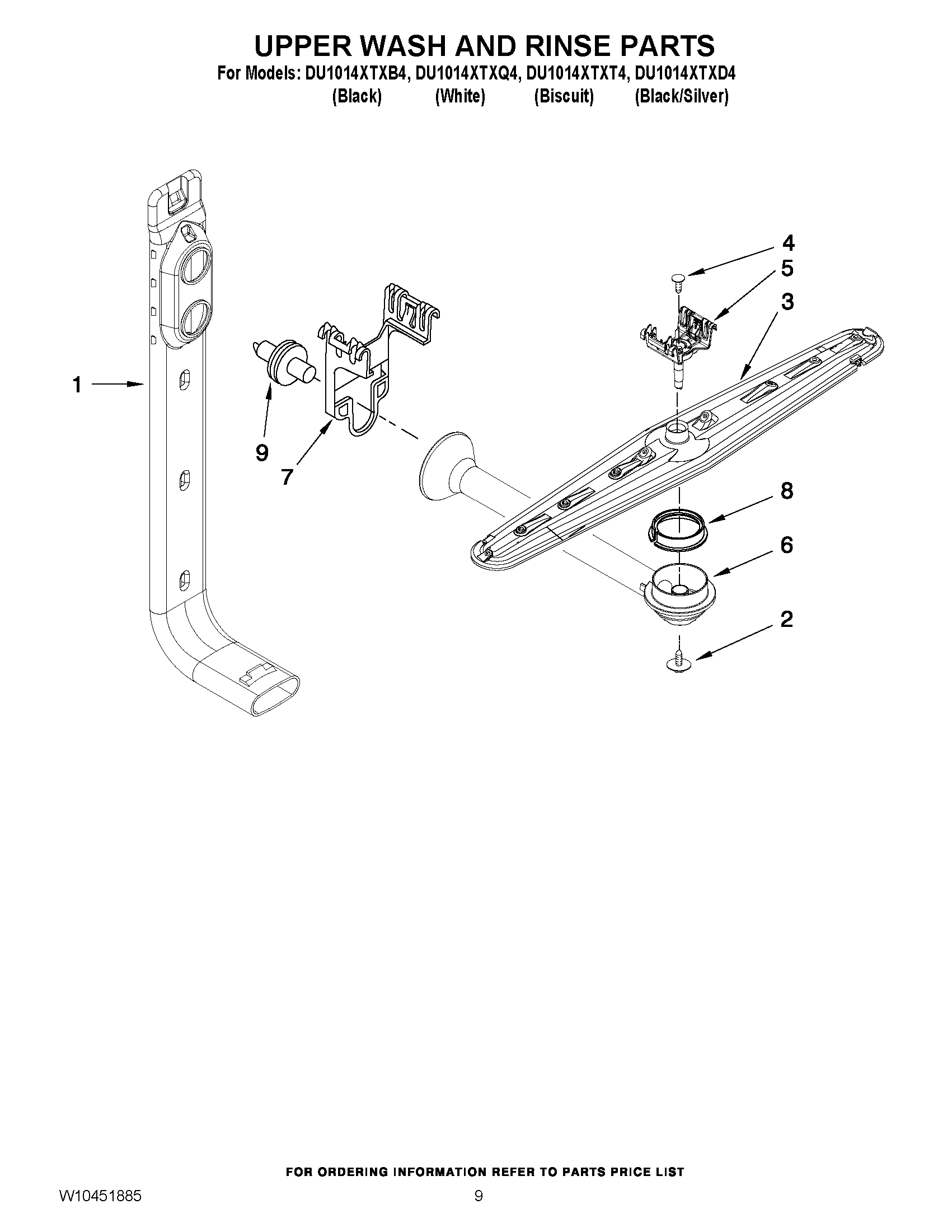

DU1014XTXD4 07 – UPPER WASH AND RINSE PARTS

DU1014XTXD4 07 – UPPER WASH AND RINSE PARTS

Written by

in

DU1014XTXD4 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1FEED TUBE ASSEMBLY
2WPW10349488 Whirlpool Screw
3WP8269024 Whirlpool Dishwasher Spray Arm
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP8268321 Whirlpool Dishwasher Mount
6WPW10258150 Whirlpool Dishwasher Manifold
7Holder, Feed Tube
8WP8268433 Whirlpool Seal Assembly
9WPW10082831 Whirlpool Dishwasher Probe
