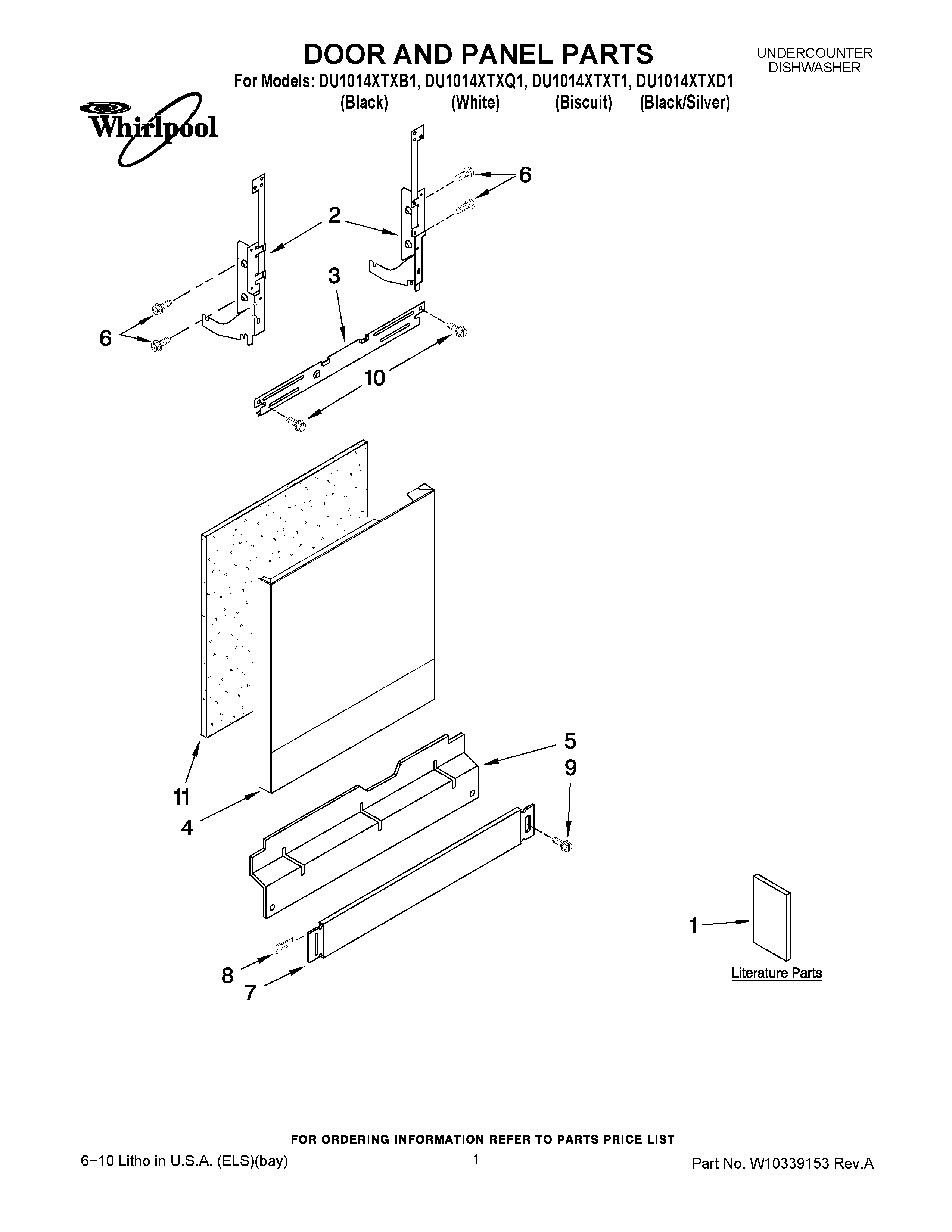

DU1014XTXQ1 01 – DOOR AND PANEL PARTS

DU1014XTXQ1 01 – DOOR AND PANEL PARTS

Written by

in

DU1014XTXQ1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1TECH SHEET (ENGLISH)
1GUIDE, USE & CARE (SPANISH)
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1ENERGY GUIDE
1Instructions, Installation
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4WPW10274890 Whirlpool Dishwasher Panel
4W10274892 Whirlpool Dishwasher Panel
4PANEL FRONT (WHITE)
4PANEL FRONT (UNIVERSAL SILVER)
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
5ACCESS PANEL (BLACK)
6WPW10109200 Whirlpool Screw
7W10909064 Whirlpool Dishwasher Black Access Panel
7Toe Panel (Biscuit)
7WP8573287 Whirlpool Dishwasher Toe Panel
8WP8269016 Whirlpool Clip Assembly
9WPW10503550 Whirlpool Dishwasher Retainer
9WPW10503549 Whirlpool Dishwasher Retainer Clip
9WP302868 Whirlpool Screw
10SCREW
11WPW10073520 Whirlpool Dishwasher Insulation Pad
