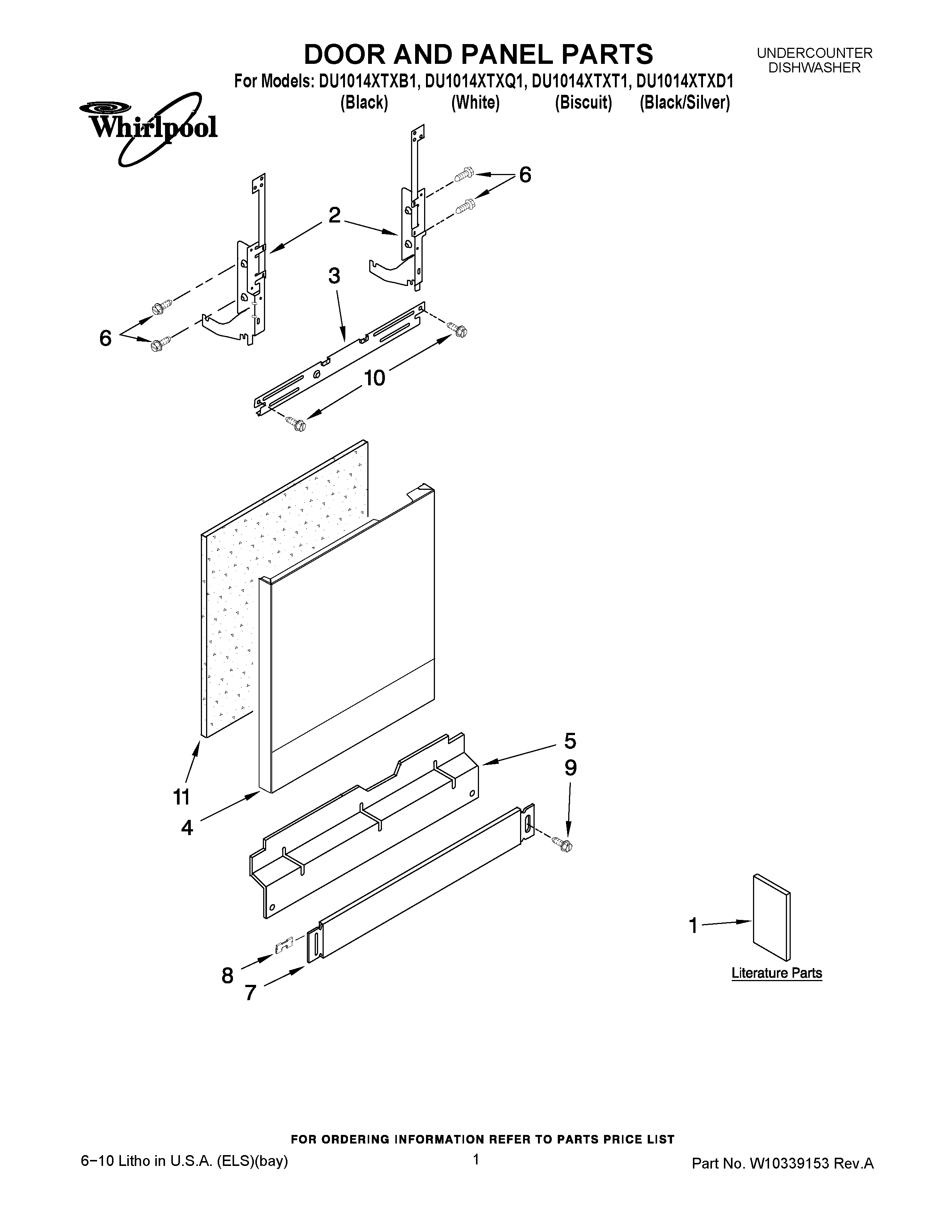

DU1014XTXT1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	TECH SHEET (ENGLISH)
1	GUIDE, USE & CARE (SPANISH)
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
1	ENERGY GUIDE
1	Instructions, Installation
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	WPW10274890 Whirlpool Dishwasher Panel
4	W10274892 Whirlpool Dishwasher Panel
4	PANEL FRONT (WHITE)
4	PANEL FRONT (UNIVERSAL SILVER)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
5	ACCESS PANEL (BLACK)
6	WPW10109200 Whirlpool Screw
7	W10909064 Whirlpool Dishwasher Black Access Panel
7	Toe Panel (Biscuit)
7	WP8573287 Whirlpool Dishwasher Toe Panel
8	WP8269016 Whirlpool Clip Assembly
9	WPW10503550 Whirlpool Dishwasher Retainer
9	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WP302868 Whirlpool Screw
10	SCREW
11	WPW10073520 Whirlpool Dishwasher Insulation Pad
