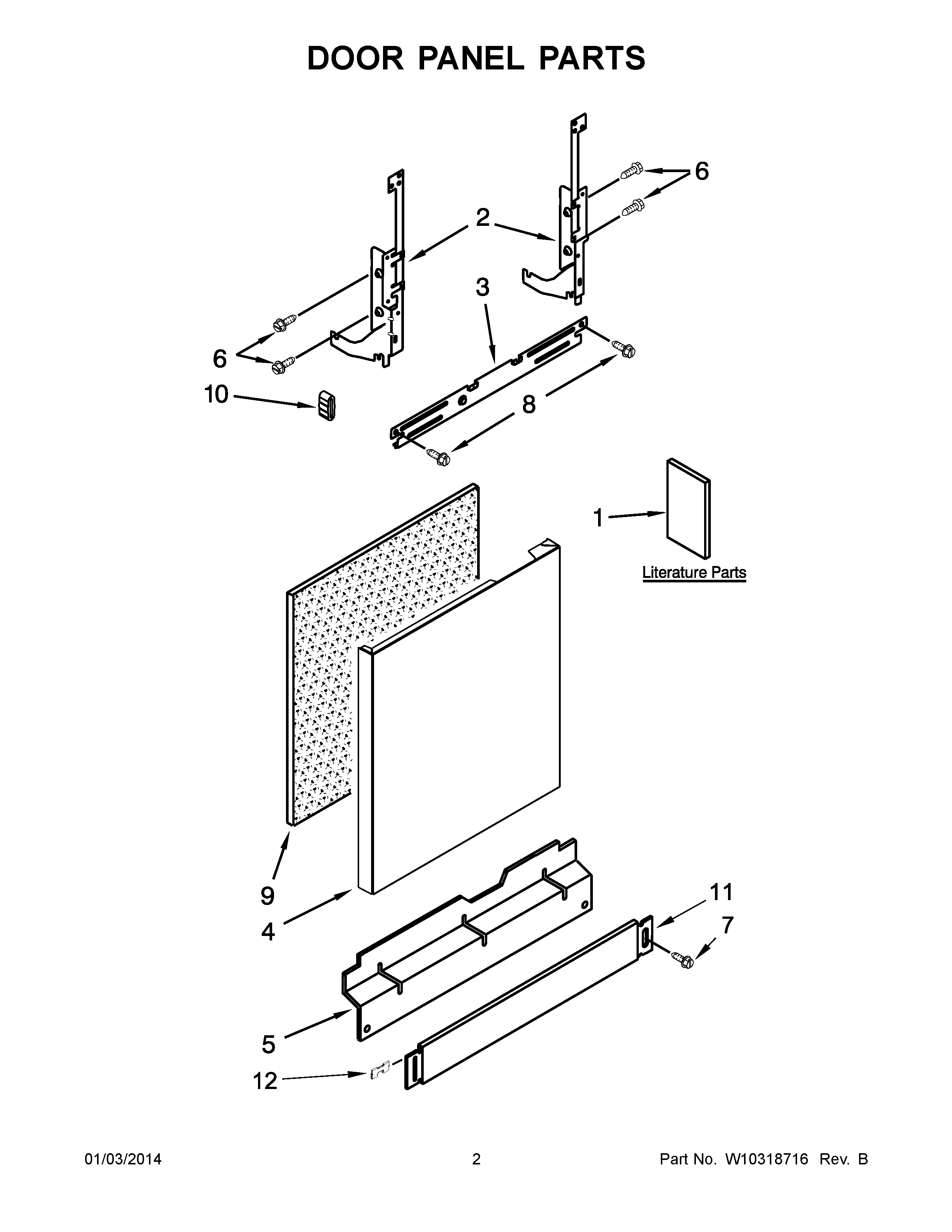

DU1015XTXB1 02 – DOOR PANEL PARTS

Products

Position	Product
1	Instructions, Installation
1	TECH SHEET (FRENCH)
1	TECH SHEET (ENGLISH)
1	ENERGY GUIDE
1	GUIDE, USE & CARE (ENGLISH/FRENCH)
1	GUIDE, USE & CARE (SPANISH)
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10274892 Whirlpool Dishwasher Panel
4	WPW10274890 Whirlpool Dishwasher Panel
4	PANEL FRONT (WHITE)
4	PANEL FRONT (UNIVERSAL SILVER)
4	PANEL FRONT (STAINLESS)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WPW10109200 Whirlpool Screw
7	WP302868 Whirlpool Screw
7	WPW10503550 Whirlpool Dishwasher Retainer
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	SCREW
9	WPW10073520 Whirlpool Dishwasher Insulation Pad
10	WP8268961 Whirlpool Friction Pad
11	W10909064 Whirlpool Dishwasher Black Access Panel
11	Toe Panel (Biscuit)
11	WP8573287 Whirlpool Dishwasher Toe Panel
12	WP8269016 Whirlpool Clip Assembly
