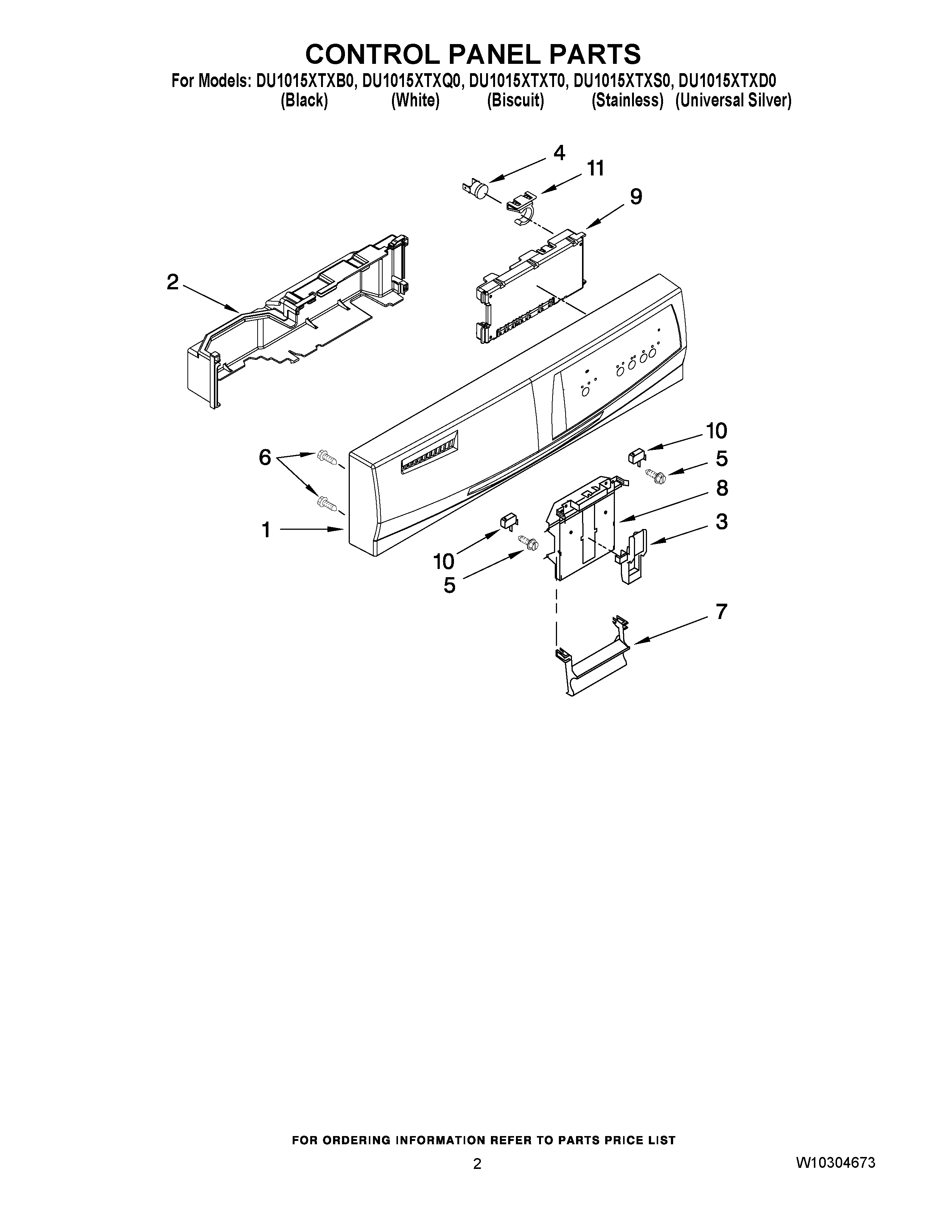

DU1015XTXS0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1	CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
2	Cover Control Shield Assembly
3	WP8524472 Whirlpool Dishwasher Door Latch Actuator
4	W10258275 Whirlpool Dishwasher Bimetal Fuse
5	WP3400412 Whirlpool Dishwasher Screw
6	WPW10348413 Whirlpool Dishwasher Screw
7	WP8534984 Whirlpool Dishwasher Handle
7	WP8534985 Whirlpool Dishwasher Handle
7	8534986 Whirlpool Dishwasher Handle
8	8193882 Whirlpool Dishwasher Primary Latch Bolt
9	W11202742 Whirlpool Dishwasher Electronic Control Board
10	WP8269209 Whirlpool Door Switch
11	Clip, BI-Metal
