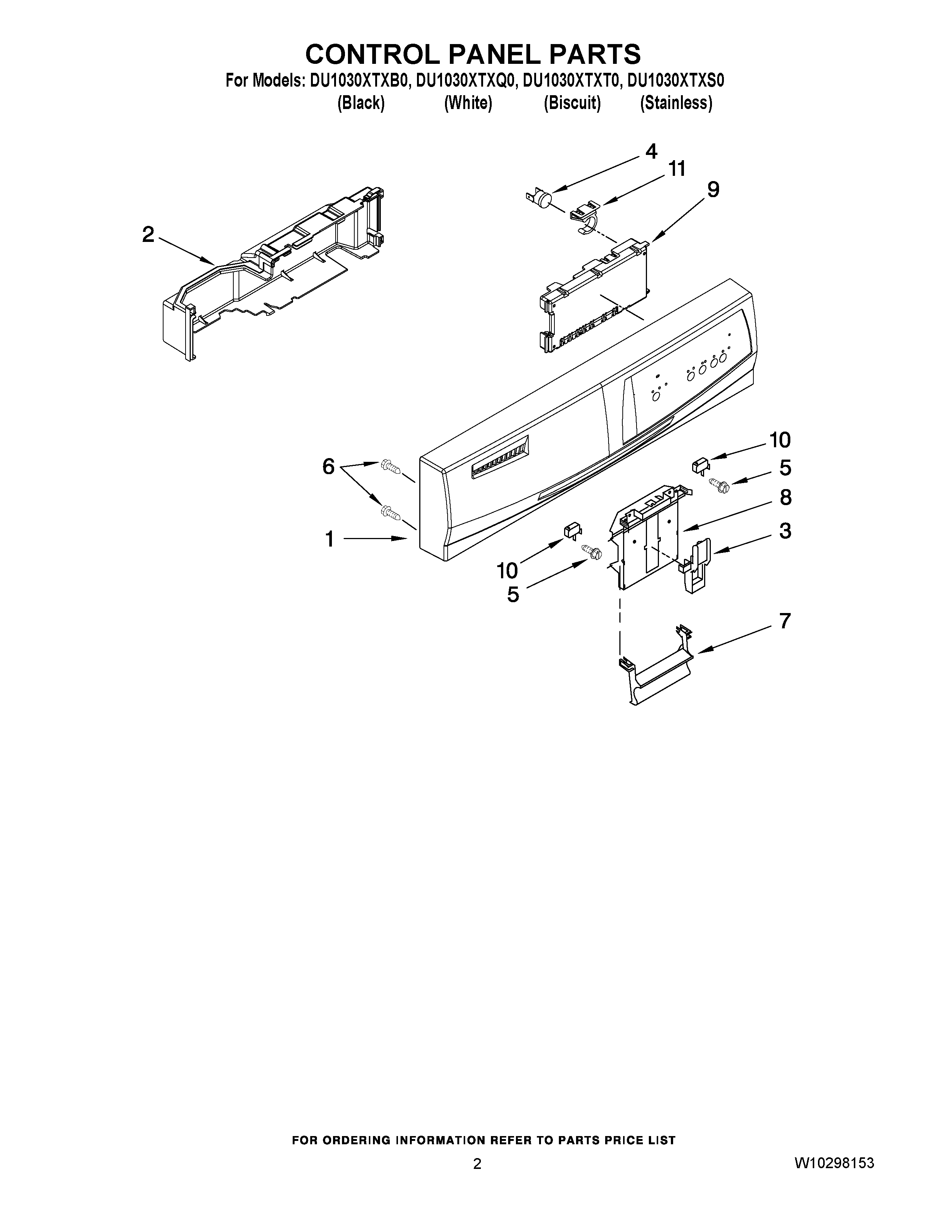

DU1030XTXQ0 02 – CONTROL PANEL PARTSadmin2025-04-26T12:00:52+00:00DU1030XTXQ0 02 – CONTROL PANEL PARTS ProductsPositionProduct1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)2Cover Control Shield Assembly3WP8524472 Whirlpool Dishwasher Door Latch Actuator4W10258275 Whirlpool Dishwasher Bimetal Fuse5WP3400412 Whirlpool Dishwasher Screw6WPW10348413 Whirlpool Dishwasher Screw7WP8534984 Whirlpool Dishwasher Handle7WP8534985 Whirlpool Dishwasher Handle78534986 Whirlpool Dishwasher Handle88193882 Whirlpool Dishwasher Primary Latch Bolt9W11202742 Whirlpool Dishwasher Electronic Control Board10WP8269209 Whirlpool Door Switch11Clip, BI-Metal
