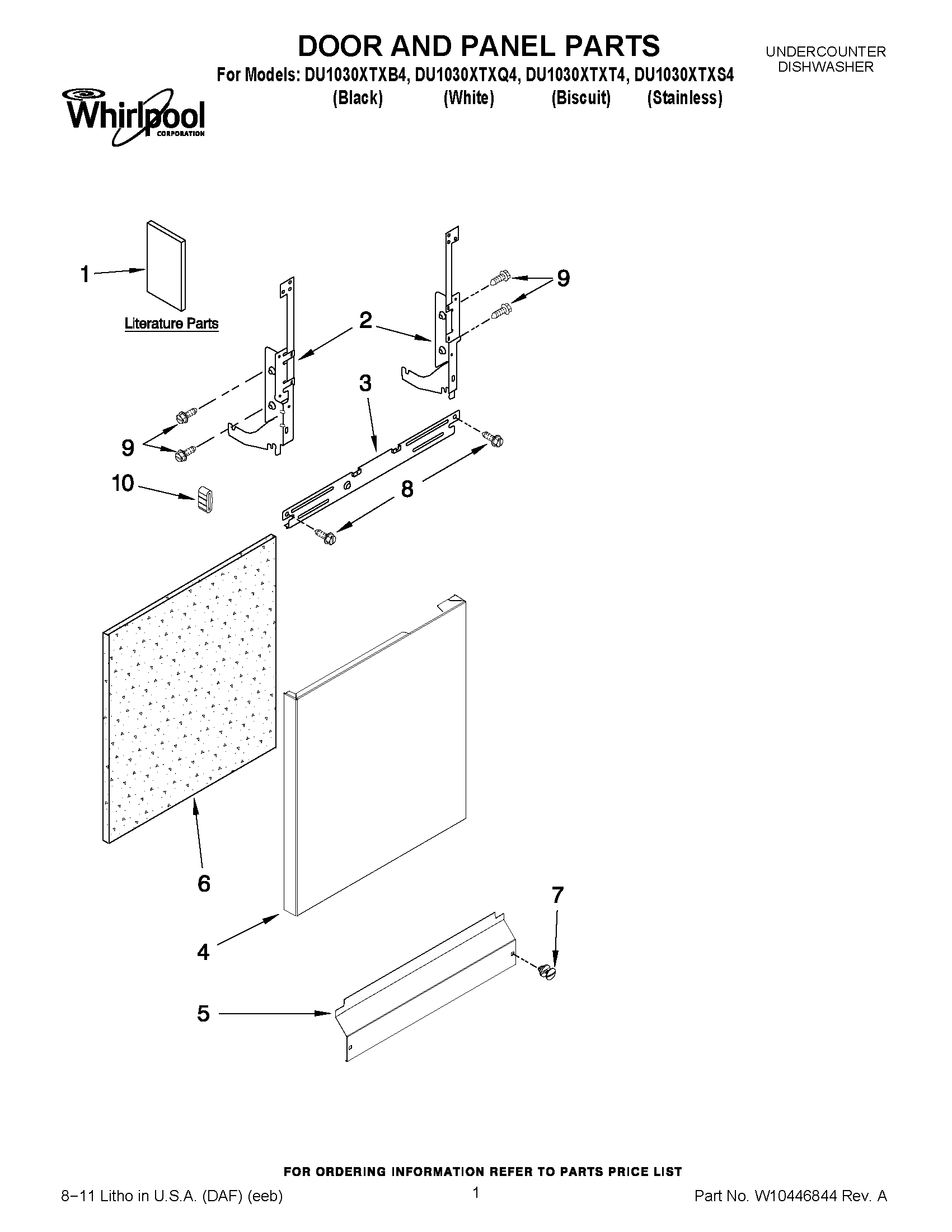

DU1030XTXQ4 01 – DOOR AND PANEL PARTS

DU1030XTXQ4 01 – DOOR AND PANEL PARTS

Written by

in

DU1030XTXQ4 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1GUIDE, USE & CARE (ENGLISH/FRENCH)
1TECH SHEET (ENGLISH)
1TECH SHEET, (FRENCH)
1GUIDE, USE & CARE (SPANISH)
1ENERGY GUIDE
1INSTRUCTIONS, INSTALLATION
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4WPW10274890 Whirlpool Dishwasher Panel
4PANEL FRONT (WHITE)
4W10274892 Whirlpool Dishwasher Panel
4PANEL FRONT (STAINLESS)
5ACCESS PANEL (BISCUIT)
5WPW10441007 Whirlpool Dishwasher Panel
5PANEL
6WPW10073520 Whirlpool Dishwasher Insulation Pad
7WPW10503549 Whirlpool Dishwasher Retainer Clip
7WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7WPW10503550 Whirlpool Dishwasher Retainer
8SCREW
9WPW10109200 Whirlpool Screw
10WP8268961 Whirlpool Friction Pad
