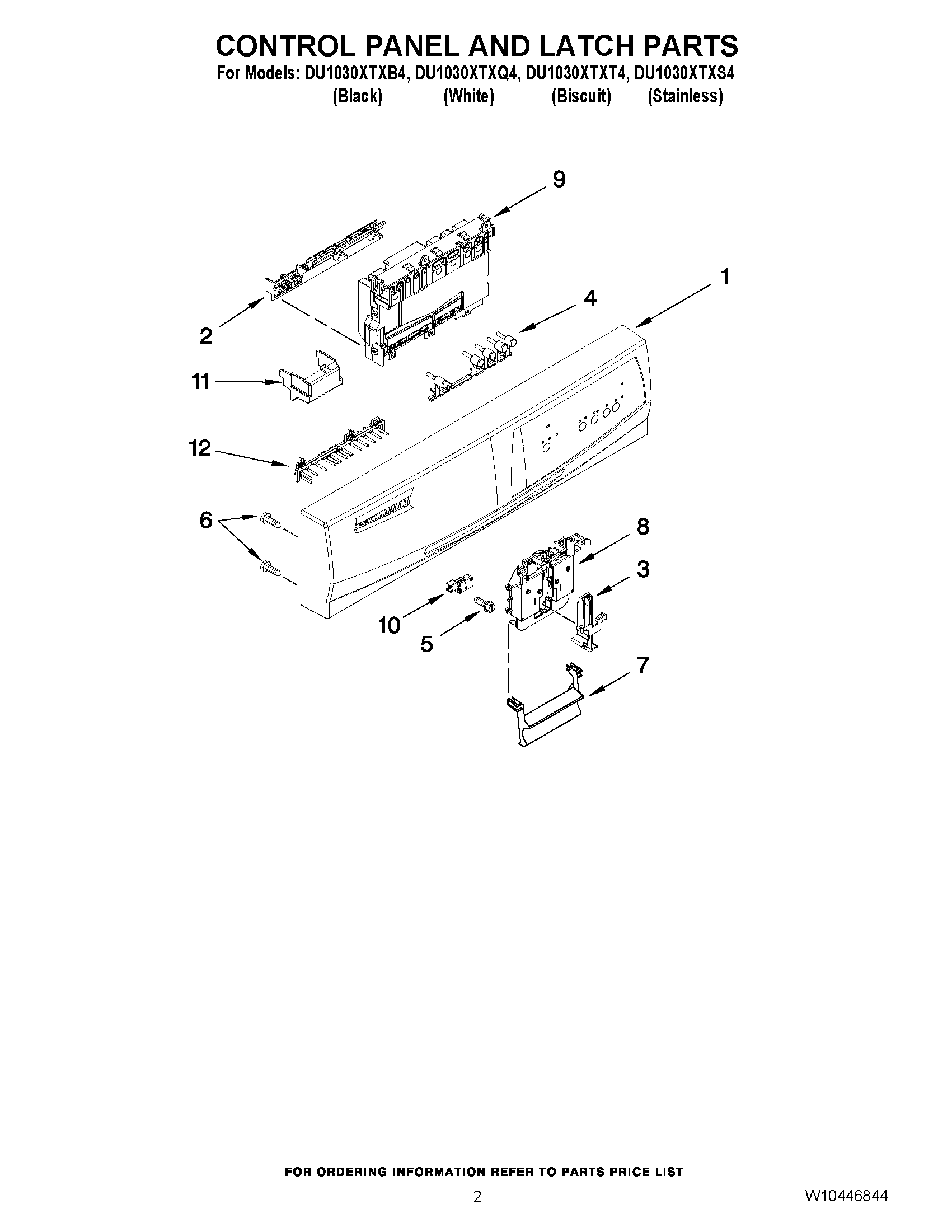

DU1030XTXQ4 02 – CONTROL PANEL AND LATCH PARTS

DU1030XTXQ4 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

DU1030XTXQ4 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
1CONSOLE ASSEMBLY (INCLUDES ACTIVE OVERLAY & INSERT) (BISCUIT)
2WPW10372484 Whirlpool Dishwasher Brace
3WP8524472 Whirlpool Dishwasher Door Latch Actuator
4WPW10274840 Whirlpool Dishwasher Button
5WP3400412 Whirlpool Dishwasher Screw
6WPW10348413 Whirlpool Dishwasher Screw
78534986 Whirlpool Dishwasher Handle
7WP8534985 Whirlpool Dishwasher Handle
7WP8534984 Whirlpool Dishwasher Handle
8BOLT-LATCH
9CONTROL, ELECTRONIC
10WPW10274880 Whirlpool Switch
11W10783730 Whirlpool Dishwasher Connector
12W10854407 Whirlpool Dishwasher Guide
