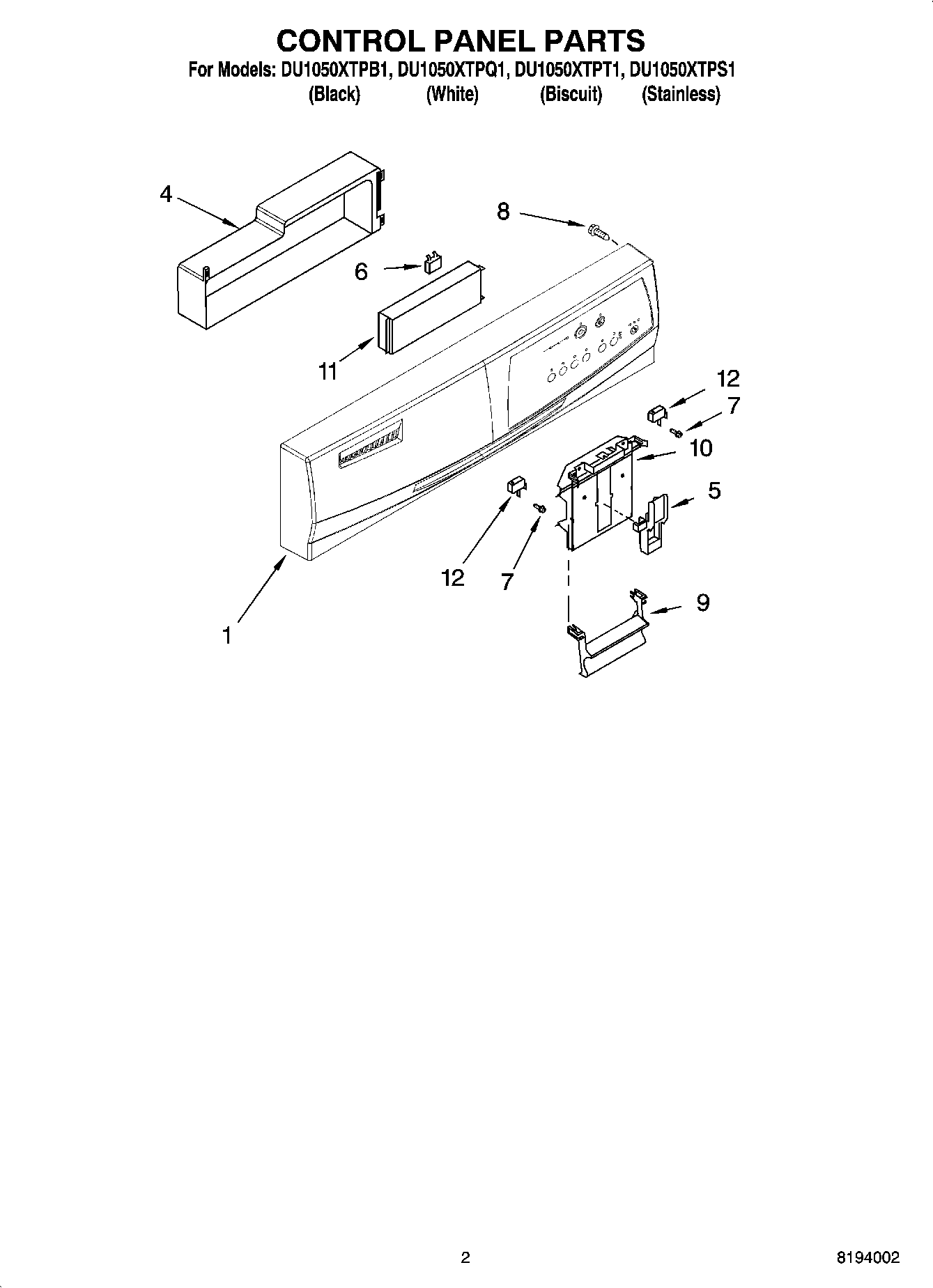

DU1050XTPB1 02 – CONTROL PANEL PARTS

DU1050XTPB1 02 – CONTROL PANEL PARTS

Written by

in

DU1050XTPB1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (Biscuit)
1Console Asm. (Includes Active Overlay & Insert) (White)
1Console Asm. (Includes Active Overlay & Insert) (Black)
4Cover Control Shield Assembly
5WP8524472 Whirlpool Dishwasher Door Latch Actuator
68193762 Whirlpool Fuse Kit
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
98534986 Whirlpool Dishwasher Handle
9WP8534985 Whirlpool Dishwasher Handle
9WP8534984 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11Control, Electronic
12WP8269209 Whirlpool Door Switch
