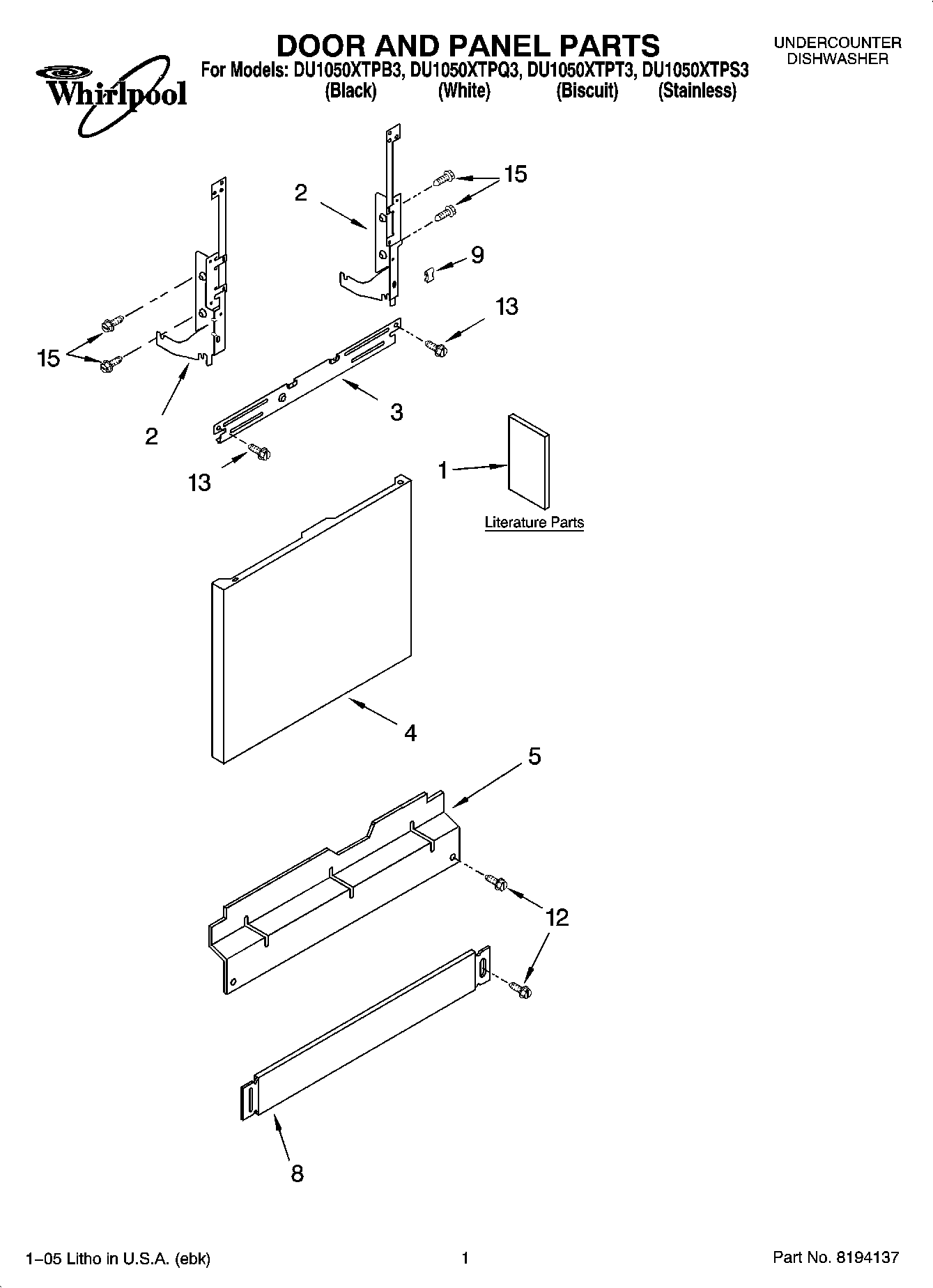

DU1050XTPS3 01 – DOOR AND PANEL PARTSadmin2025-04-26T12:00:42+00:00DU1050XTPS3 01 – DOOR AND PANEL PARTS ProductsPositionProduct1Guide, Use & Care Tech Sheet1Energy Guide1English/French1Instructions, Installation2W11613573 Whirlpool Door Hinge2W11613572 Whirlpool Dishwasher Door Hinge3Stiffener, Door4Panel Front (Black)4Panel Front (White)4Panel Front (Biscuit)4Panel Front (Stainless)5W10871198 Whirlpool Dishwasher Panel5W10909066 Whirlpool Dishwasher Panel8Toe Panel (Biscuit)8WPW10586591 Whirlpool Dishwasher Toe Panel8W10909064 Whirlpool Dishwasher Black Access Panel9Clip, Grounding12WPW10503550 Whirlpool Dishwasher Retainer12WPW10503549 Whirlpool Dishwasher Retainer Clip12WP302868 Whirlpool Screw13SCREW15Screw 10-16, Hi-Lo (4)
