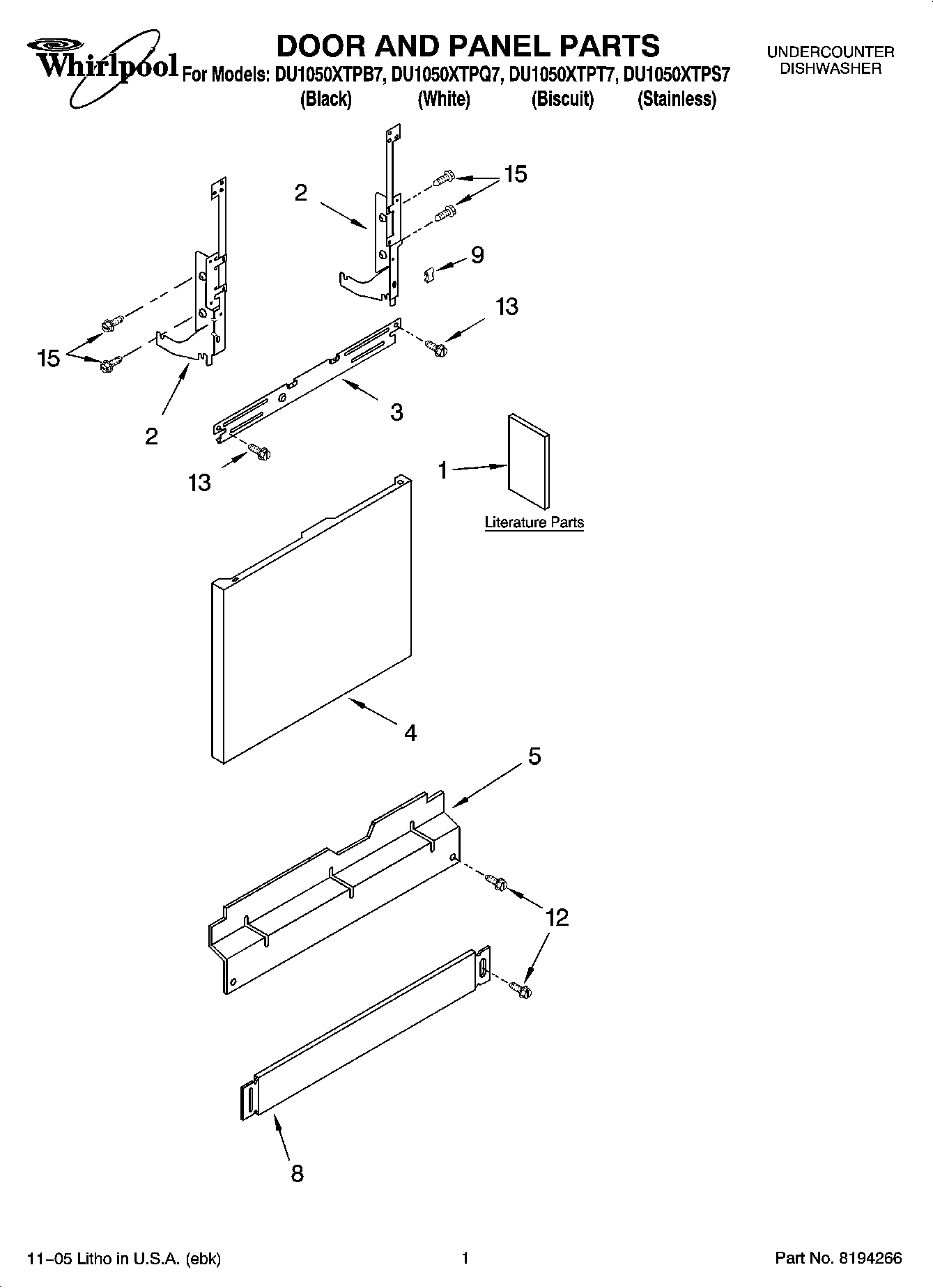

DU1050XTPS7 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Guide, Use & Care Tech Sheet
1Instructions, Installation
1Energy Guide
1Tech Sheet
2W11613572 Whirlpool Dishwasher Door Hinge
2W11613573 Whirlpool Door Hinge
3Stiffener, Door
4Panel Front (Black)
4Panel Front (White)
4Panel Front (Stainless)
4Panel Front (Biscuit)
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
8W10909064 Whirlpool Dishwasher Black Access Panel
8WPW10586591 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit)
9Clip, Grounding
12WPW10503550 Whirlpool Dishwasher Retainer
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WP302868 Whirlpool Screw
13SCREW
15WPW10109200 Whirlpool Screw
