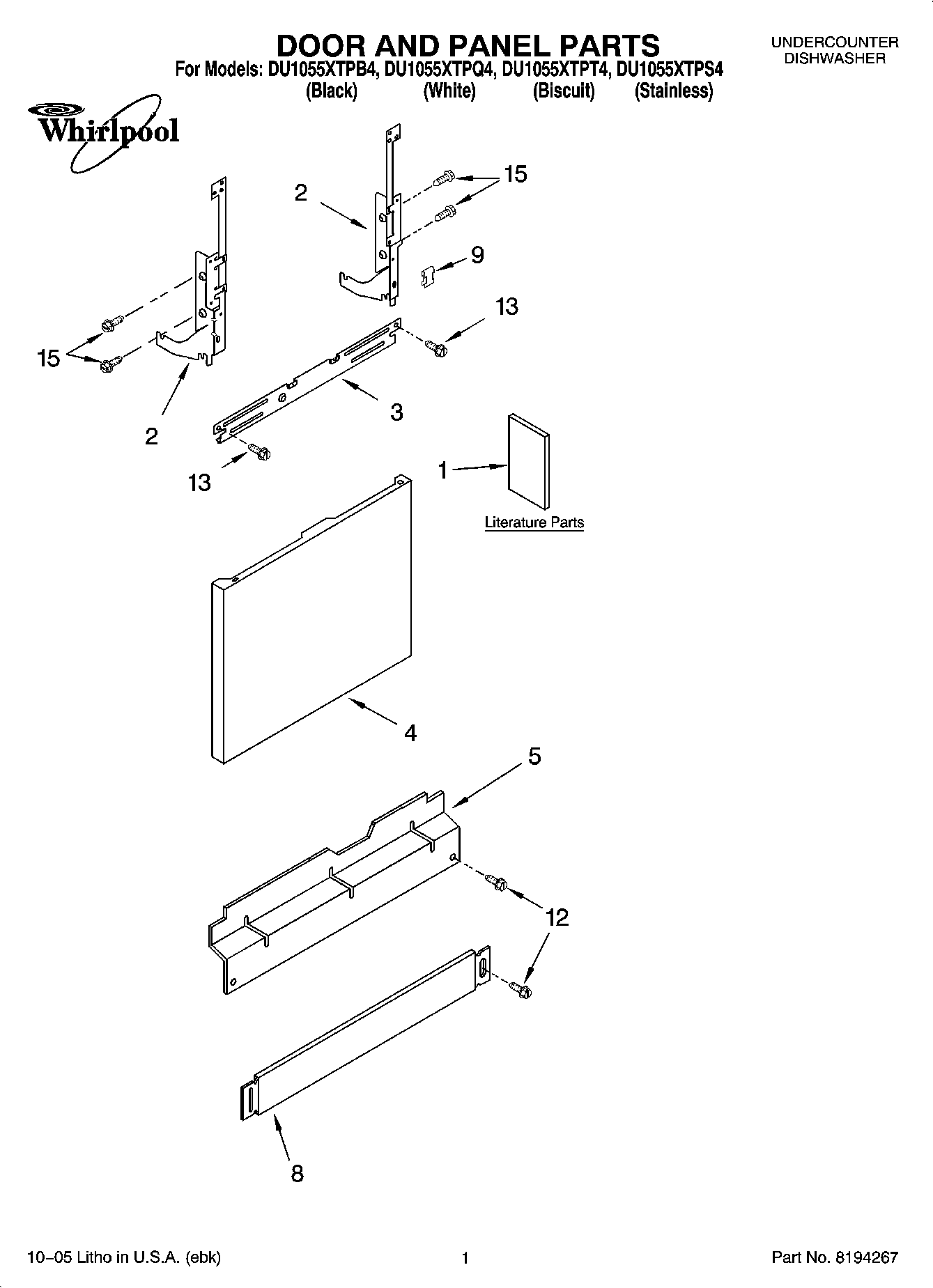

DU1055XTPB4 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Guide, Use & Care Tech Sheet
1	Instructions, Installation
1	Tech Sheet
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel Front (Stainless)
4	Panel Front (Biscuit)
4	Panel Front (White)
4	Panel Front (Black)
5	W10909066 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
8	Toe Panel (Biscuit)
8	W10909064 Whirlpool Dishwasher Black Access Panel
8	WPW10586591 Whirlpool Dishwasher Toe Panel
9	Clip, Grounding
12	WPW10503550 Whirlpool Dishwasher Retainer
12	WP302868 Whirlpool Screw
12	WPW10503549 Whirlpool Dishwasher Retainer Clip
13	SCREW
15	WPW10109200 Whirlpool Screw
