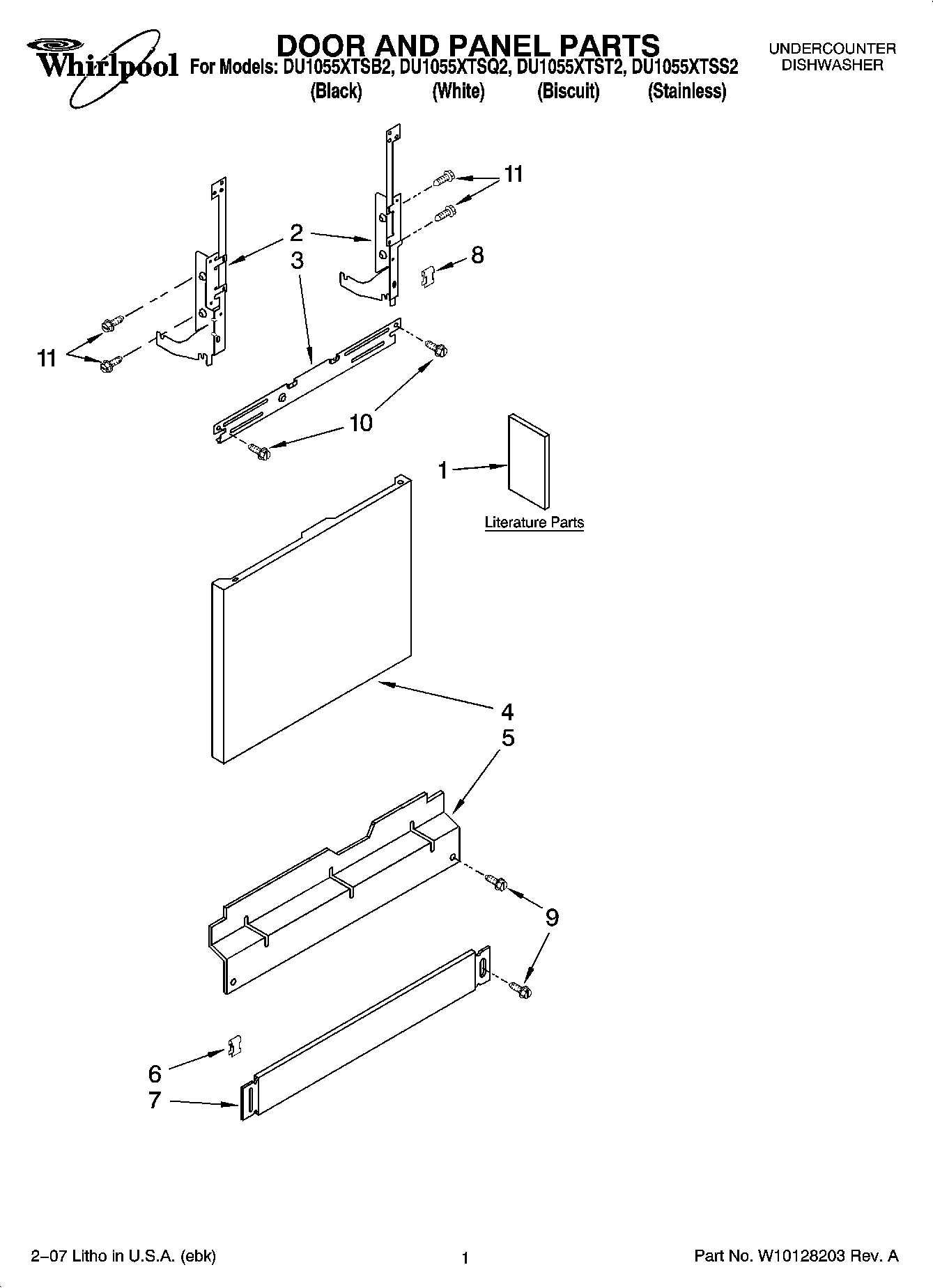

DU1055XTSB2 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Energy Guide
1	Guide, Use & Care
1	Tech Sheet
1	Instructions, Installation
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	Panel Front (White)
4	Panel Front (Biscuit)
4	Panel Front (Stainless)
4	Panel Front (Black)
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
5	W10909066 Whirlpool Dishwasher Panel
6	WP8269016 Whirlpool Clip Assembly
7	WP8573287 Whirlpool Dishwasher Toe Panel
7	Toe Panel (Biscuit)
8	Clip, Grounding
9	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WPW10503550 Whirlpool Dishwasher Retainer
9	WP302868 Whirlpool Screw
10	SCREW
11	WPW10109200 Whirlpool Screw
