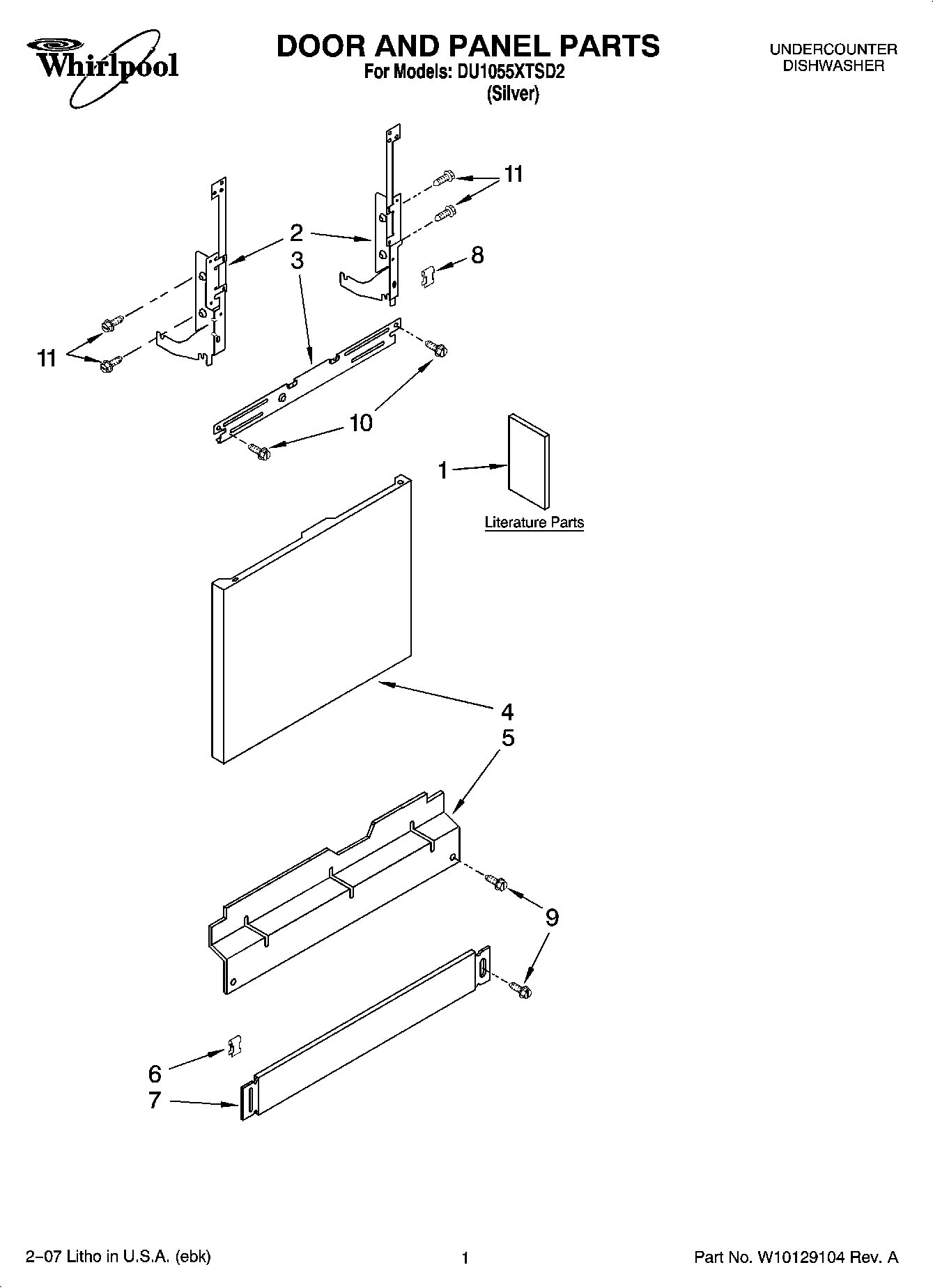

DU1055XTSD2 01 – DOOR AND PANEL PARTS

DU1055XTSD2 01 – DOOR AND PANEL PARTS

Written by

in

DU1055XTSD2 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care
1Tech Sheet
1Instructions, Installation
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Ultimate Silver)
5W10909064 Whirlpool Dishwasher Black Access Panel
6WP8269016 Whirlpool Clip Assembly
8Clip, Grounding
9WP302868 Whirlpool Screw
10SCREW
11WPW10109200 Whirlpool Screw
