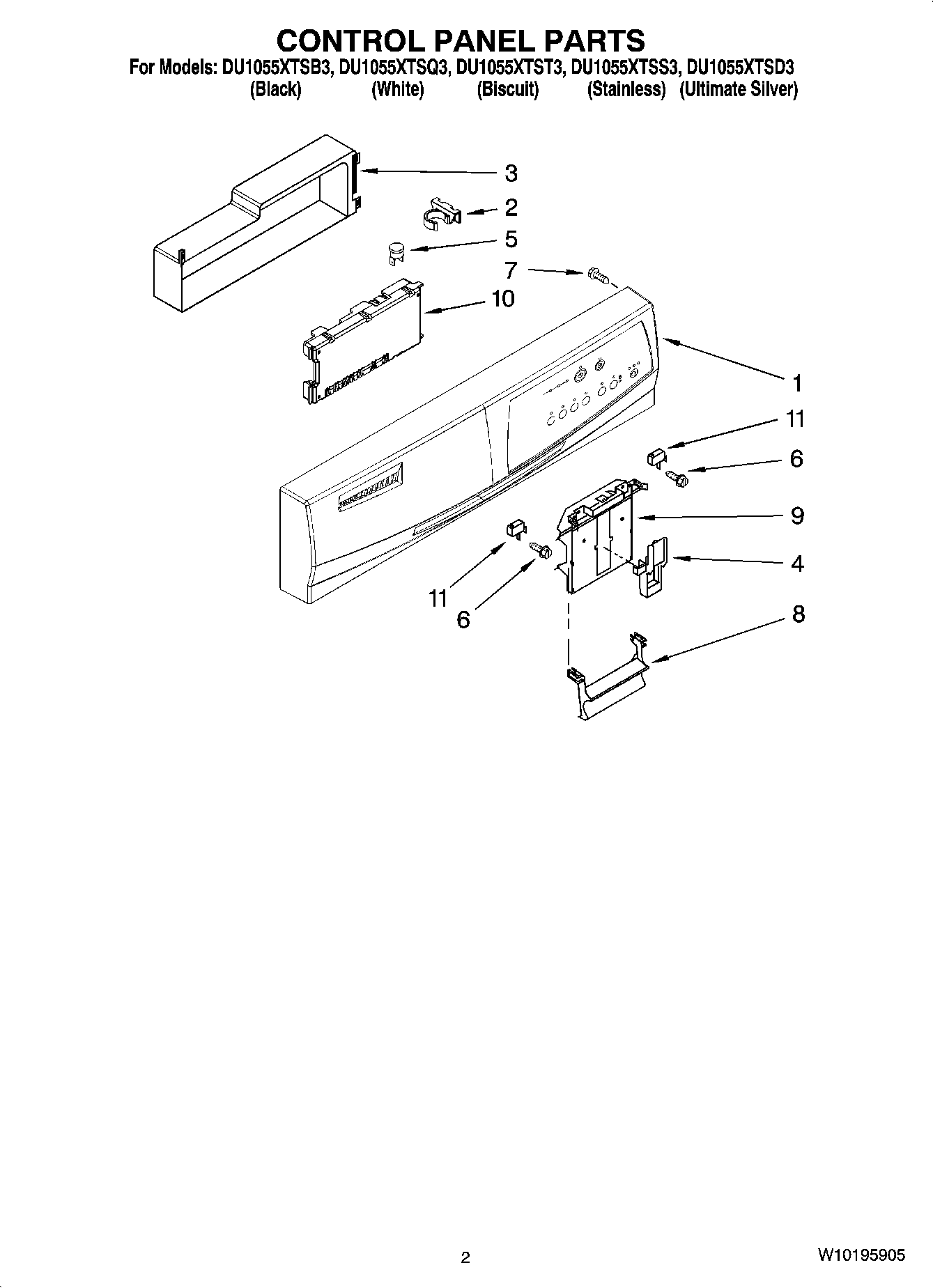

DU1055XTSD3 02 – CONTROL PANEL PARTS

DU1055XTSD3 02 – CONTROL PANEL PARTS

Written by

in

DU1055XTSD3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (Biscuit)
1WPW10021720 Whirlpool Dishwasher Control Panel
1WPW10021710 Whirlpool Dishwasher Control Panel
2Clip, BI-Metal
3Cover Control Shield Assembly
4WP8524472 Whirlpool Dishwasher Door Latch Actuator
5W10258275 Whirlpool Dishwasher Bimetal Fuse
6WP3400412 Whirlpool Dishwasher Screw
7WPW10348409 Whirlpool Screw
8WP8534985 Whirlpool Dishwasher Handle
88534986 Whirlpool Dishwasher Handle
8WP8534984 Whirlpool Dishwasher Handle
98193882 Whirlpool Dishwasher Primary Latch Bolt
10WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
11WP8269209 Whirlpool Door Switch
