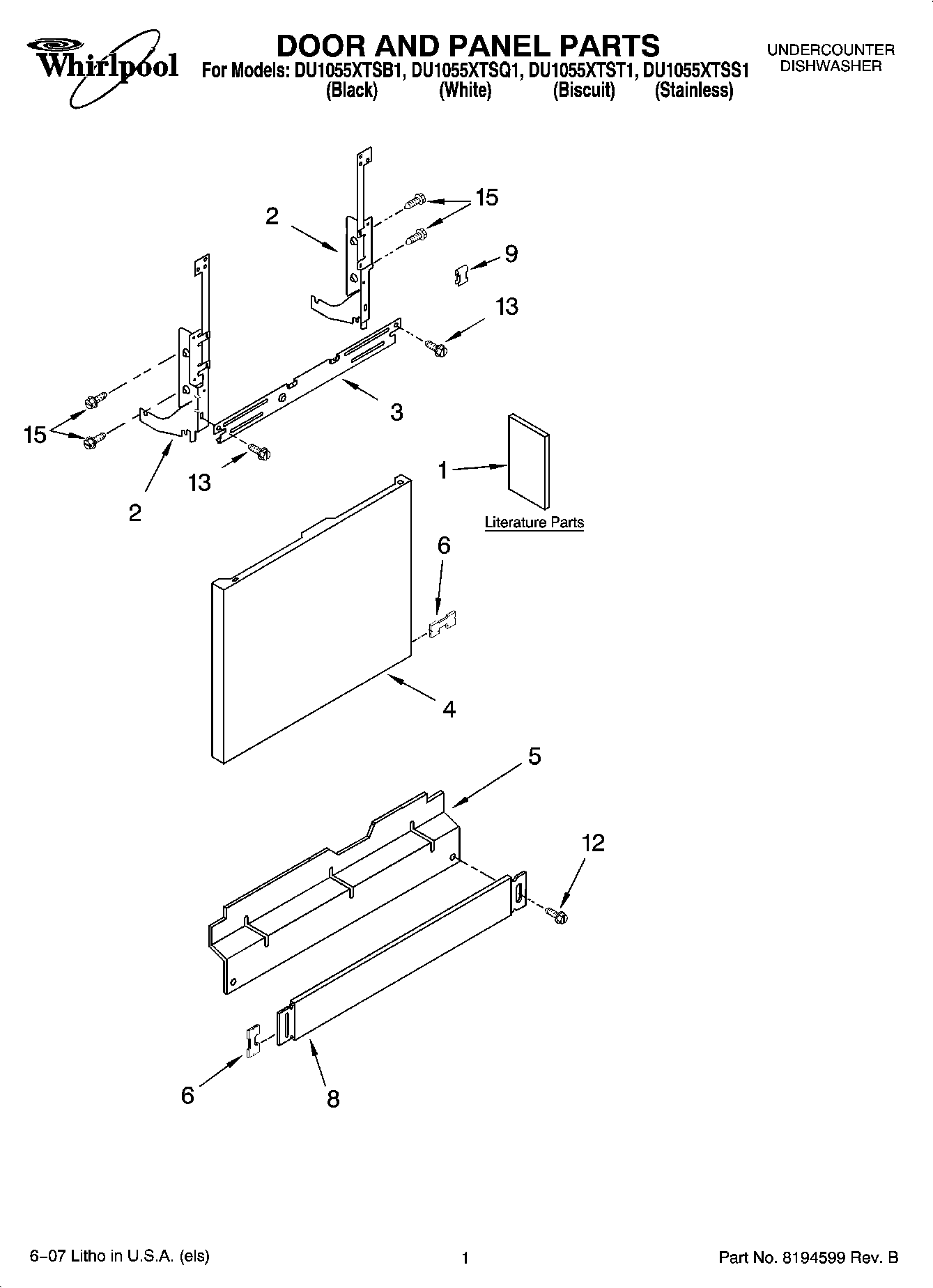

DU1055XTSS1 01 – DOOR AND PANEL PARTS

DU1055XTSS1 01 – DOOR AND PANEL PARTS

Written by

in

DU1055XTSS1 01 – DOOR AND PANEL PARTS

Products

PositionProduct
1Energy Guide
1Guide, Use & Care
1Tech Sheet
1Instructions, Installation
2W11613573 Whirlpool Door Hinge
2W11613572 Whirlpool Dishwasher Door Hinge
3Stiffener, Door
4Panel Front (Stainless)
4Panel Front (Black)
4Panel Front (White)
4Panel Front (Biscuit)
5W10909064 Whirlpool Dishwasher Black Access Panel
5W10871198 Whirlpool Dishwasher Panel
5W10909066 Whirlpool Dishwasher Panel
6WP8269016 Whirlpool Clip Assembly
8WP8573287 Whirlpool Dishwasher Toe Panel
8Toe Panel (Biscuit)
9Clip, Grounding
12WPW10503549 Whirlpool Dishwasher Retainer Clip
12WPW10503550 Whirlpool Dishwasher Retainer
12WP302868 Whirlpool Screw
13SCREW
15WPW10109200 Whirlpool Screw
