DU1055XTSS1 06 – FILL AND OVERFILL PARTS

DU1055XTSS1 06 – FILL AND OVERFILL PARTS

Written by

in

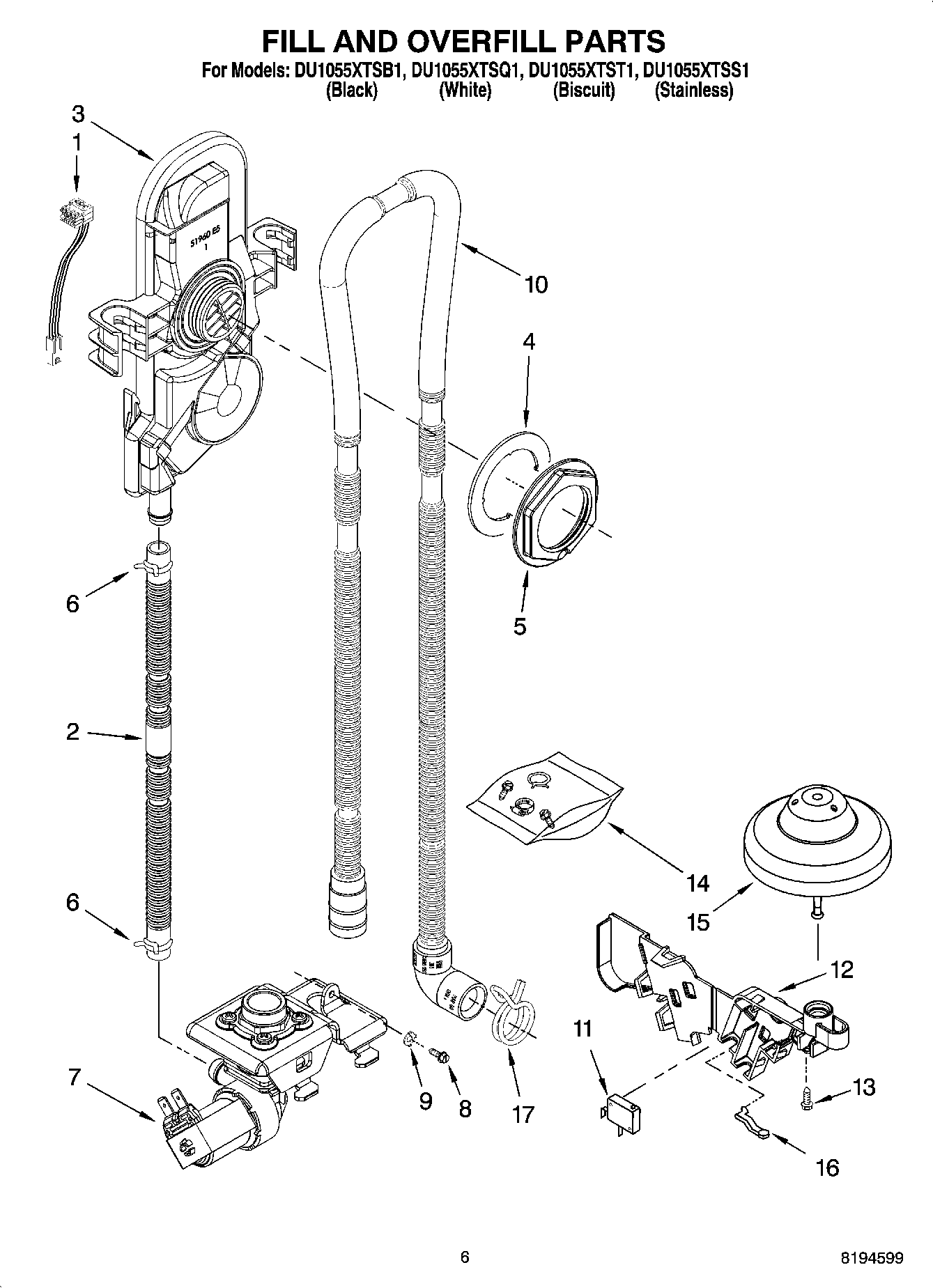

DU1055XTSS1 06 – FILL AND OVERFILL PARTS

Products

PositionProduct
1Wire, Jumper
2WPW10041920 Whirlpool Dishwasher Fill Hose
3Water Inlet (Also Order Item 4)
4WP8531323 Whirlpool Gasket Seal
5WPW10508676 Whirlpool Dishwasher Tube Nut
6WP596669 Whirlpool Hose Clamp
7WPW10158389 Whirlpool Dishwasher Inlet Valve
8WP489069 Whirlpool Compactor Screw
9WP3378128 Whirlpool Dishwasher Washer
10WPW10358302 Whirlpool Dishwasher Drain Hose
11WP8268909 Whirlpool Dishwasher Switch
12WPW10175383 Whirlpool Dishwasher Standpipe
13WP304231 Whirlpool Dishwasher Screw
14WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
15WP8268913 Whirlpool Dishwasher Float Assembly
16WP8268892 Whirlpool Dishwasher Lever
17WP356138 Whirlpool Hose Clamp
