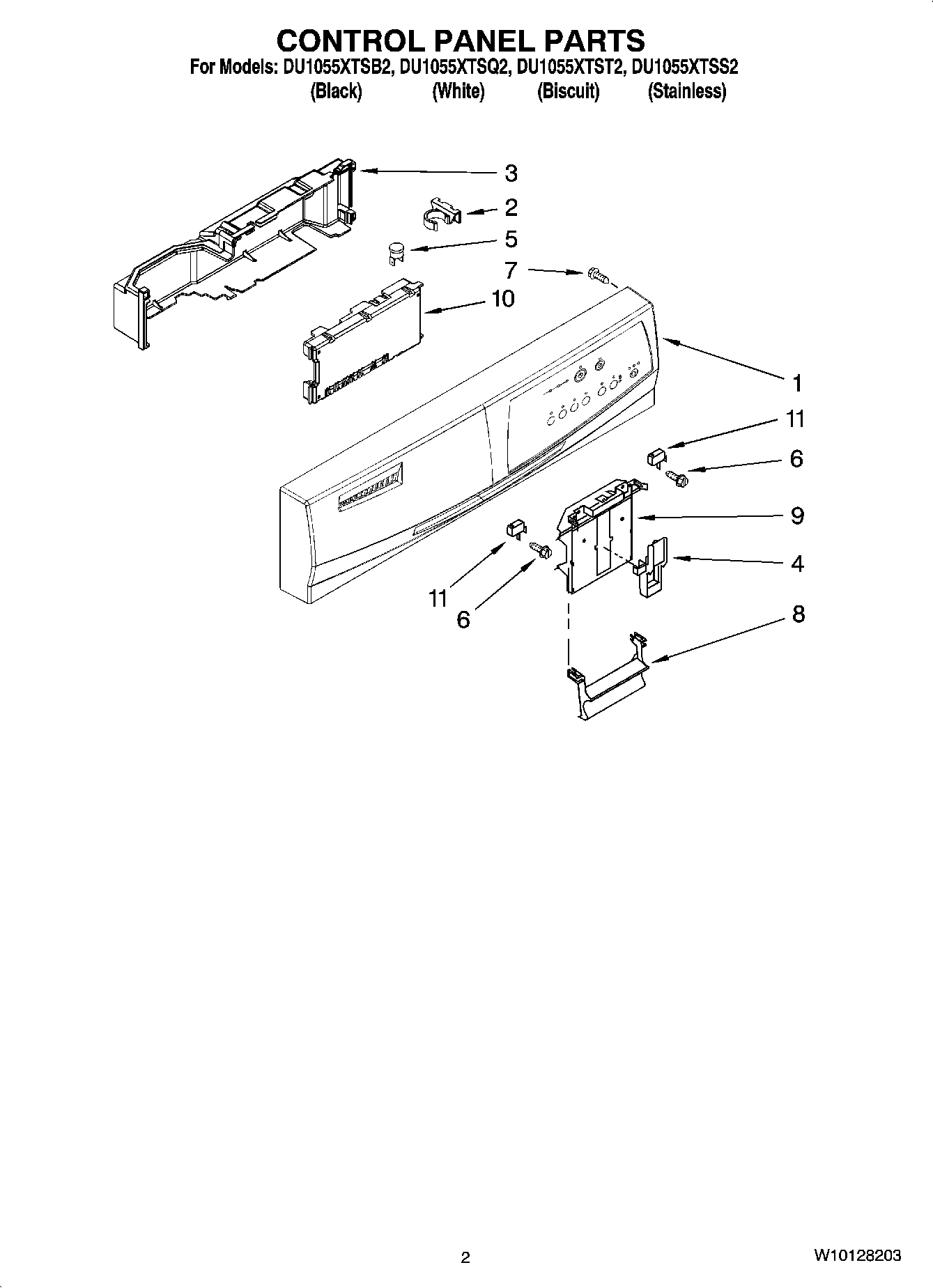

DU1055XTSS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	Console Asm. (Includes Active Overlay & Insert) (Biscuit)
1	WPW10021720 Whirlpool Dishwasher Control Panel
1	WPW10021710 Whirlpool Dishwasher Control Panel
2	Clip, BI-Metal
3	Cover Control Shield Assembly
4	WP8524472 Whirlpool Dishwasher Door Latch Actuator
5	W10258275 Whirlpool Dishwasher Bimetal Fuse
6	WP3400412 Whirlpool Dishwasher Screw
7	WPW10348409 Whirlpool Screw
8	8534986 Whirlpool Dishwasher Handle
8	WP8534985 Whirlpool Dishwasher Handle
8	WP8534984 Whirlpool Dishwasher Handle
9	8193882 Whirlpool Dishwasher Primary Latch Bolt
10	WPW10084141-includeCORE Whirlpool WPW10084141 Dishwasher Electronic Control Board
11	WP8269209 Whirlpool Door Switch
