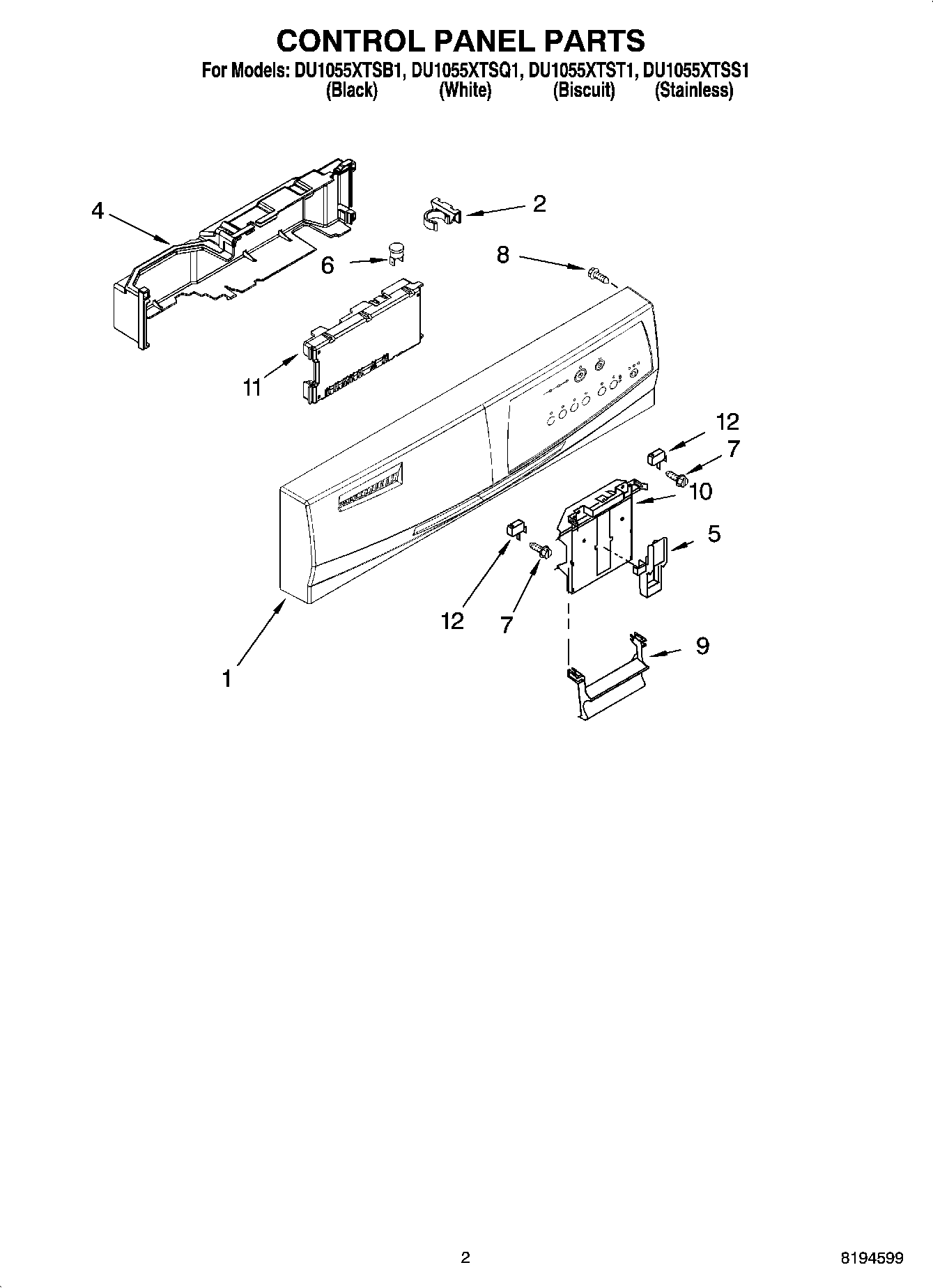

DU1055XTST1 02 – CONTROL PANEL PARTS

DU1055XTST1 02 – CONTROL PANEL PARTS

Written by

in

DU1055XTST1 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Console Asm. (Includes Active Overlay & Insert) (Biscuit)
1WPW10021720 Whirlpool Dishwasher Control Panel
1WPW10021710 Whirlpool Dishwasher Control Panel
2Clip, BI-Metal
4Cover Control Shield Assembly
5WP8524472 Whirlpool Dishwasher Door Latch Actuator
6W10258275 Whirlpool Dishwasher Bimetal Fuse
7WP3400412 Whirlpool Dishwasher Screw
8WPW10348409 Whirlpool Screw
9WP8534984 Whirlpool Dishwasher Handle
98534986 Whirlpool Dishwasher Handle
9WP8534985 Whirlpool Dishwasher Handle
108193882 Whirlpool Dishwasher Primary Latch Bolt
11WPW10084142 Whirlpool Dishwasher Electronic Control Board + Core
12WP8269209 Whirlpool Door Switch
