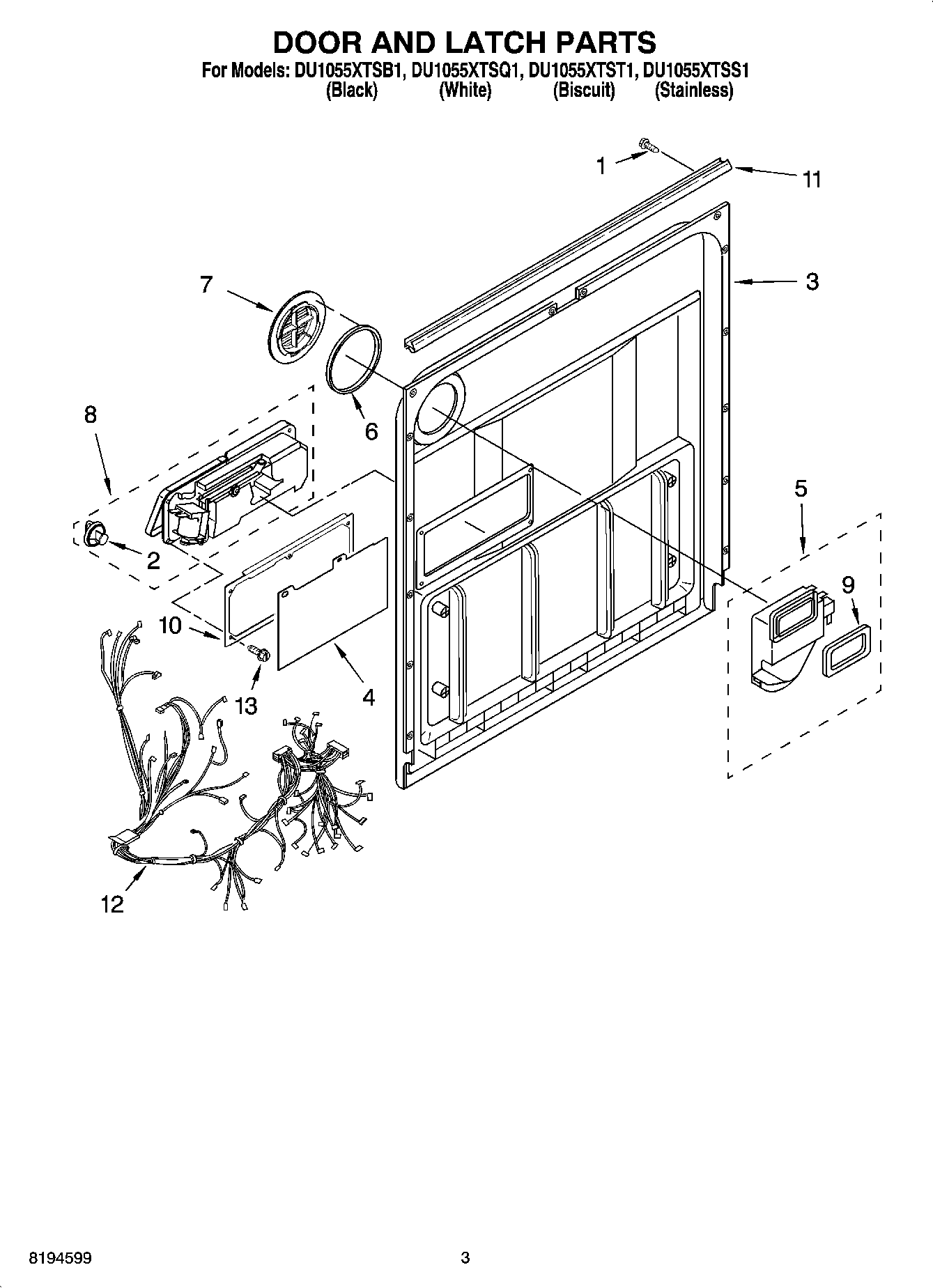

DU1055XTST1 03 – DOOR AND LATCH PARTS

DU1055XTST1 03 – DOOR AND LATCH PARTS

Written by

in

DU1055XTST1 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WP8558307 Whirlpool Rinse Aid Dispenser Cap
3WP8269311 Whirlpool Dishwasher Inner Door
4WP8531865 Whirlpool Dishwasher Door Shield
5WP8558980 Whirlpool Dishwasher Vent
6WP8269259 Whirlpool Air Vent Gasket
7Deflector, Vent (Also Order Item 6)
8WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
9WP8269258 Whirlpool Dishwasher Gasket
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WP8269296 Whirlpool Dishwasher Seal
12Wiring Harness Main
13WPW10177098 Whirlpool Dishwasher Screw
