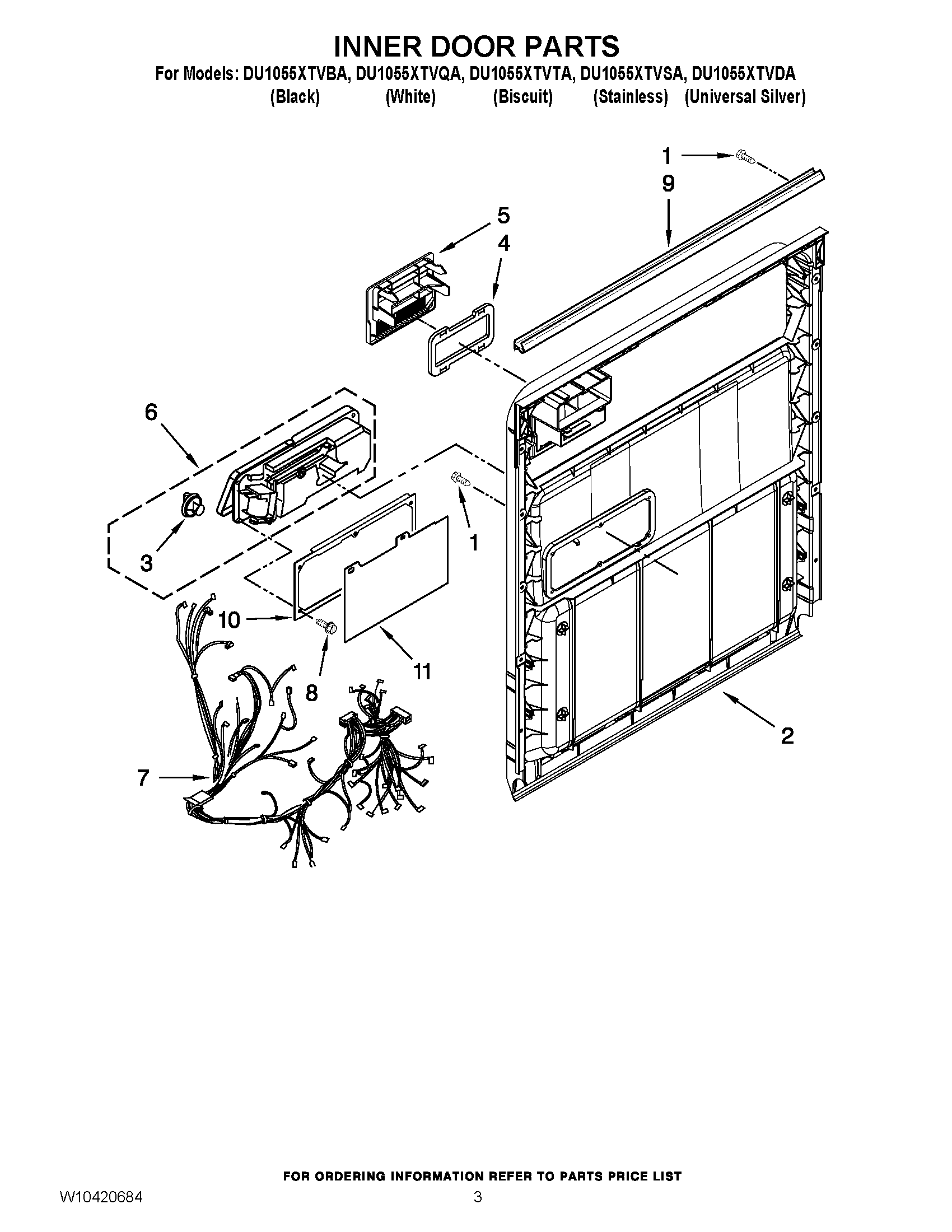

DU1055XTVBA 03 – INNER DOOR PARTS

DU1055XTVBA 03 – INNER DOOR PARTS

Written by

in

DU1055XTVBA 03 – INNER DOOR PARTS

Products

PositionProduct
1WPW10348413 Whirlpool Dishwasher Screw
2WPW10254546 Whirlpool Dishwasher Inner Door
3WP8558307 Whirlpool Rinse Aid Dispenser Cap
4WPW10254545 Whirlpool Dishwasher Gasket
5WPW10254548 Whirlpool Dishwasher Deflector
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7WIRING HARNESS
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
11W10385977 Whirlpool Dishwasher Cover Assembly
