DU1055XTVBA 05 – TUB AND FRAME PARTS

DU1055XTVBA 05 – TUB AND FRAME PARTS

Written by

in

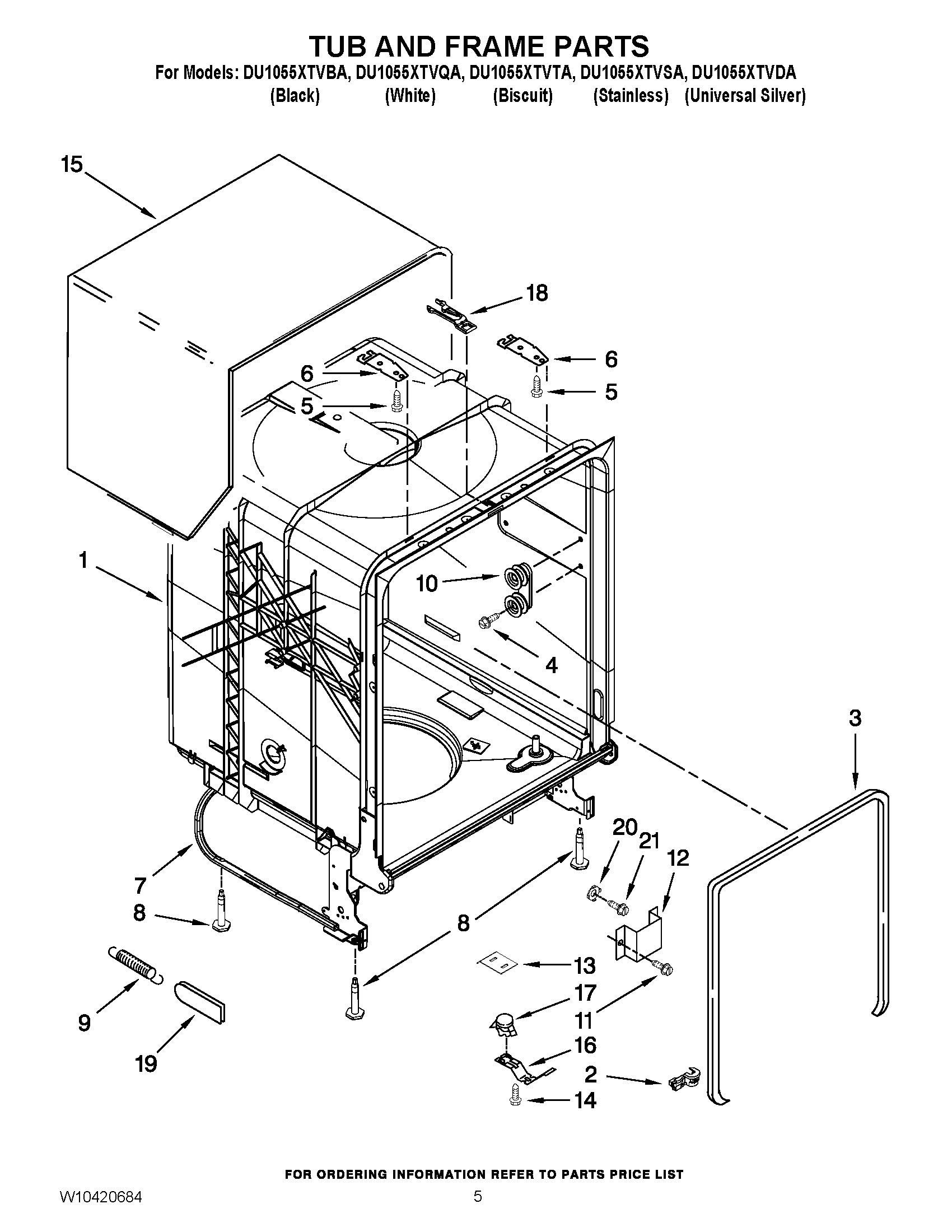

DU1055XTVBA 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W10266934 Whirlpool Dishwasher Tub
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WPW10545278 Whirlpool Drain Hose
5WP308685 Whirlpool Microwave Screw
6WP8269145 Whirlpool Dishwasher Mounting Bracket
7WPW10271702 Whirlpool Dishwasher Support
88193716 Whirlpool Leveling Leg
9WPW10337934 Whirlpool Spring Assembly
10WP8270016 Whirlpool Dishwasher Tub Wheel
11WP3400892 Whirlpool Dishwasher Screw
12WP8268991 Whirlpool Dishwasher Cover Assembly
13W10321574 Whirlpool Dishwasher Shield
14WP304231 Whirlpool Dishwasher Screw
15W11086533 Whirlpool Dishwasher Shield
16W10539489 Whirlpool Dishwasher Bracket-Stat
17WP661566 Whirlpool High Limit Thermostat
18WP8580309 Whirlpool Dishwasher Strike
19WP8268990 Whirlpool Dishwasher Door Spring Bushing
20WP3378128 Whirlpool Dishwasher Washer
21WP3400014 Whirlpool Dishwasher Screw
