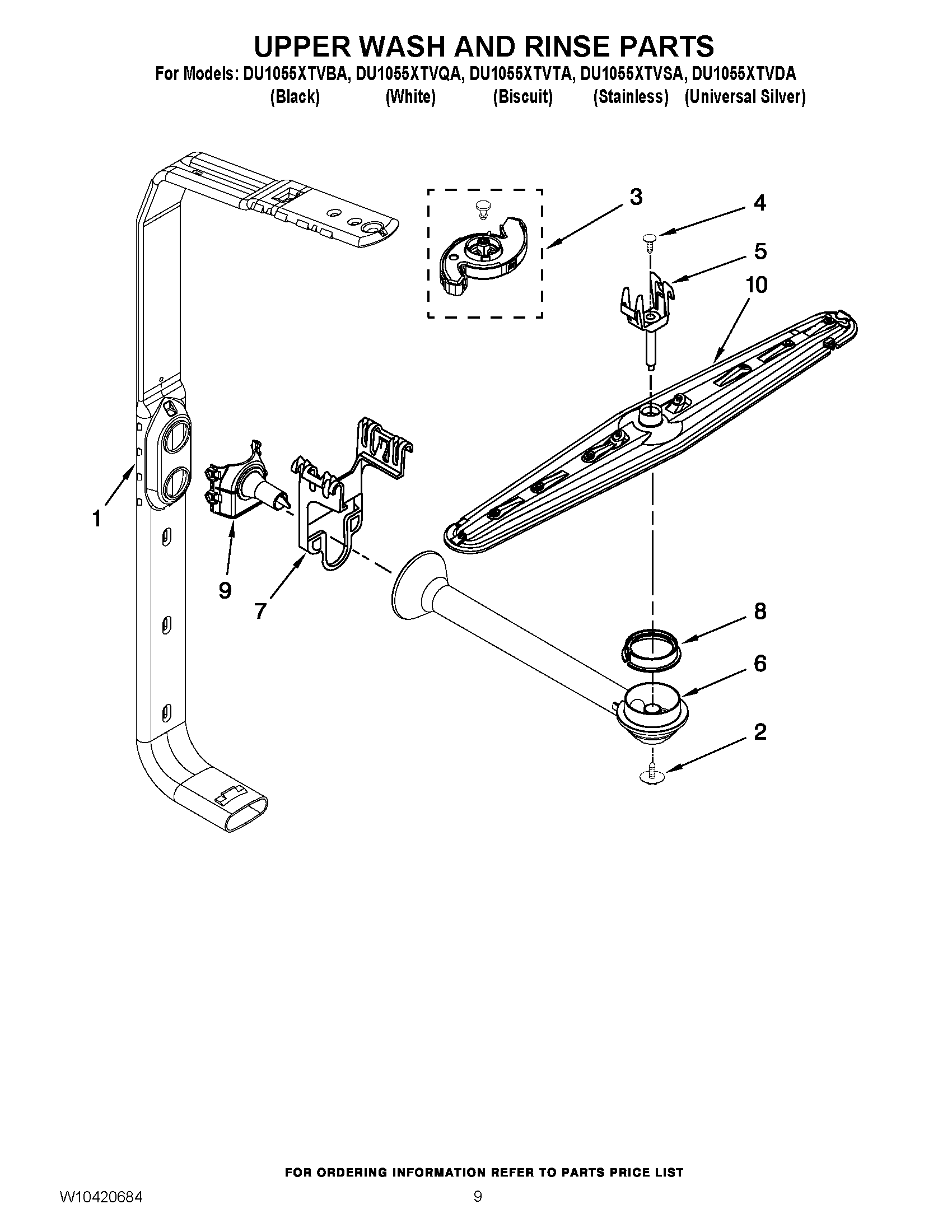

DU1055XTVBA 07 – UPPER WASH AND RINSE PARTS

DU1055XTVBA 07 – UPPER WASH AND RINSE PARTS

Written by

in

DU1055XTVBA 07 – UPPER WASH AND RINSE PARTS

Products

PositionProduct
1Feed Tube Assembly (Also Includes Items 3 & 9)
2WPW10349488 Whirlpool Screw
38193983 Whirlpool Spinner Kit
4WP3400919 Whirlpool Dishwasher Screw Cover
5WP3385159 Whirlpool Dishwasher Mount
6WPW10258149 Whirlpool Dishwasher Manifold
7WP3385160 Whirlpool Dishwasher Holder
8WP8268433 Whirlpool Seal Assembly
9Nozzle
10WP8535083 Whirlpool Dishwasher Spray Arm
