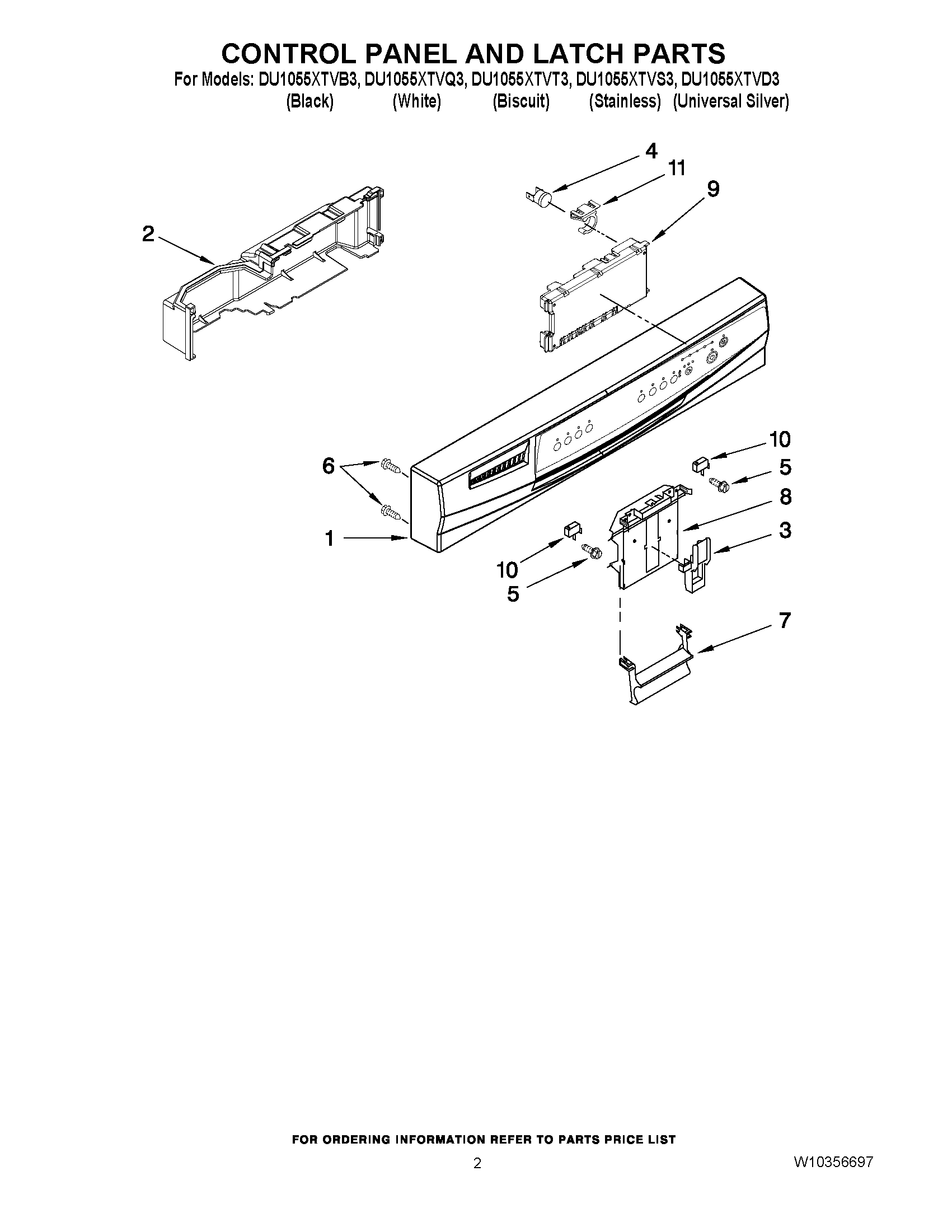

DU1055XTVQ3 02 – CONTROL PANEL AND LATCH PARTS
Written by
in
DU1055XTVQ3 02 – CONTROL PANEL AND LATCH PARTS
Products
Position
Product
1
WPW10459139 Whirlpool Dishwasher Control Panel
1
WPW10459140 Whirlpool Dishwasher Control Panel
2
Cover Control Shield Assembly
3
WP8524471 Whirlpool Dishwasher Actuator
4
W10258275 Whirlpool Dishwasher Bimetal Fuse
5
WP3400412 Whirlpool Dishwasher Screw
6
WPW10348413 Whirlpool Dishwasher Screw
7
WP8534984 Whirlpool Dishwasher Handle
7
WP8534985 Whirlpool Dishwasher Handle
7
8534986 Whirlpool Dishwasher Handle
8
8193882 Whirlpool Dishwasher Primary Latch Bolt
9
WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
10
WP8269209 Whirlpool Door Switch
11
Clip, BI-Metal
←
