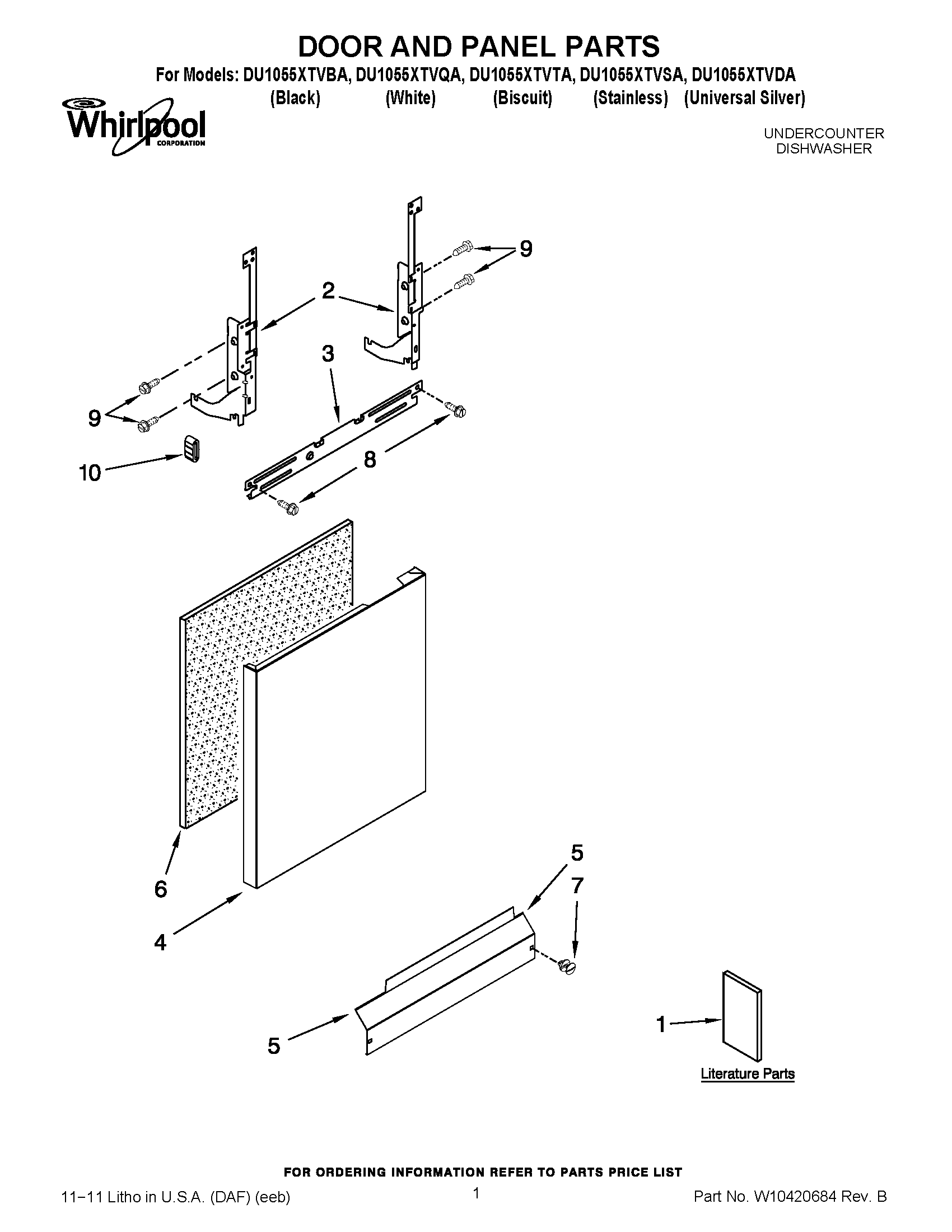

DU1055XTVQA 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	Guide, Use & Care (Spanish)
1	INSTRUCTIONS, INSTALLATION (ENERGY GUIDE)
1	Tech Sheet
1	INSTRUCTIONS, INSTALLATION
1	Guide, Use & Care (English/French)
2	W11613572 Whirlpool Dishwasher Door Hinge
2	W11613573 Whirlpool Door Hinge
3	Stiffener, Door
4	WPW10274896 Whirlpool Dishwasher Panel
4	WPW10274895 Whirlpool Dishwasher Panel
4	WPW10274897 Whirlpool Dishwasher Panel
4	WPW10274898 Whirlpool Dishwasher Panel
4	WPW10274902 Whirlpool Dishwasher Control Panel
5	W10441008 Whirlpool Dishwasher Panel
5	WPW10441007 Whirlpool Dishwasher Panel
5	PANEL
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
7	WPW10503550 Whirlpool Dishwasher Retainer
7	WPW10503548 Whirlpool Dishwasher Panel Retainer Clip
7	WPW10503549 Whirlpool Dishwasher Retainer Clip
8	WP489069 Whirlpool Compactor Screw
9	WPW10109200 Whirlpool Screw
10	WP8268961 Whirlpool Friction Pad
