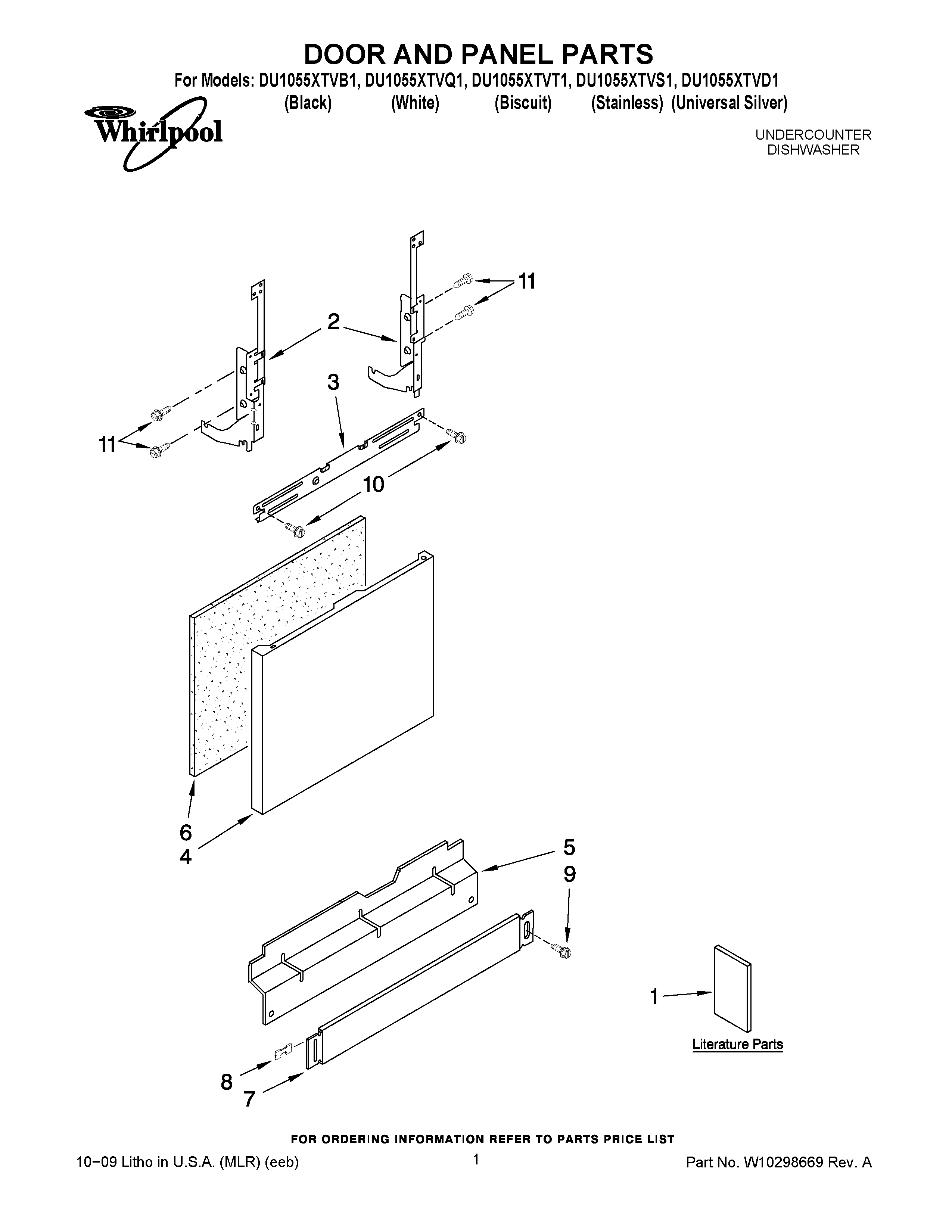

DU1055XTVS1 01 – DOOR AND PANEL PARTS

Products

Position	Product
1	ENERGY GUIDE
1	Guide, Use & Care (English/French)
1	Instructions, Installation
1	Tech Sheet
2	W11613573 Whirlpool Door Hinge
2	W11613572 Whirlpool Dishwasher Door Hinge
3	Stiffener, Door
4	W10301571 Whirlpool Dishwasher Panel
4	PANEL FRONT (ULTIMATE SILVER)
4	W10384707 Whirlpool Dishwasher Panel
4	Panel Front (White)
4	W10301577 Whirlpool Outer Door Panel
5	W10909066 Whirlpool Dishwasher Panel
5	W10871198 Whirlpool Dishwasher Panel
5	W10909064 Whirlpool Dishwasher Black Access Panel
6	WPW10073520 Whirlpool Dishwasher Insulation Pad
7	WP8573287 Whirlpool Dishwasher Toe Panel
7	Toe Panel (Biscuit)
8	WP8269016 Whirlpool Clip Assembly
9	WPW10503549 Whirlpool Dishwasher Retainer Clip
9	WPW10503550 Whirlpool Dishwasher Retainer
9	WP302868 Whirlpool Screw
10	SCREW
11	WPW10109200 Whirlpool Screw
