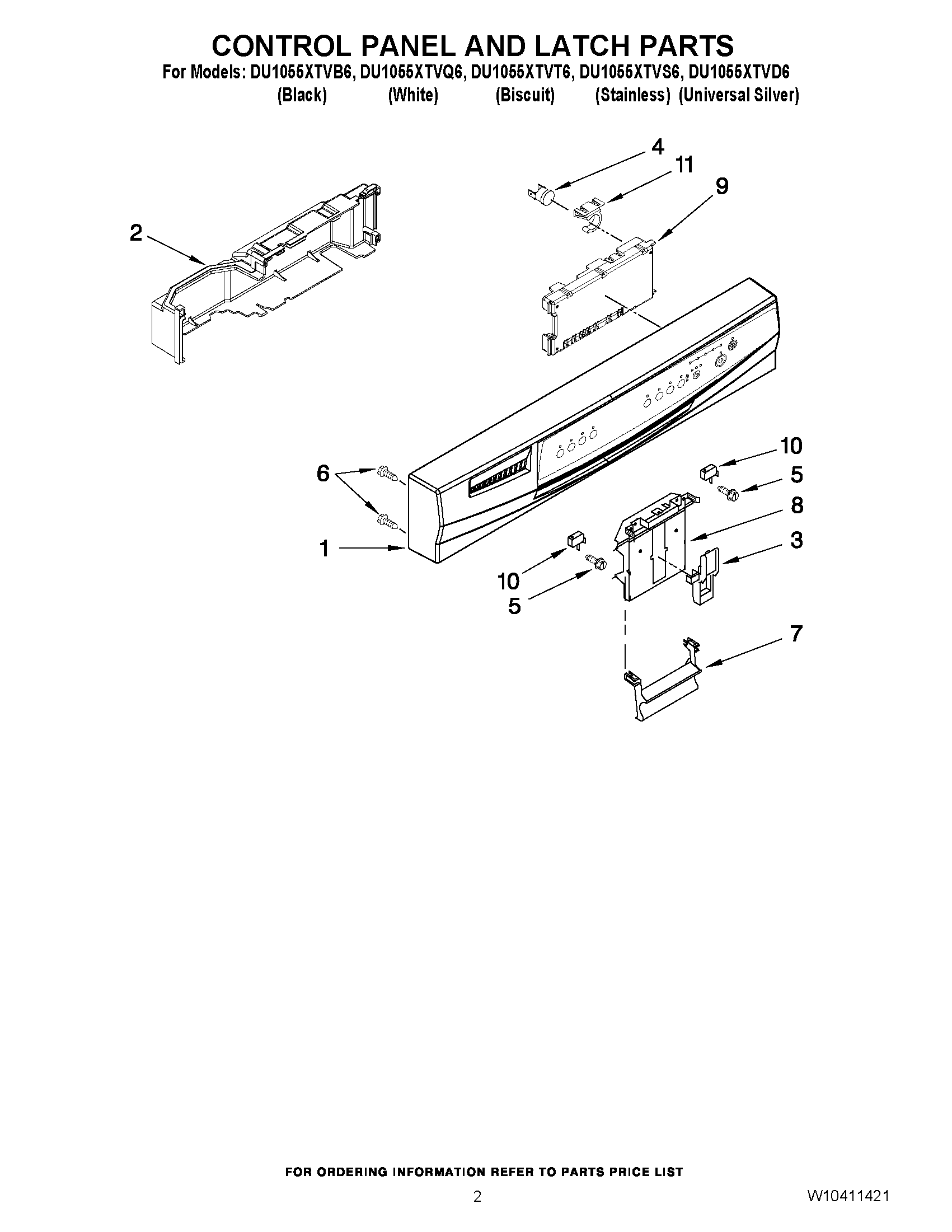

DU1055XTVS6 02 – CONTROL PANEL AND LATCH PARTS

DU1055XTVS6 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

DU1055XTVS6 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1WPW10459139 Whirlpool Dishwasher Control Panel
1WPW10459140 Whirlpool Dishwasher Control Panel
2Cover Control Shield Assembly
3WP8524471 Whirlpool Dishwasher Actuator
4W10258275 Whirlpool Dishwasher Bimetal Fuse
5WP3400412 Whirlpool Dishwasher Screw
6WPW10348413 Whirlpool Dishwasher Screw
7WP8534984 Whirlpool Dishwasher Handle
7WP8534985 Whirlpool Dishwasher Handle
78534986 Whirlpool Dishwasher Handle
88193882 Whirlpool Dishwasher Primary Latch Bolt
9WPW10285180-includeCORE Whirlpool WPW10285180 Dishwasher Electronic Control Board + Core
10WP8269209 Whirlpool Door Switch
11Clip, BI-Metal
