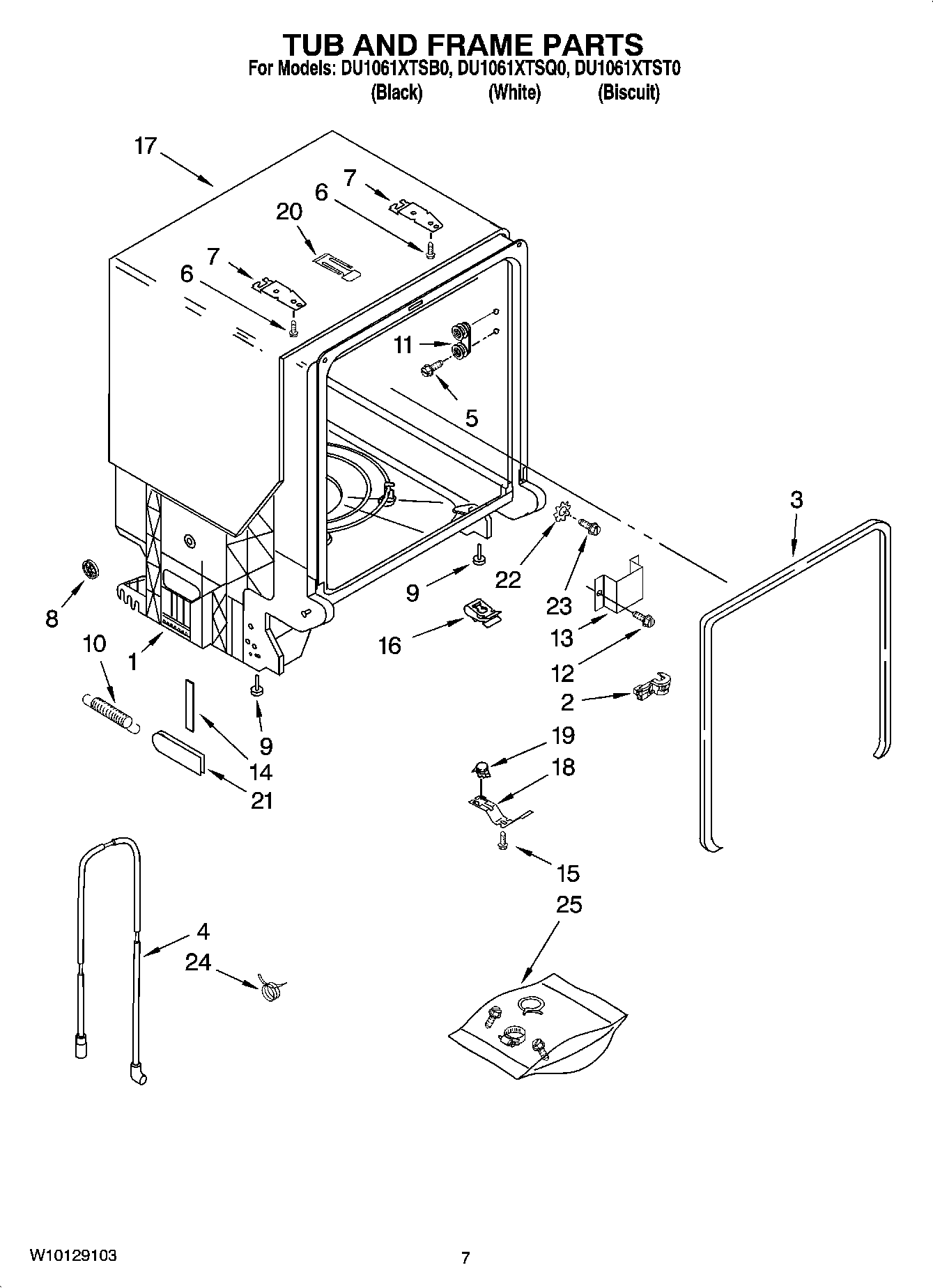

DU1061XTSB0 07 – TUB AND FRAME PARTS

Products

Position	Product
1	W10413848 Whirlpool Dishwasher Tub
2	W11384788 Whirlpool Dishwasher Relief Strainer
3	W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4	WPW10358302 Whirlpool Dishwasher Drain Hose
5	W10817436 Whirlpool Screw
6	WP308685 Whirlpool Microwave Screw
7	WP8269145 Whirlpool Dishwasher Mounting Bracket
8	WP8269831 Whirlpool Dishwasher Wheel
9	8193716 Whirlpool Leveling Leg
10	WPW10337934 Whirlpool Spring Assembly
11	WP8270016 Whirlpool Dishwasher Tub Wheel
12	WP3400892 Whirlpool Dishwasher Screw
13	WP8268991 Whirlpool Dishwasher Cover Assembly
14	WP8268961 Whirlpool Friction Pad
15	WP304231 Whirlpool Dishwasher Screw
16	WP8269016 Whirlpool Clip Assembly
17	W11086533 Whirlpool Dishwasher Shield
18	W10539489 Whirlpool Dishwasher Bracket-Stat
19	WP661566 Whirlpool High Limit Thermostat
20	WP8580309 Whirlpool Dishwasher Strike
21	WP8268990 Whirlpool Dishwasher Door Spring Bushing
22	WP3378128 Whirlpool Dishwasher Washer
23	WP3400014 Whirlpool Dishwasher Screw
24	WP356138 Whirlpool Hose Clamp
25	WPW10292170 Whirlpool Dishwasher Miscellaneous Parts
