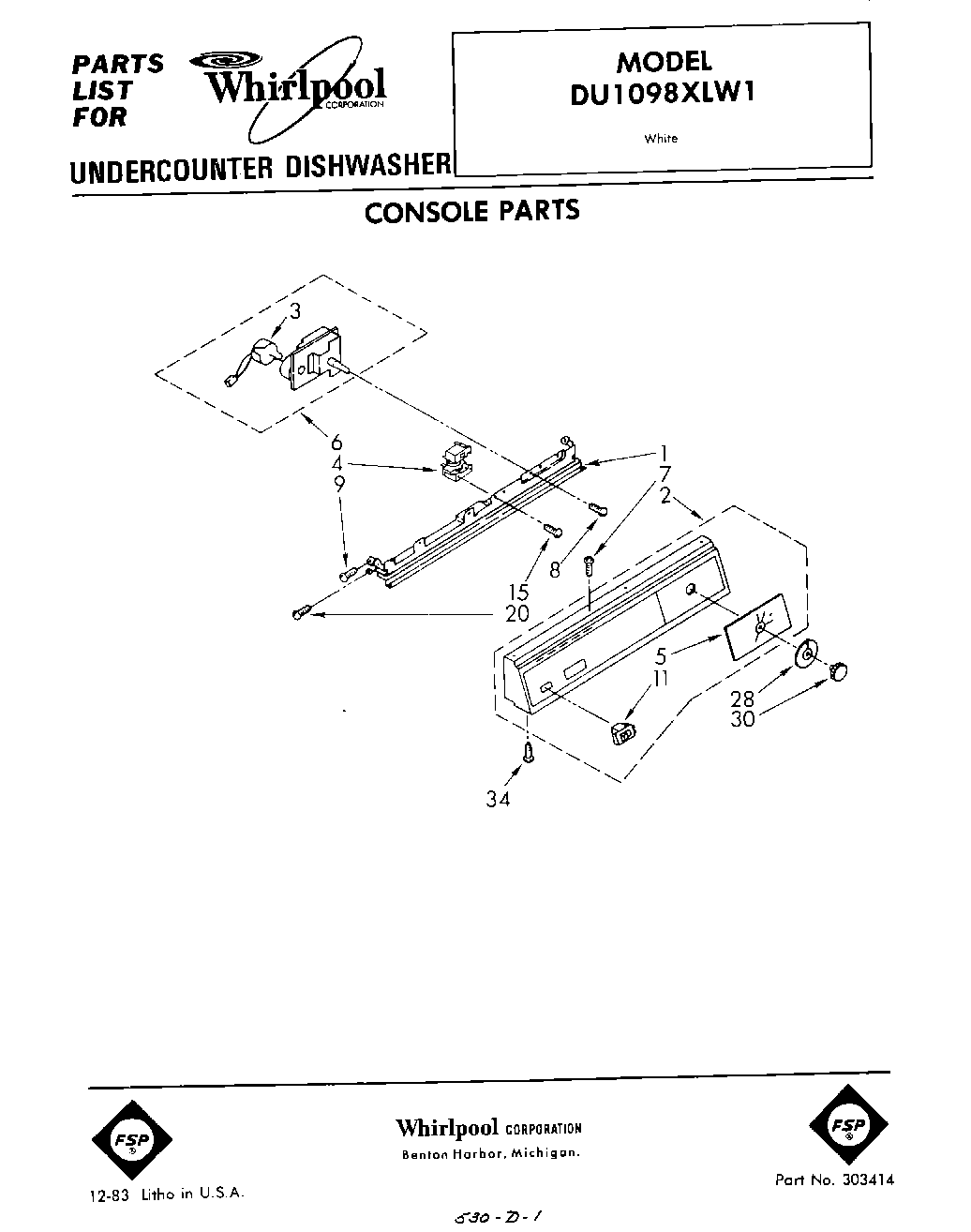

| 1 | Bracket, Console |
| 2 | Panel, Escutcheon |
| 3 | Motor, Timer |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 4 | Relay, Start (Alternate) |
| 5 | Insert, Console |
| 6 | Timer |
| 7 | W10759522 Whirlpool Screw |
| 8 | Screw (2) |
| 9 | WP302868 Whirlpool Screw |
| 11 | WP4314961 Whirlpool Lite Switch |
| 15 | WP489128 Whirlpool Refrigerator Screw |
| 20 | Screw, 8-18 x 5/8 |
| 28 | Dial, Indicator |
| 30 | Knob |
| 34 | WP487353 Whirlpool Refrigerator Screw |
