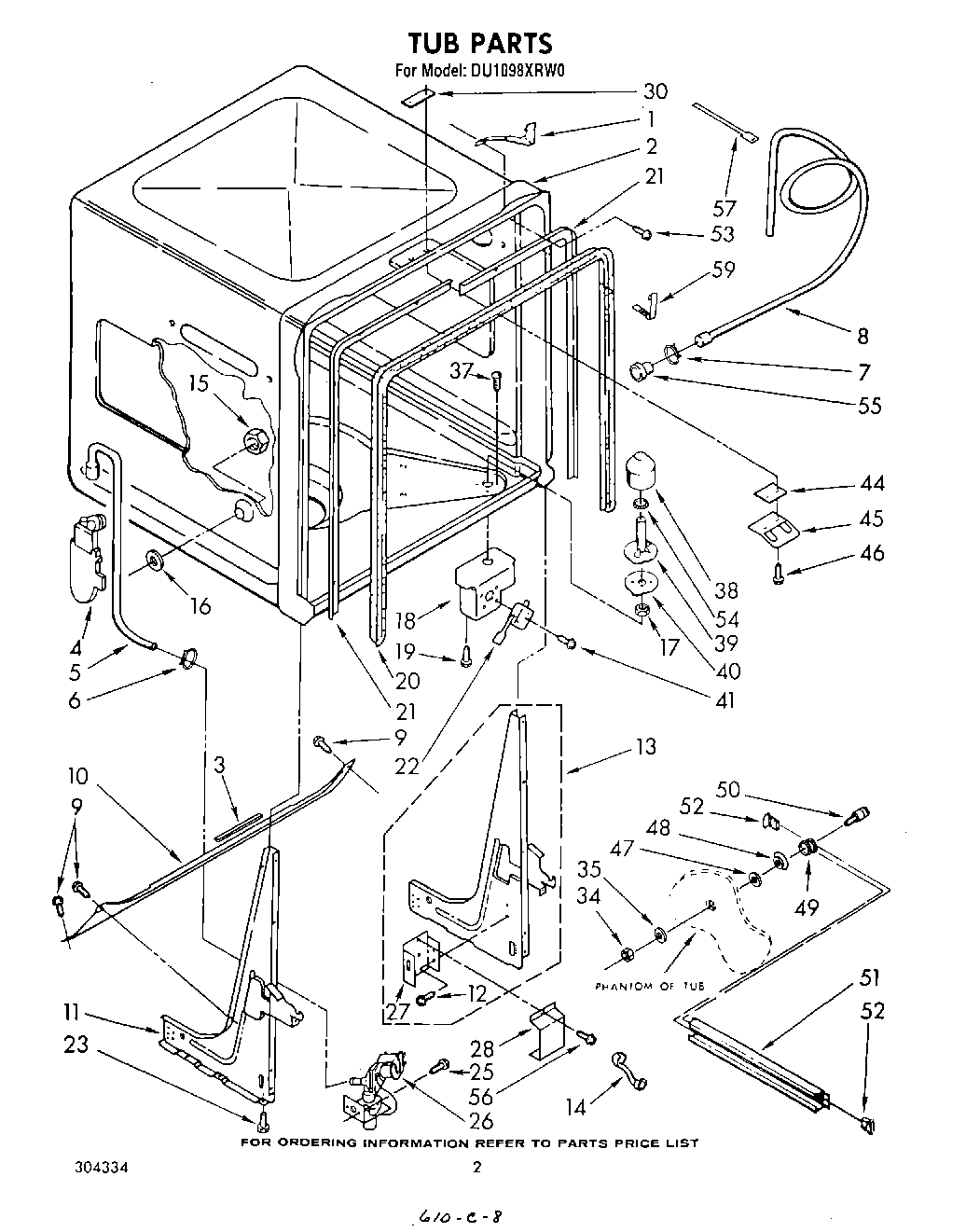

DU1098XRW0 02 – TUB , LITERATURE AND OPTIONAL

DU1098XRW0 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

DU1098XRW0 02 – TUB , LITERATURE AND OPTIONAL

Products

Position	Product
	WPL LIT304671
	WPL LIT304274
	WPL LIT304334
	WPL LIT303314
1	Bracket, Mounting (2)
2	Tub Assembly
3	Edge Protector
4	Inlet, Water
5	Hose, Inlet
6	WP596669 Whirlpool Hose Clamp
7	WP356138 Whirlpool Hose Clamp
8	Hose, Drain
9	WP302868 Whirlpool Screw
10	Brace
11	Leg & Hinge Assembly, L.H.
12	Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13	Leg & Hinge Assembly, R.H.
14	Relief, Strain
15	Nut, 7/18-16
16	Gasket
17	Nut
18	Bracket, Overflow Switch
19	Screw, 8 x 1/2 (3)
20	Gasket (Alternate)
20	Gasket (Alternate)
21	Retainer (R.H.)
21	Retainer (L.H.)
22	Switch, Pressure (Alternate)
22	Switch, Pressure (Alternate)
22	Retainer-Main Top (2 Required)
23	8193716 Whirlpool Leveling Leg
26	Valve, Water Inlet (Alternate)
26	Valve, Water Inlet (Alternate)
27	Box, Terminal
28	300068 Whirlpool Dishwasher Cover Assembly
30	Nut, Twin Spring
34	Nut, Lock
35	Washer (8)
37	WP488729 Whirlpool Refrigerator Door Screw
38	Float
39	Standpipe, Overflow
40	Gasket, Overflow
41	Screw, 4-40 x 3/4
44	Shim
45	Strike
46	WP308685 Whirlpool Microwave Screw
47	Washer (8)
48	Washer, Cup
49	Roller, Rack Track
50	Screw, Shoulder (8)
51	Track (2)
52	Endcap, Front or Rear (2)
53	Screw, 8-18 x 5/8 (10)
54	Gasket, Standpipe (2)
55	WPL 301656
56	WP90767 Whirlpool Screw
57	WPW10144763 Whirlpool Tie Wire
59	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
59	Golden Harvest
59	799344 Whirlpool Refrigerator Paint
59	350942 Whirlpool Spray Paint
59	72017 Whirlpool Appliance Touch-Up Paint White
59	WP72107 Whirlpool Touchup
59	Golden Harvest (Uncut)
59	Enamel, Black (1 Qt. Uncut)
59	Kit, Epoxy Patch (White)
59	Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
59	W10840471 Whirlpool Dishwasher Touch Up
59	Leveler (Thinner) (2oz.)
59	350930 Whirlpool White Spray Paint
59	Clip, Gasket (2)
59	72032 Whirlpool Touch Up Paint Black
59	285006 Whirlpool Spray
59	350956 Whirlpool Spray Assembly
