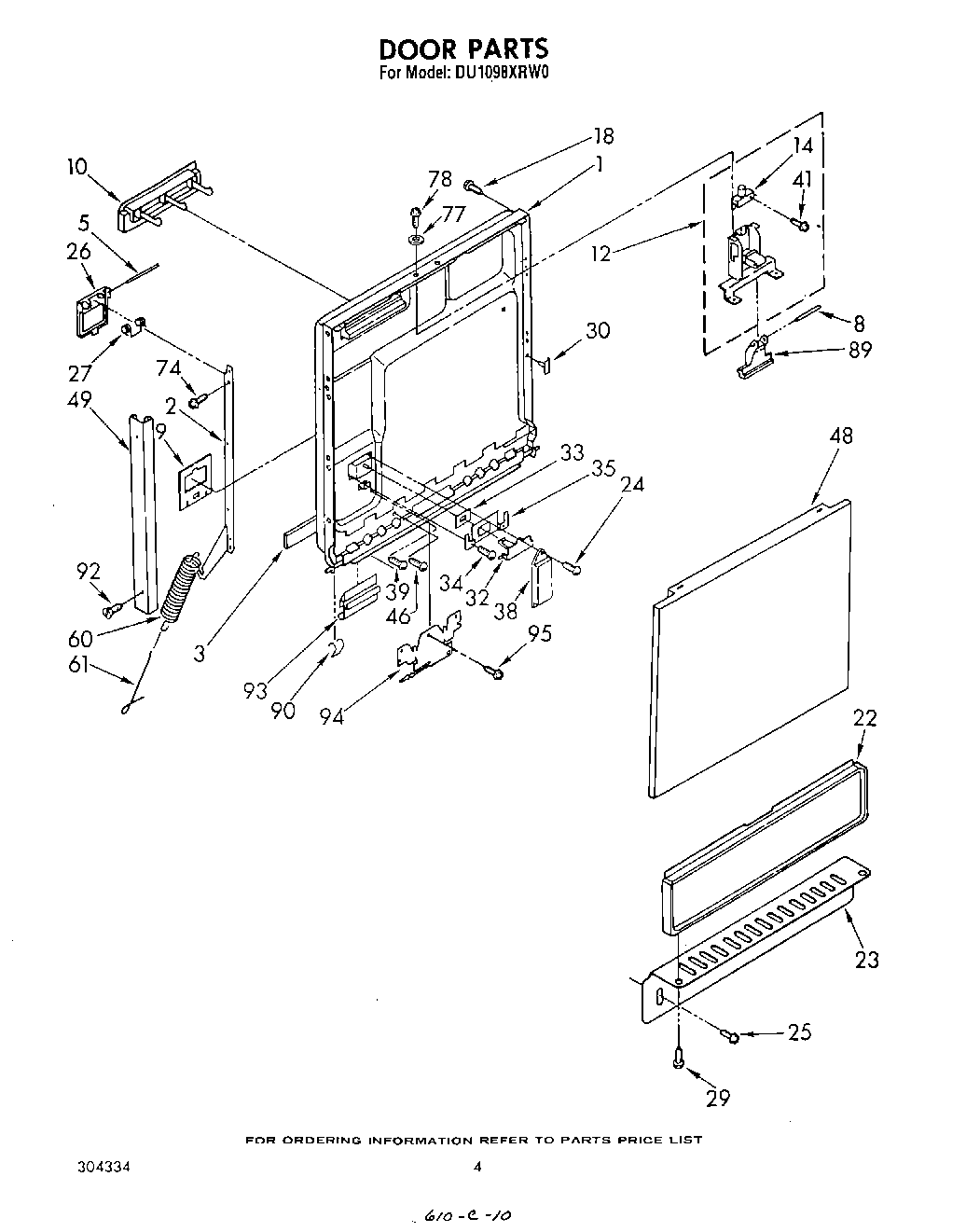

DU1098XRW0 03 – DOOR

Products

PositionProduct
1Door, Inner (Includes Illus. 4)
2Support, Door (R.H.)
2Support Door (L.H.)
3Gasket, Door
54387043 Whirlpool Door Latch Kit
8Pin, Pivot
9Barrier
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
18WP488729 Whirlpool Refrigerator Door Screw
22Panel, Access
23Plate, Toe
25WP90767 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
29WP302868 Whirlpool Screw
30Ground Clip (2)
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
41Screw, 6-32 x 1
48Panel, Front
49Trim, Door (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
89Lever, Release
90Clip, Wire
92302251 Whirlpool Dishwasher Screw
93Retainer, Clip
94Shield, Harness
95Screw, 8-18 x 5/8
