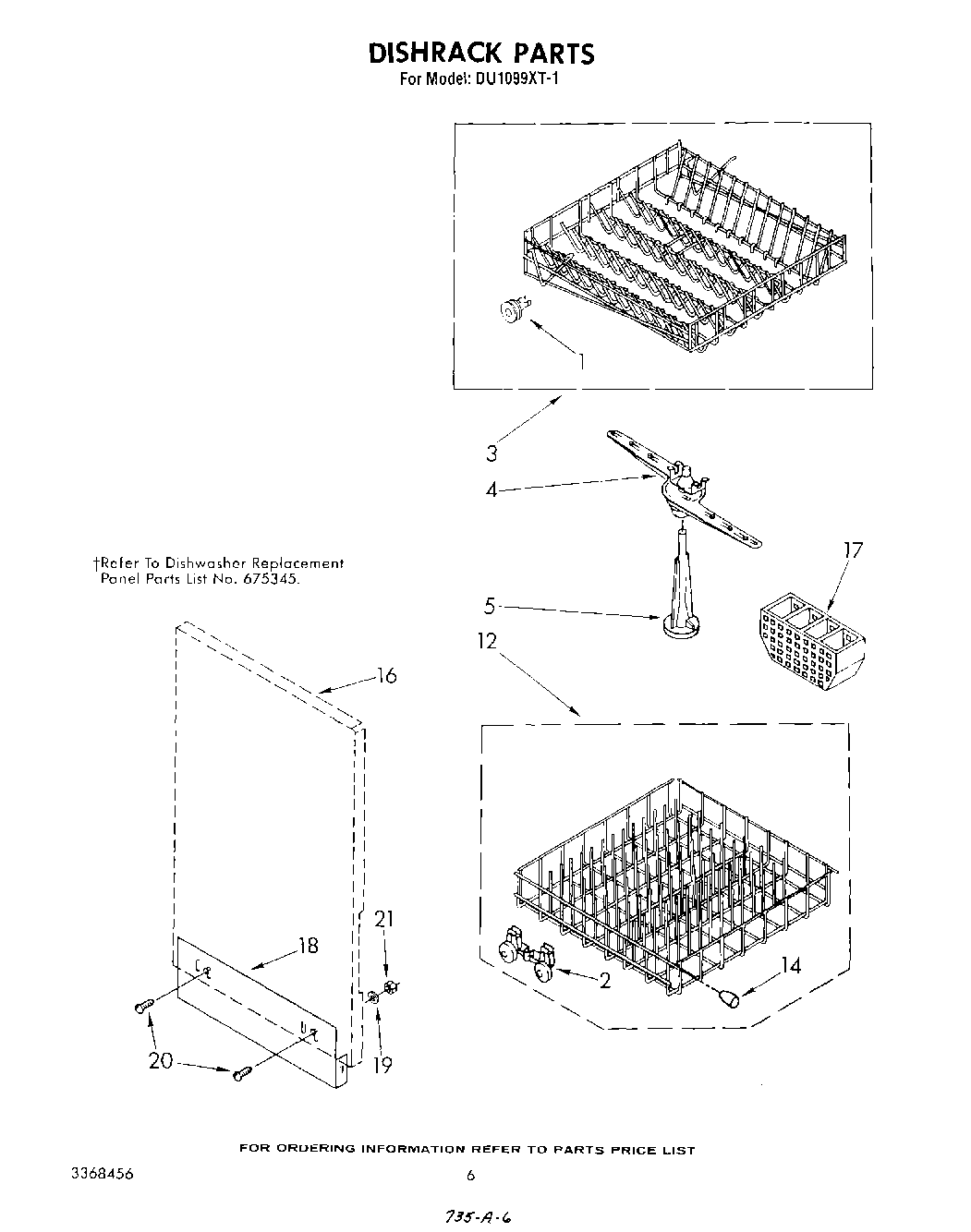

DU1099XT1 04 – DISHRACK

Products

PositionProduct
1Wheel & Axle Assembly (4)
24317933 Whirlpool Lower Rack Wheels
3W11169039 Whirlpool Dishwasher Dish Rack
4WP304204 Whirlpool Dishwasher Spray Arm
5Tower
12W10311986 Whirlpool Dishwasher Lower Rack
14Bumper
16Panel, Reversible Side
17WP8539066 Whirlpool Dishwasher Basket Ware
18Panel, Lower Side
19W11089212 Whirlpool Washer
20Screw, Lower Side Panel Mounting (2)
21W10080180 Whirlpool Nut
