DU1099XT2 02 – TUB , LITERATURE AND OPTIONAL

DU1099XT2 02 – TUB , LITERATURE AND OPTIONAL

Written by

in

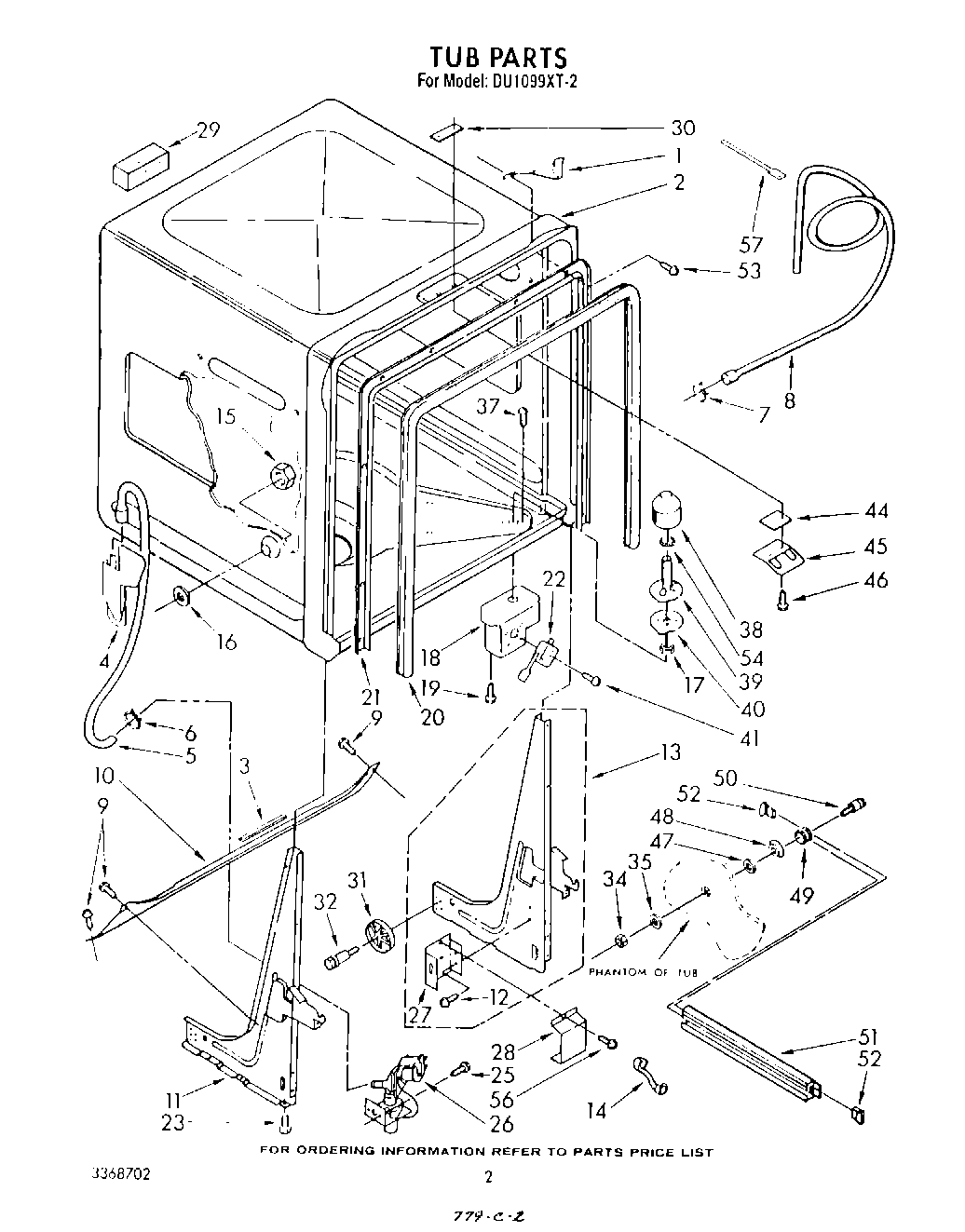

DU1099XT2 02 – TUB , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT3368702
WPL LIT3368593
WPL LIT3367228
WPL LIT3368022
1Bracket, Mounting (2)
2tub assembly
3Edge Protector
4Inlet, Water
5Hose, Inlet
6WP596669 Whirlpool Hose Clamp
7WP356138 Whirlpool Hose Clamp
8Hose, Drain
9WP302868 Whirlpool Screw
10Brace
11Leg & Hinge Assembly, L.H.
12Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1)
13Leg & Hinge Assembly, R.H.
14Relief, Strain
15Nut, 7/18-16
16Gasket
17Nut
18Bracket, Overflow Switch
19Screw, 8 x 1/2 (3)
20Gasket
21Retainer, Gasket
22Switch, Pressure (Alternate)
22Switch, Pressure
22Retainer-Main Top (2 Required)
22Switch, Pressure (Alternate)
238193716 Whirlpool Leveling Leg
26Valve, Water Inlet (Alternate)
26Valve, Water Inlet
26Valve, Water Inlet (Alternate)
27Box, Terminal
28300068 Whirlpool Dishwasher Cover Assembly
29Block, Foam (2)
30Nut, Twin Spring
31WP302819 Whirlpool Dishwasher Wheel
32Screw, Shoulder
34Nut, Lock
35Washer (8)
37WP488729 Whirlpool Refrigerator Door Screw
38Float
39Standpipe, Overflow
40Gasket, Overflow
41Screw, 4-40 x 3/4
44Shim
45Strike
46WP308685 Whirlpool Microwave Screw
47Washer (8)
48Washer, Cup
49Roller, Rack Track
50Screw, Shoulder (8)
51Track (2)
52Endcap, Front or Rear (2)
53Screw, 8-18 x 5/8 (10)
54Gasket, Standpipe (2)
56WP90767 Whirlpool Screw
57Golden Harvest
5772110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
57Kit, Epoxy Patch (White)
57WP72107 Whirlpool Touchup
57799344 Whirlpool Refrigerator Paint
5772017 Whirlpool Appliance Touch-Up Paint White
57350956 Whirlpool Spray Assembly
57350942 Whirlpool Spray Paint
57Golden Harvest (Uncut)
57Enamel, Black (1 Qt. Uncut)
57WPW10144763 Whirlpool Tie Wire
57285006 Whirlpool Spray
57350930 Whirlpool White Spray Paint
57Leveler (Thinner) (2oz.)
57Vinyl Touch Up (Blue)
57Tine Tip Repair Kit (Blue-Enough For Two Complete Dishracks)
5772032 Whirlpool Touch Up Paint Black
