DU1099XT2 03 – DOOR

DU1099XT2 03 – DOOR

Written by

in

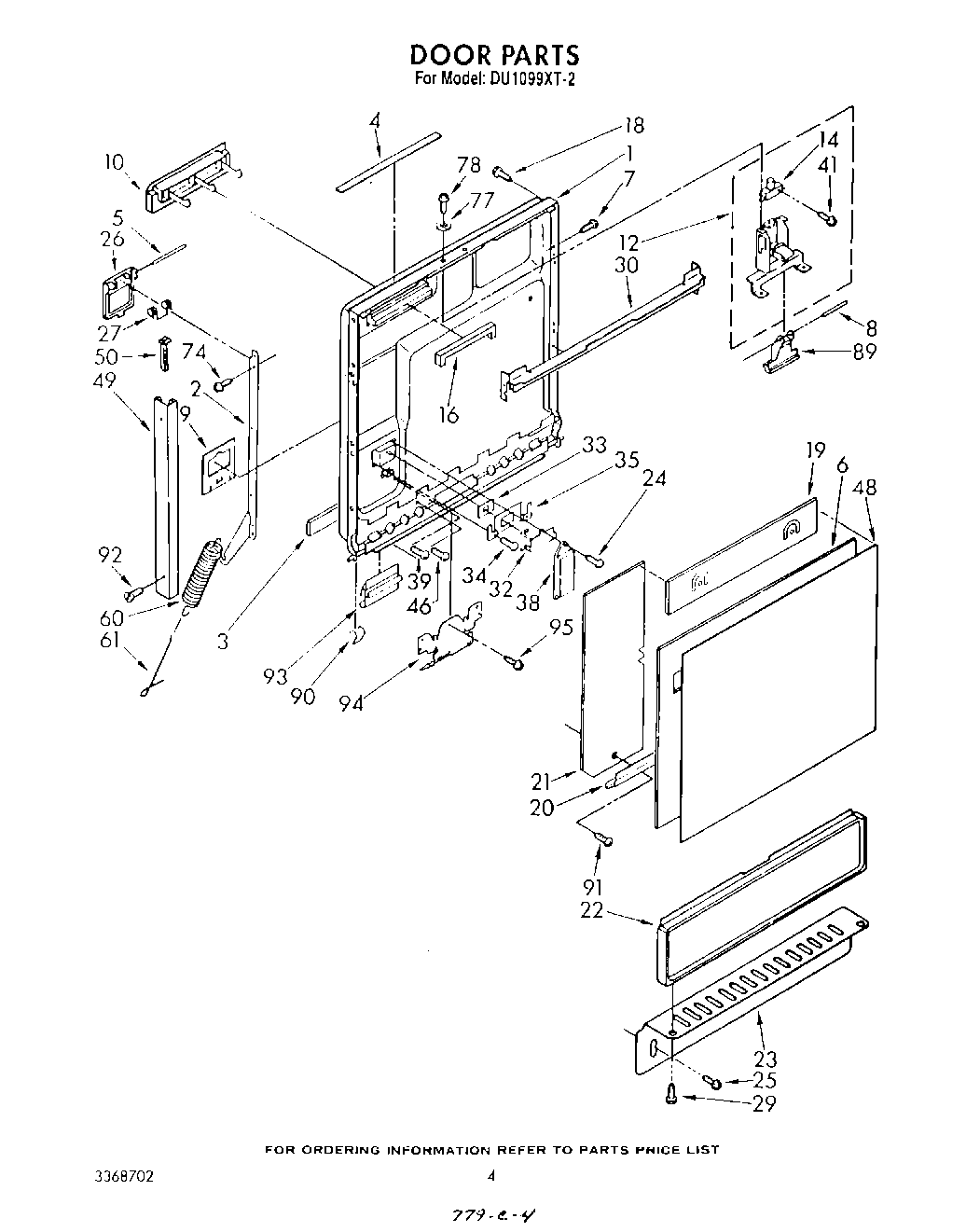

DU1099XT2 03 – DOOR

Products

PositionProduct
1Door, Inner
2Support, Door (R.H.)
2Support, Door (L.H.)
3Gasket, Door
4Label, Users Guide
54387043 Whirlpool Door Latch Kit
6Spacer, Panel
7WP489069 Whirlpool Compactor Screw
8Pin, Pivot
9Barrier
10Screen, Vent
12Latch Assembly
14Switch, Interlock (Alternate)
14Switch, Interlock
14Switch, Interlock (Alternate)
14Switch, Interlock (Alternate)
16Baffle
18Screw, 8 x 1-7/8 (2)
19Barrier, Console
20Edging, Panel
21Barrier, Door
22WP3367793 Whirlpool Black Access Panel
23Plate, Toe
25WP90767 Whirlpool Screw
27WP8066018 Whirlpool Spring Assembly
29WP302868 Whirlpool Screw
30Rail, Support
32Lever, Catch
33Seal, Lever
35Retainer
38Actuator
39WP304231 Whirlpool Dishwasher Screw
41Screw, 6-32 x 1
48Panel, Front
49Trim, Door (L.H.)
49Trim, Door R.H.
50Clip, Trim Guard (2)
60675611 Whirlpool Spring Assembly
61WP716401 Whirlpool Dishwasher Retainer
74WP488627 Whirlpool Refrigerator Screw
77Washer (2)
89WPL 304408
90Clip, Wire
91W11693756 Whirlpool Screw Assembly
92Screw, 8 x 1/2 (4)
93WPL 3367720
94Shield, Harness
95Screw, 8-18 x 5/8
