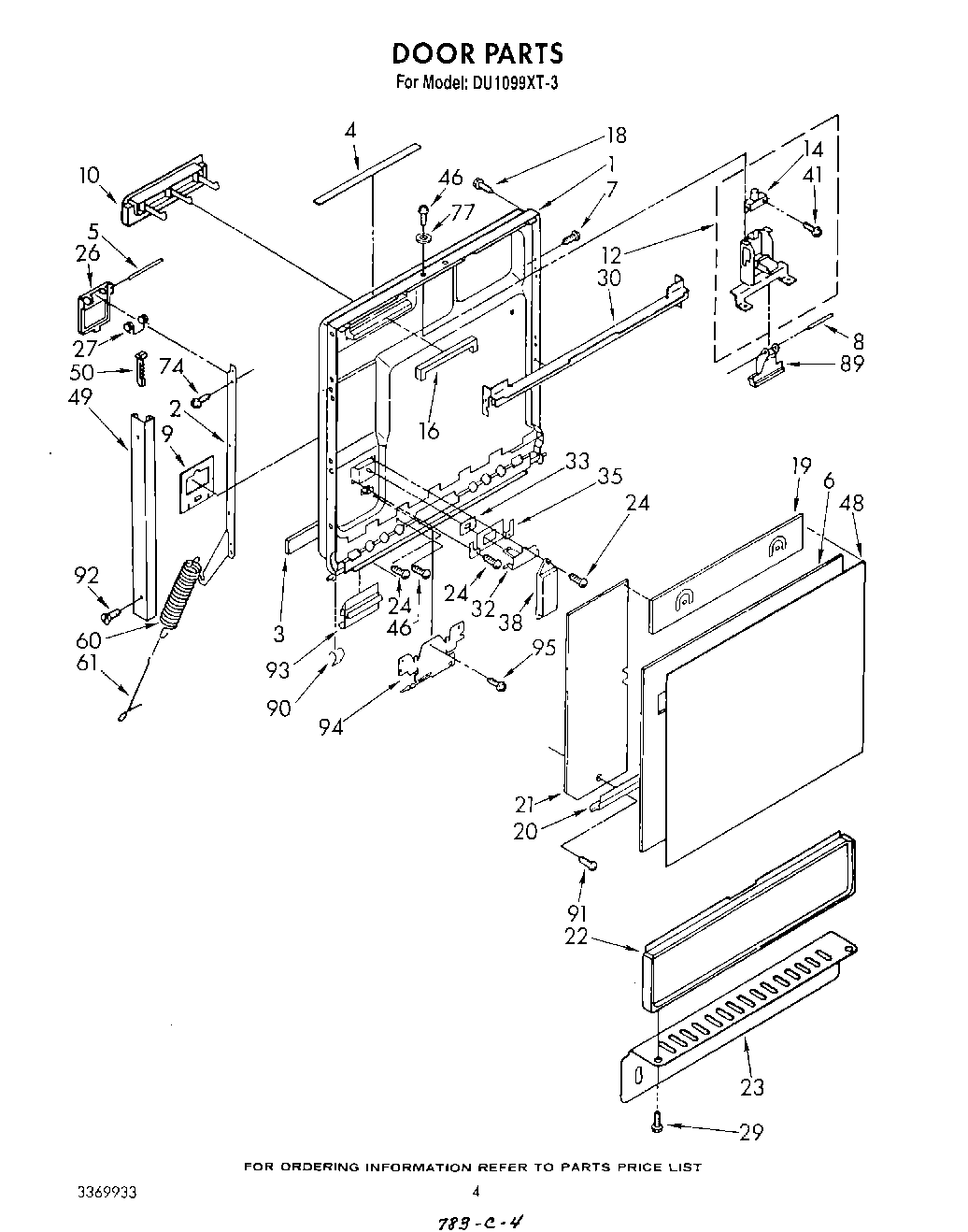

DU1099XT3 03 – DOOR

Products

Position	Product
1	Door, Inner
2	Support, Door (L.H.)
2	Support, Door (R.H.)
3	Gasket, Door
4	Label, Users Guide
5	4387043 Whirlpool Door Latch Kit
6	Spacer, Panel
7	WP489069 Whirlpool Compactor Screw
8	Pin, Pivot
9	Barrier
10	Screen, Vent
12	Latch Assembly
14	Switch, Interlock
16	Baffle
18	Screw, 8 x 1-7/8 (2)
19	Barrier, Console
20	Edging, Panel
21	Barrier, Door
22	WP3367793 Whirlpool Black Access Panel
23	Plate, Toe
24	WP304231 Whirlpool Dishwasher Screw
27	WP8066018 Whirlpool Spring Assembly
29	WP302868 Whirlpool Screw
30	Rail, Support
32	Lever, Catch
33	Seal, Lever
35	Retainer
38	Actuator
41	Screw, 6-32 x 1
46	WP90767 Whirlpool Screw
48	Panel, Front
49	Trim, Door L.H.
49	Trim, Door R.H.
50	Clip, Trim Guard (2)
60	675611 Whirlpool Spring Assembly
61	WP716401 Whirlpool Dishwasher Retainer
74	WP488627 Whirlpool Refrigerator Screw
77	Washer (2)
89	WPL 304408
90	Clip, Wire
91	W11693756 Whirlpool Screw Assembly
92	Screw, 8 x 1/2 (4)
93	WPL 3367720
94	Shield, Harness
95	Screw, 8-18 x 5/8
