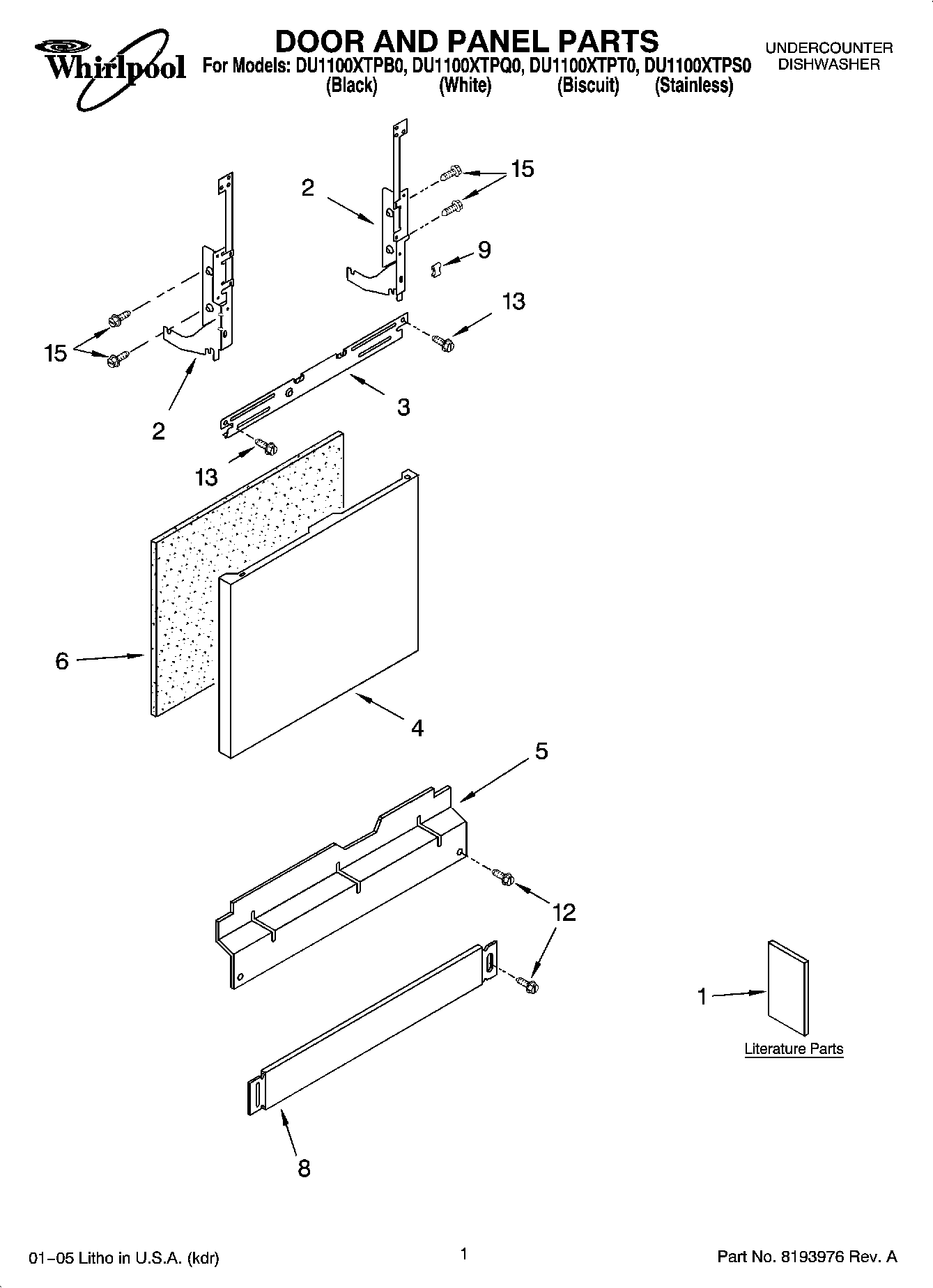

DU1100XTPB0 01 – DOOR AND PANEL PARTSadmin2025-04-26T11:59:59+00:00DU1100XTPB0 01 – DOOR AND PANEL PARTS ProductsPositionProduct1English/French1Guide, Use & Care Tech Sheet1Instructions, Installation1Energy Guide2W11613573 Whirlpool Door Hinge2W11613572 Whirlpool Dishwasher Door Hinge3Stiffener, Door4W10301571 Whirlpool Dishwasher Panel4W10301577 Whirlpool Outer Door Panel4W10384707 Whirlpool Dishwasher Panel4Panel Front (White)5W10871198 Whirlpool Dishwasher Panel5W10909066 Whirlpool Dishwasher Panel6WPW10073520 Whirlpool Dishwasher Insulation Pad8WPW10586591 Whirlpool Dishwasher Toe Panel8W10909064 Whirlpool Dishwasher Black Access Panel8Toe Panel (Biscuit)9Clip, Grounding12WPW10503549 Whirlpool Dishwasher Retainer Clip12WPW10503550 Whirlpool Dishwasher Retainer12WP302868 Whirlpool Screw13SCREW15Screw 10-16, Hi-Lo (4)
