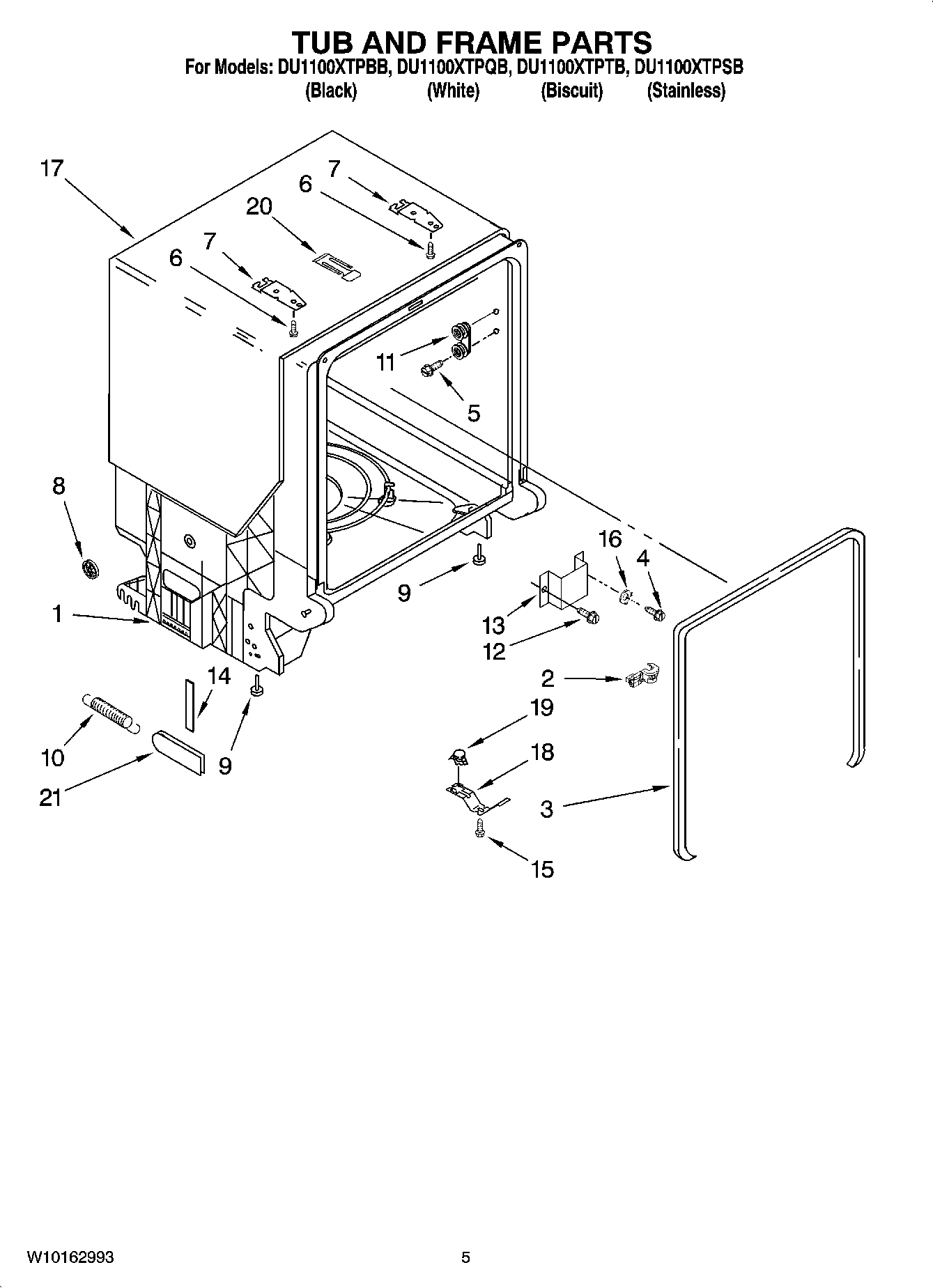

DU1100XTPSB 05 – TUB AND FRAME PARTS

DU1100XTPSB 05 – TUB AND FRAME PARTS

Written by

in

DU1100XTPSB 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W10413848 Whirlpool Dishwasher Tub
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WP3400014 Whirlpool Dishwasher Screw
5W10817436 Whirlpool Screw
6WP308685 Whirlpool Microwave Screw
7WP8269145 Whirlpool Dishwasher Mounting Bracket
8WP8269831 Whirlpool Dishwasher Wheel
98193716 Whirlpool Leveling Leg
10WPW10337934 Whirlpool Spring Assembly
11WP8270016 Whirlpool Dishwasher Tub Wheel
12WP3400892 Whirlpool Dishwasher Screw
13WP8268991 Whirlpool Dishwasher Cover Assembly
14WP8268961 Whirlpool Friction Pad
15WP304231 Whirlpool Dishwasher Screw
16WP3378128 Whirlpool Dishwasher Washer
17W11086533 Whirlpool Dishwasher Shield
18W10539489 Whirlpool Dishwasher Bracket-Stat
19WP661566 Whirlpool High Limit Thermostat
20WP8580309 Whirlpool Dishwasher Strike
21WP8268990 Whirlpool Dishwasher Door Spring Bushing
