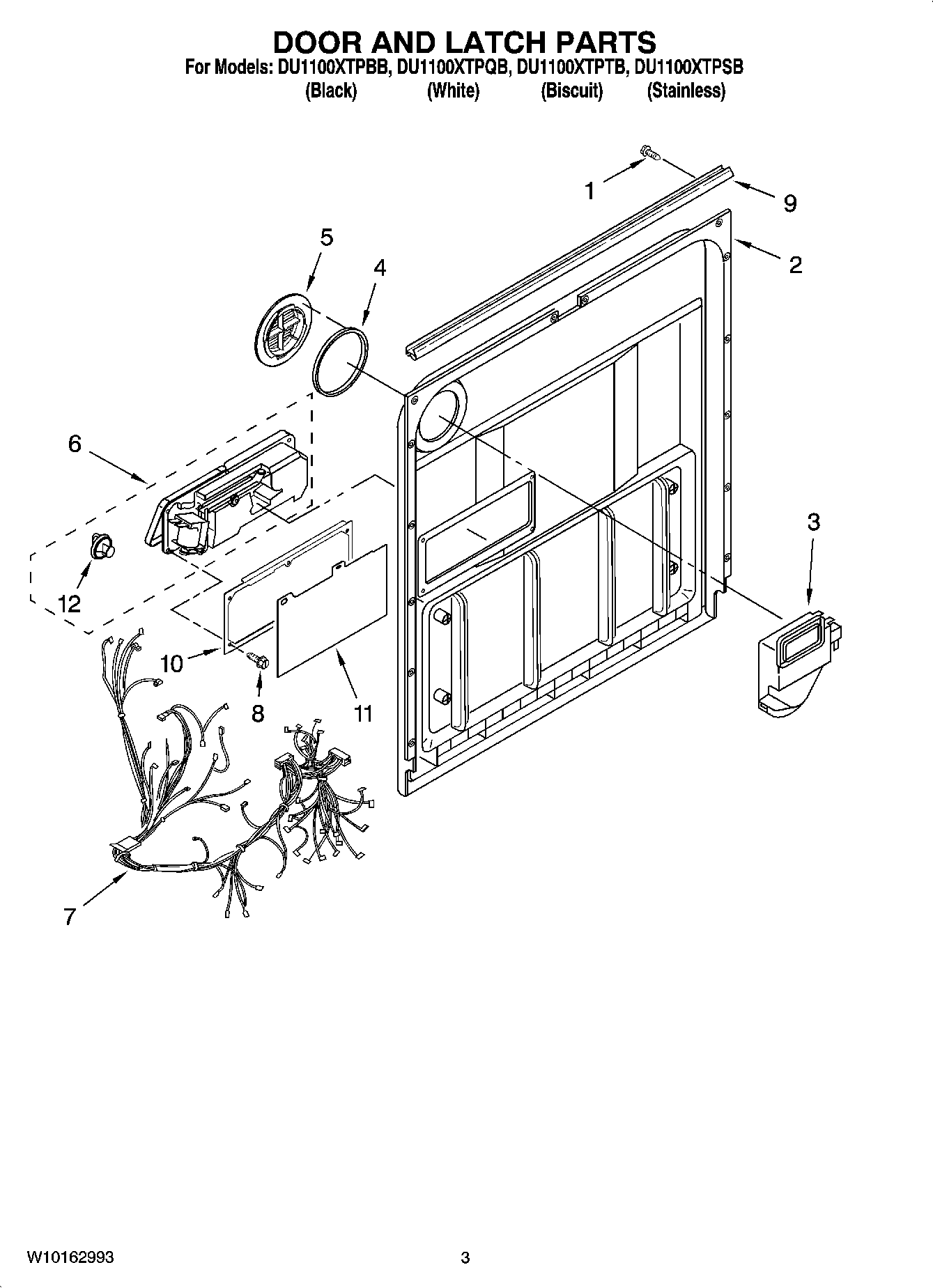

DU1100XTPTB 03 – DOOR AND LATCH PARTS

DU1100XTPTB 03 – DOOR AND LATCH PARTS

Written by

in

DU1100XTPTB 03 – DOOR AND LATCH PARTS

Products

PositionProduct
1WPW10348409 Whirlpool Screw
2WP8269311 Whirlpool Dishwasher Inner Door
3WP8558980 Whirlpool Dishwasher Vent
4WP8269259 Whirlpool Air Vent Gasket
5Deflector, Vent (Also Order Item 6)
6WPW10224428 Whirlpool Dishwasher Detergent and Rinse Aid Dispenser
7Wiring Harness Main
8WPW10177098 Whirlpool Dishwasher Screw
9WP8269296 Whirlpool Dishwasher Seal
10WPW10462232 Whirlpool Dishwasher Dispenser Mounting Bracket
11WP8531865 Whirlpool Dishwasher Door Shield
12WP8558307 Whirlpool Rinse Aid Dispenser Cap
