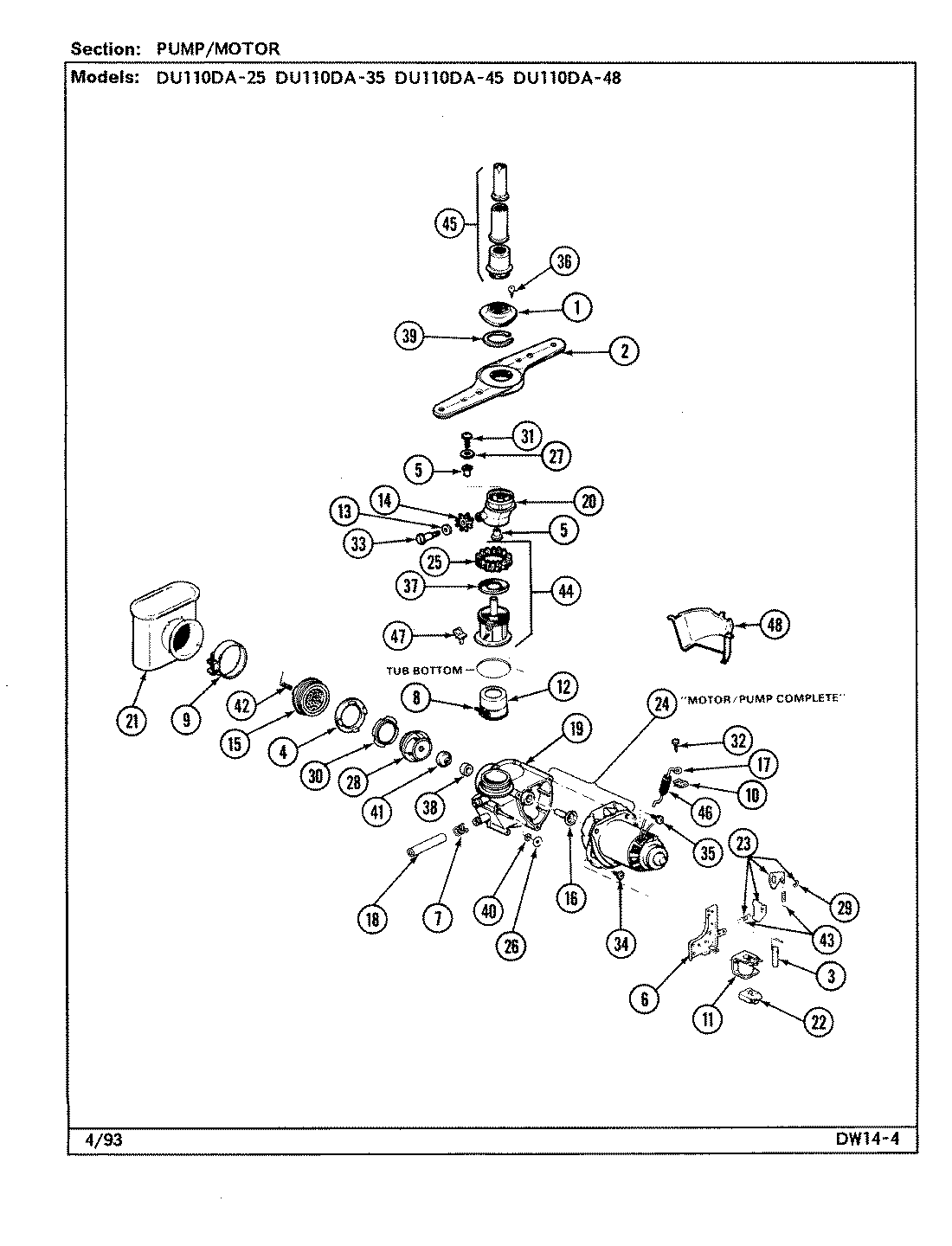

DU110DA-25 03 – PUMP & MOTOR ASSEMBLY
Written by
in
DU110DA-25 03 – PUMP & MOTOR ASSEMBLY
Products
Position
Product
1
MAY 2005-0001
2
MAY Y03000113
3
MAY 2025-0001
4
MAY 2085-0001
5
MAY 2095-0001
6
MAY 2145-0001
7
MAY 2235-0004
8
MAY 2235-0007
9
MAY 2235-0008
10
MAY 2385-0006
11
MAY 2250-0001
12
MAY 2260-0009
13
MAY 3280-0036
14
MAY 2451-0001
15
MAY 2465-0002
16
MAY 3050-0001
17
MAY 2510-0003
18
MAY 2530-0009
19
MAY 2535-0001
20
MAY 2540-0003
21
MAY 2575-0004
22
MAY 2590-0001
23
MAY Y03000032
24
MAY 2720-0001
25
MAY 2735-0032
26
MAY 2735-0041
27
MAY 3280-0001
28
MAY 2560-0003
29
MAY 2940-0001
30
MAY 2945-0001
31
MAY 3005-0044
32
MAY Y03000104
33
MAY 3005-0138
34
MAY 3005-0014
35
MAY 3005-0113
36
MAY 3005-0115
37
MAY 3010-0018
38
MAY 3010-0003
39
MAY 3010-0017
40
MAY 3010-0002
41
MAY 3010-0004
42
MAY 3070-0001
43
MAY 3070-0002
44
MAY 3130-0023
45
MAY 3175-0001
46
MAY 3235-0006
47
MAY 3255-0001
←
